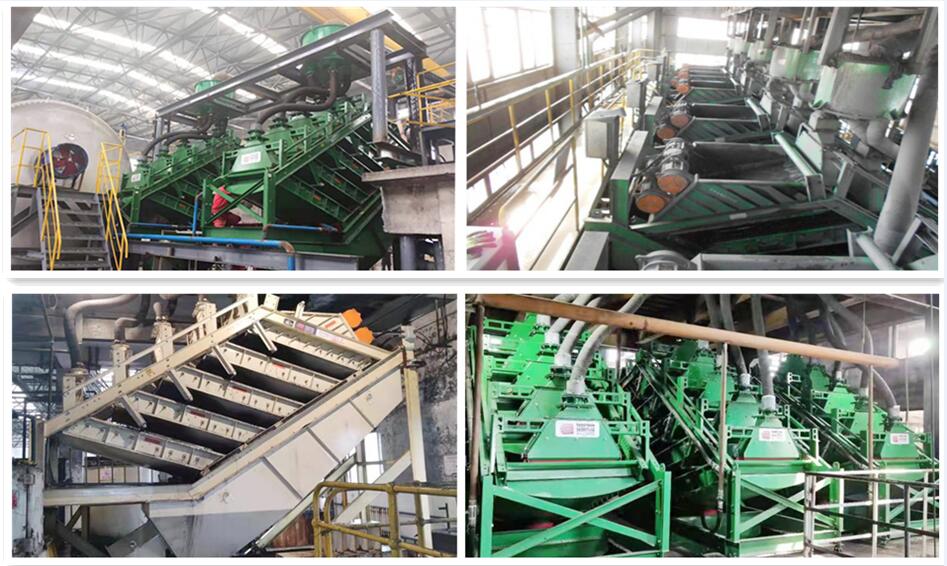

Multi-deck High Frequency Vibrating Fine Screen

Description of Multi-deck High Frequency Vibrating Fine Screen:

1. The main body of the  Derrick Multi-deck High Frequency Vibrating Fine Screen is riveted with rivets, which ensures the reliability and stability of the long-term operation of the equipment, and reduces the number of maintenance and labor.

2. The surface of the screen machine is treated with polyurea spraying technology as a whole, which increases the wear resistance and corrosion resistance of the equipment and prolongs the service life of the equipment.

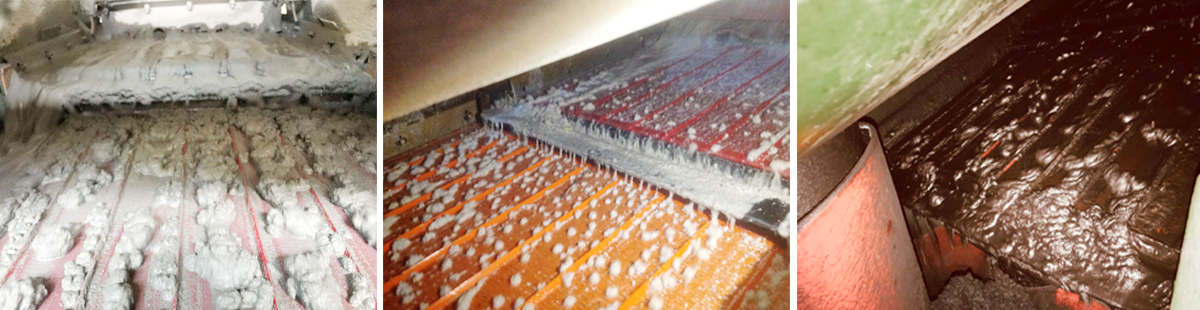

3. With the self-developed polyurethane fine screen (minimum 0.043mm) , the screen is not easy to be blocked, and five channels are fed at the same time, with large processing capacity and high screening efficiency.

We also provide circular vibrating screen, mineral vibrating screen, straight vibrating screen.

Advantage of Multi-deck High Frequency Vibrating Fine Screen:

1. Fine screen obtains larger screening capacity with smaller footprint

2. Greatly improve the mill capacity and greatly reduce the power consumption per unit of ore grinding

3. Minimize the over-powdering of useful minerals (mudification)

4. Improve metal recovery rate and reduce flotation reagent consumption

5. Successfully applied to the sorting of metallic and non-metallic minerals

Technical Specifications of Multi-deck High Frequency Vibrating Fine Screen:

Dimensions: Width 1500mmX Length 4892mmX4142mm

Machine weight: about 4 tons

Screening area: 7.3㎡

Screening inclination: 17.5°

Screening efficiency: 85~90%

Amplitude: 0.8~2mm

Maximum Capacity: 45T/h -120 T/h

Huatao Other Mineral Equipments Products: Rotary Screen, Flip-Flop Screen,Circular Vibrating Screen, Linear Vibrating Screen, 5 Decks Stack Sizer Vibrating Screen and so on.
