High Intensity Roller Magnetic Separator



Product Description

The High Intensity Roller Magnetic Separator is suitable for wet magnetic separation of magnetic materials such as magnetite, pyrrhotite, roasted ore, and ilmenite in mines; Mining Magnetic Separator is also used for the removal of mixed magnetic minerals from non-magnetic materials such as coal, non-metallic ores and building materials and the recovery of magnetic heavy medium in coal preparation operations; the concentration of low-concentration pulp in iron ore and the enrichment of magnetite; used to remove ferromagnetic impurities in non-metallic ores; Remove magnetic or weakly magnetic mineral processing and their conjoined bodies to prevent clogging of magnetic media. We also provide Flotation Machine, Magnetic Separator, Hydrocyclone.



Product Parameters

Type Roller Diameter(mm) Roller Length(mm)  Roller Speed(r/min) Feed Particle Size(mm) Throughput(t/h) Power(kw)
HT6012 600 1200 <35 2-0 10-20 1.5
HT6018 600 1800 <35 2-0 15-30 2.2
HT7518 750 1800 <35 2-0 20-45 2.2
HT9018 900 1800 <35 3-0 40-60 3
HT9021 900 2100 <35 3-0 45-60 3
HT9024 900 2400 <28 3-0 45-70 4
HT1018 1050 1800 <20 3-0 50-75 5.5
HT1021 1050 2100 <20 3-0 50-100 5.5
HT1024 1050 2400 <20 3-0 60-120 5.5
HT1218 1200 1800 <18 3-0 80-140 5.5
HT1224 1200 2400 <18 3-0 85-180 7.5
HT1230 1200 3000 <18 3-0 100-180 7.5
HT1530 1500 3000 <14 3-0 170-280 11

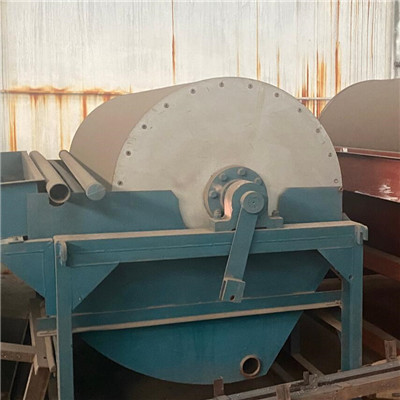

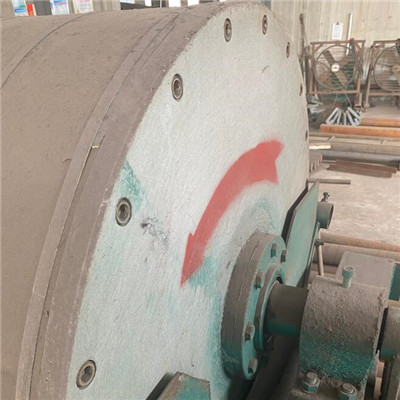

Details Photos

Magnetic Separator11Magnetic Separator12
