16.55 inch Electronic Rear View Mirror Unboxing
6 month ago
16.55 Inch Bus Truck Digital Rearview Mirror BSD Alarm Strong Light Suppression
2CH DVR Recorder Sony IMX307 1080P Camera Monitor Set

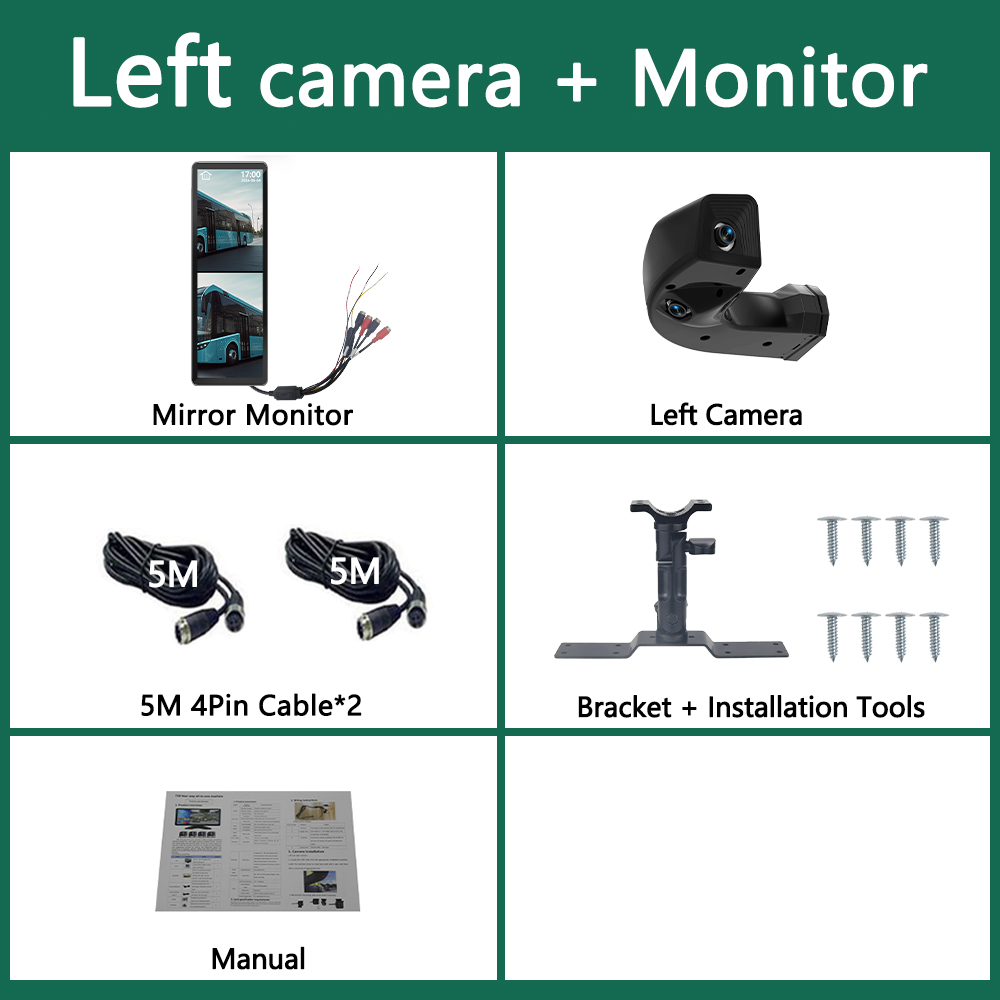

Left Camera Monitor Kit
Include:
1. 1x Dual-lens left camera
2. 1x Mirror monitor
3. 1x Strong load-bearing metal bracket
4. 2x 5 meters extension cables

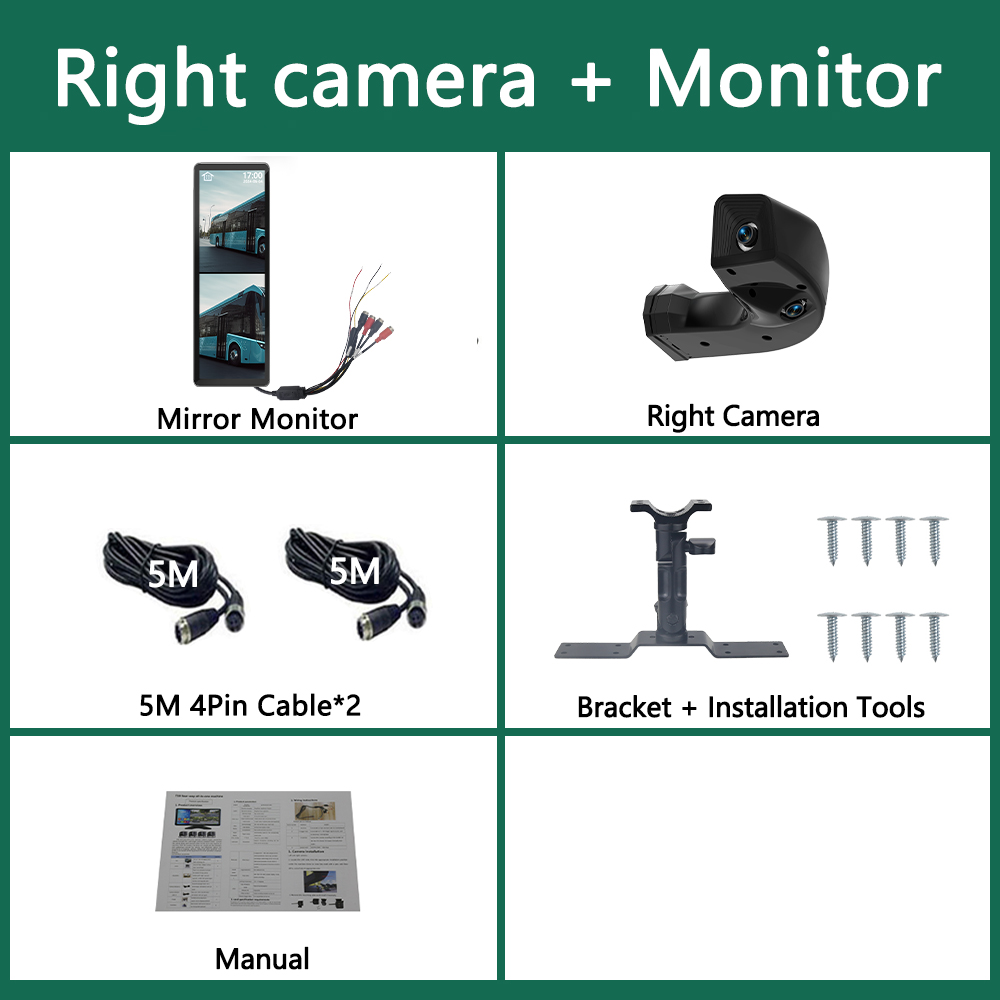

Right Camera Monitor Kit
Include:
1. 1x Dual-lens right camera
2. 1x Mirror monitor
3. 1x Strong load-bearing metal bracket
4. 2x 5 meters extension cables

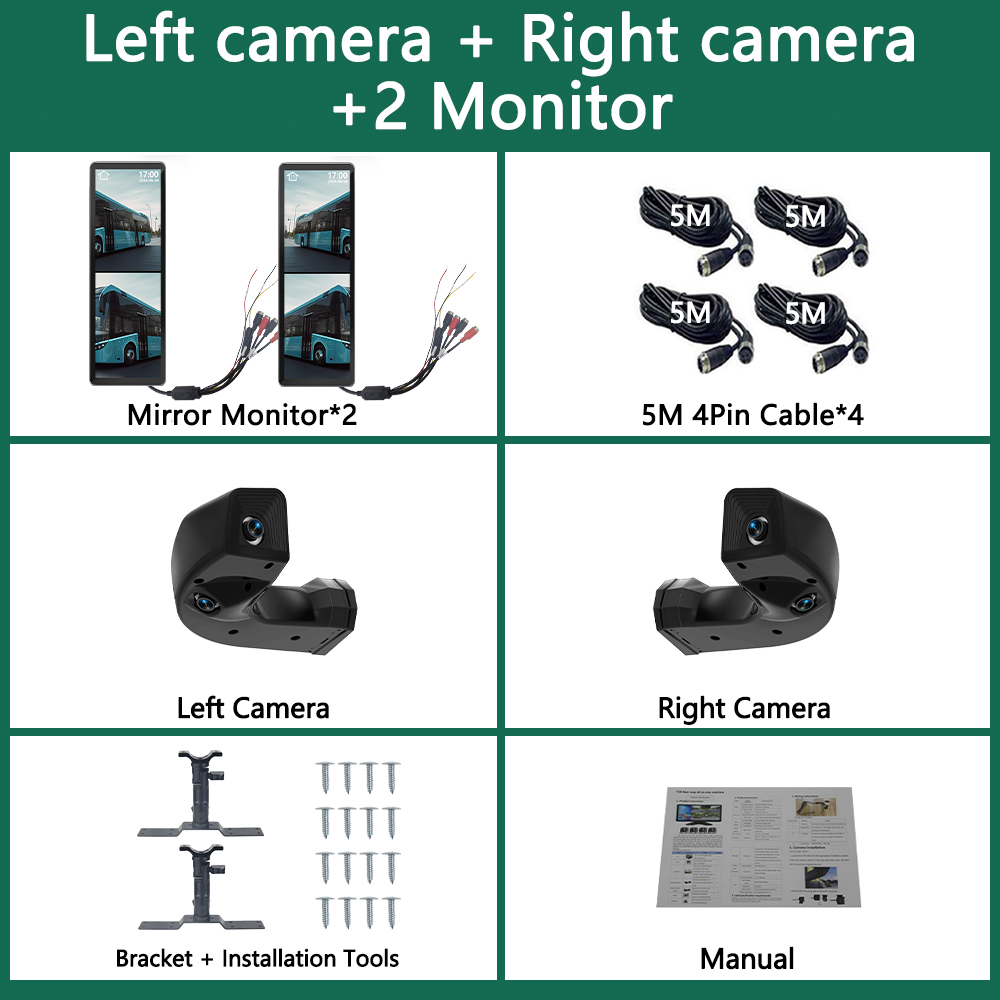

Left and Right Set
Include:
1. 1x Dual-lens left camera
2. 1x Dual-lens right camera
3. 2x Mirror monitor
4. 2x Strong load-bearing metal brackets
5. 4x 5 meters extension cables
Why Choose Electronic Rearview Mirror?
The electronic rearview mirror system integrates the functions of vehicle DVR, camera monitoring and BSD alarm. It supports
a larger viewing angle, higher night vision sensitivity, and is easier to adapt to complex weather conditions, which means broader
and clearer side vision and more professional in safeguarding driving safety than traditional rear-view mirrors.
Easy installation of DVR system

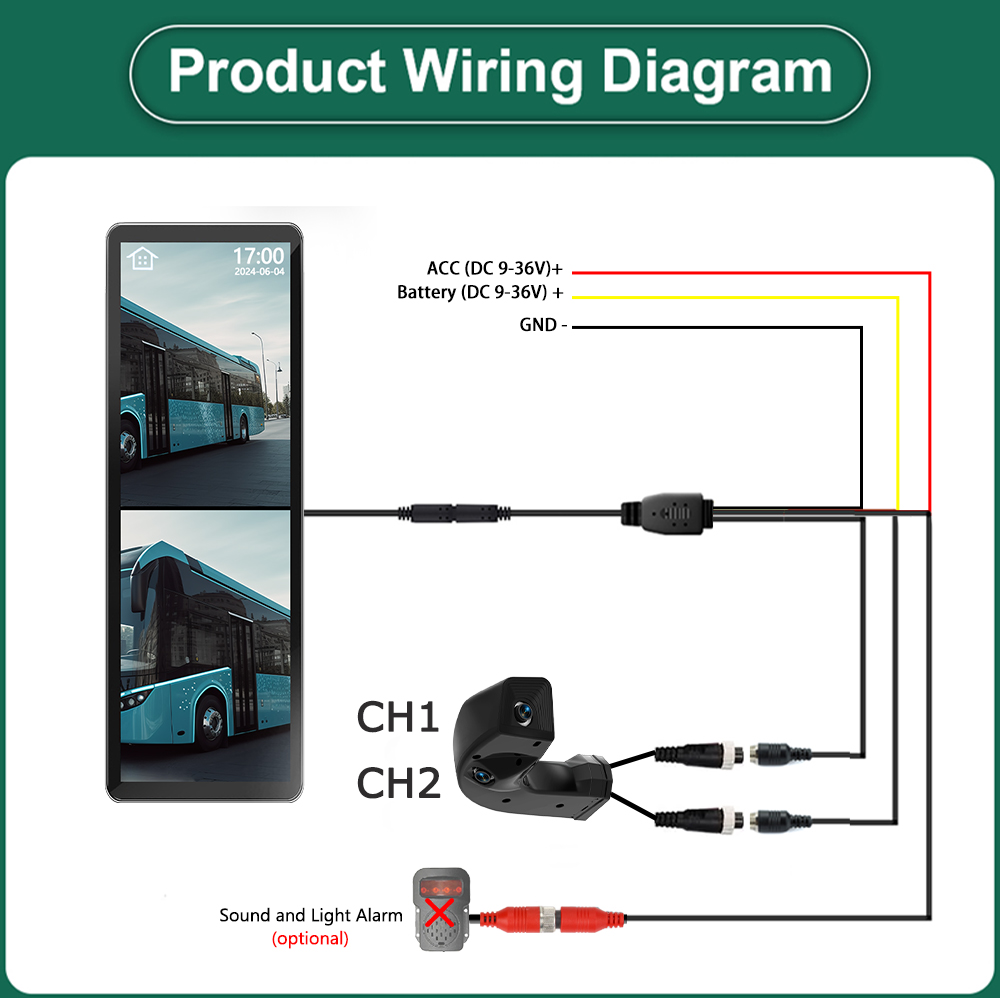

DVR Kit Connection Reference:
1. Connect red line to positive pole (+) of ACC power.
2. Connect yellow line to positive pole (+) of vehicle battery.
3. Connect black line to negative pole (-) of vehicle battery.
4. Connect CH1 to side rear lens.
5. Connect CH2 to side front lens.
6. Connect Red 4PIN connector to speaker alarm. (The speaker is not included.)
