Manual L Sealer and Shrink Tunnel
3 year ago

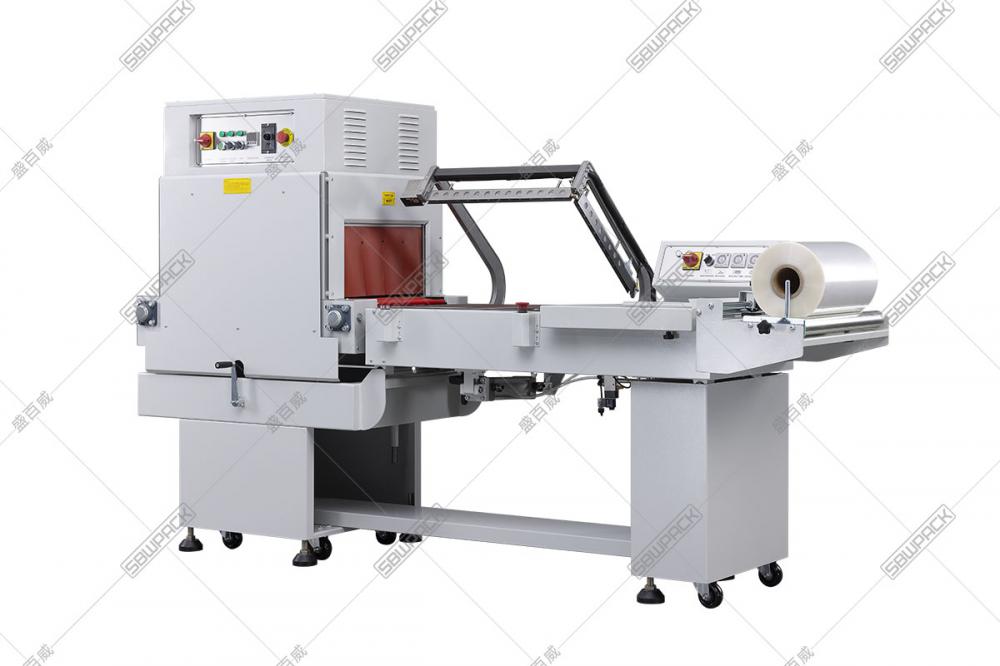

Pneumatic Combo L Bar Sealer and Shrink
Scope Of Application:
1. Pneumatic L Bar Sealer is suitable for the packing demands of the mass production in industries such like electronics, hardware, plastics, software, food, printing, pharmaceuticals, floors and other construction materials.
2. Applicable films for Pneumatic L Bar Combo Sealer: PVC/POF
Semi-auto Sealing And Shrinking Series Technical Features of Sealer:
1. Combo design of sealing and shrinking, compact and quite easy to move with castors.
2. Tefloncoated sealing wire in bakelite slots, making the seams straight, closed and unburnt.
3. Liftable sealing and shrinking platform is versatile for packing products in different heights.
4. Mis-cutting and overheating protection devices can effectively protect the products and operator.
Semi-auto Sealing And Shrinking Series Technical Features of Tunnel:
1. Stainless steel heating tubes and strong blowing motor ensure high heating efficiency, large air volume and uniform air circulation.
2. Solid metal rods wrapped by heat-resistance silicone tubes make the conveyor rollers strong and resilient
| Model | FL-5545T+SM-4525-C-28″ | FL-5545TB+SM-4525-C-28″ |
| Machine Dimensions (mm) |
2529 X 724 X 1612 |
2529 X 724 X 1612 |
|
Max packing size L+H(mm) H<200 |
≤500 |
≤500 |
| Max Packing Size W+H(mm) H＜200 |
≤400 |
≤400 |
| Max Sealing Size (mm) |
550×450 |
550×450 |
|
Packing speed（pcs/h） |
800-1200 |
800-1200 |
| N.W. (kg) | 420 | 420 |
| Power (kw) | 11 | 11 |
|
Power supply |
3PH 220V/380V 50/60Hz |
3PH 220V/380V 50/60Hz |
| Air Source(kg/cm²) | / | 6-8 |
| Applicable Film | POF/PVC | POF/PVC |
