hybrid strobe wash led moving heads

Description:

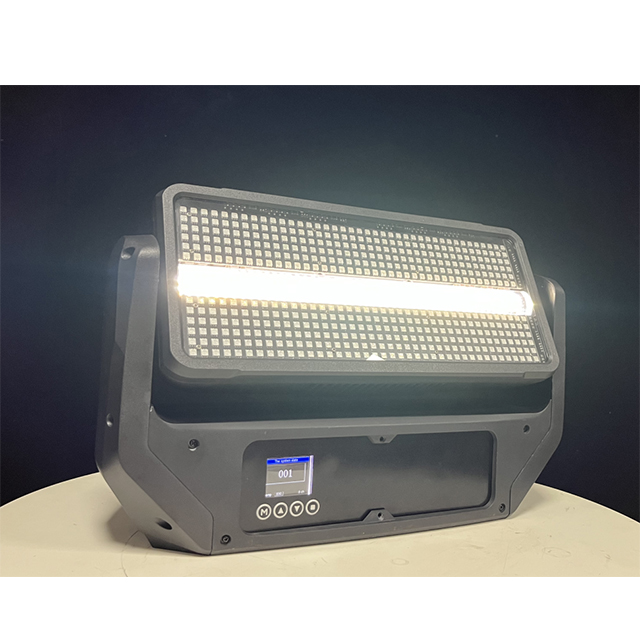

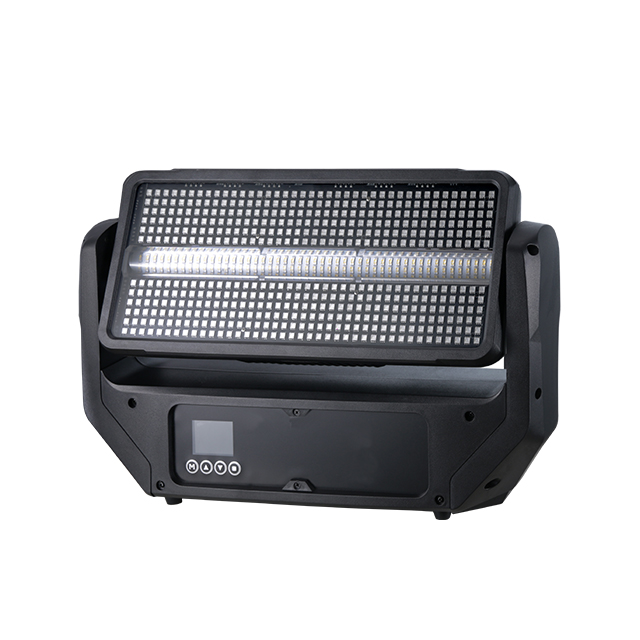

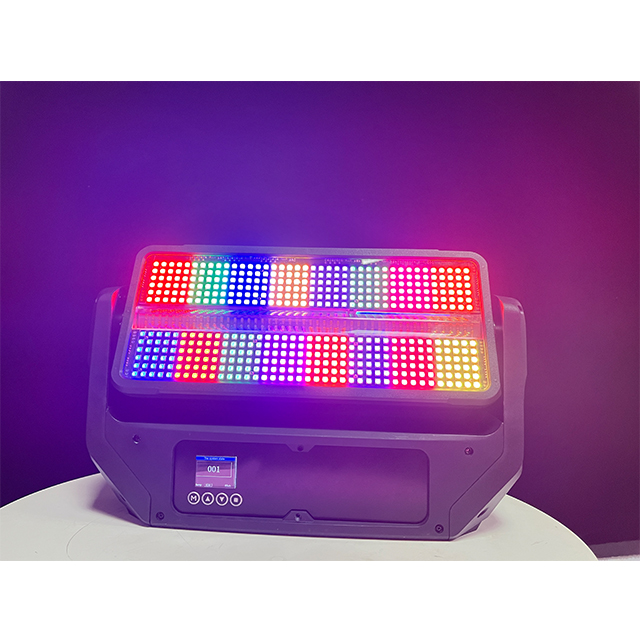

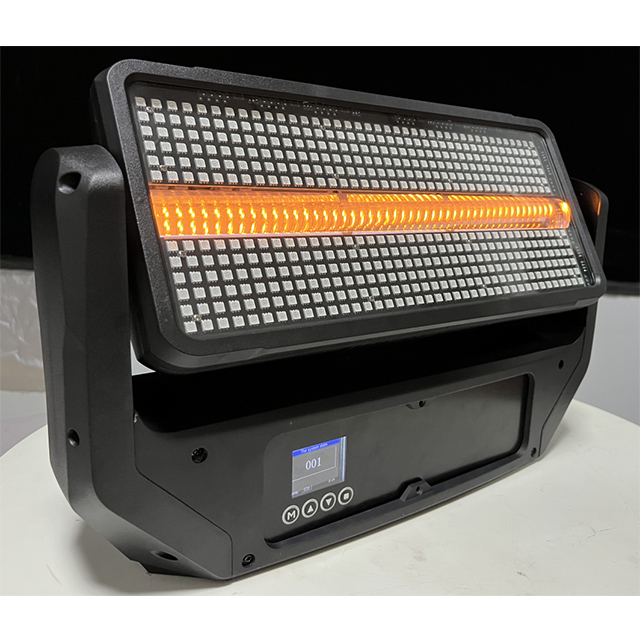

ST1000FC is a hybrid strobe/wash led fixtures, 185° tilting movement, a ultra bright Cool-White/amber/white and amber led tube is surrounded by 2*8 segments RGB 3 in 1 leds, which can make color mixing, pixel mapping effect.

features:

2x8 pixel mapping effect

185° tilting movement

built in program, sound active

fanless cooling

temperature control to make the led longer lifespan
USITT DMX-512, RDM,ART-NET control

0-100% electronic dimmer, flicker free

Specification:

Strobe Panel LEDs

LED Type: 5050 0.5W RGB 3in1 LEDs

LED Count: 480

LED Colors: RGB

LED Segments: 16 (2 x 8)

Strobe Tube LEDs

LED Type: 3535 5W 6500K/2700K/2700K-6500K LEDs

LED Count: 144

LED Colors: Cool-White/amber/white and amber

LED Segments: 8

Movement

Resolution: 8-16 Bit

Tilt (Degrees): 185°

Control

Control Modes: 9CH / 18CH / 64CH / 82CH

Display: Illuminated graphic LCD

Protocol: USITT DMX-512, RDM,ART-NET

RDM: Bidirectional communication

Cooling: Temperature controlled, overheating protection

Effects

Dimmer: 0-100% electronic

Shutter: electronic, max. 20 Hz

Internal Effects: LED Macro Effects

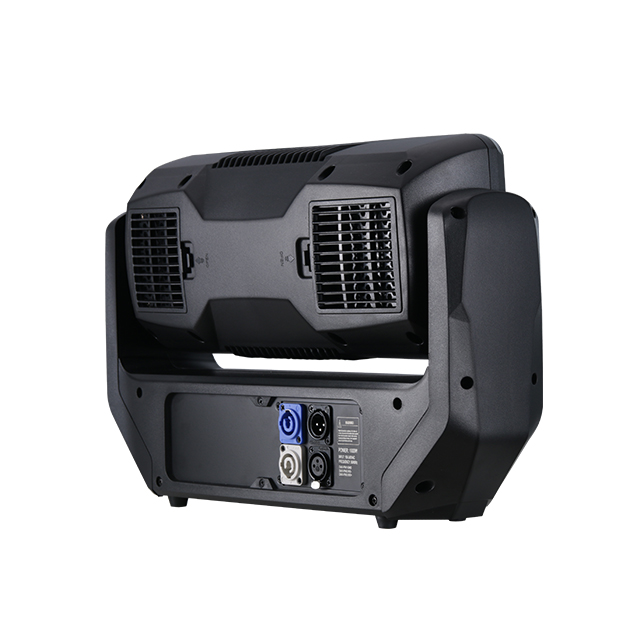

Connectors

Signal connection:  IP20 XLR 5-Pin or 3-Pin In/Out

Power Input: PowerCON TRUE1 In/Out

Operating Conditions

Mains voltage: 100-240V AC / 50-60Hz

Power: 1000W

Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F

Operating Position: any

Mounting Options

Hanging: Bracket

Safety wire attachment: foldout eyelets
