Mini hydraulic excavator NM-E10

4 year ago

68 0 

Shandong Nuoman Engineering Machinery Co., Ltd

6 year

Product details

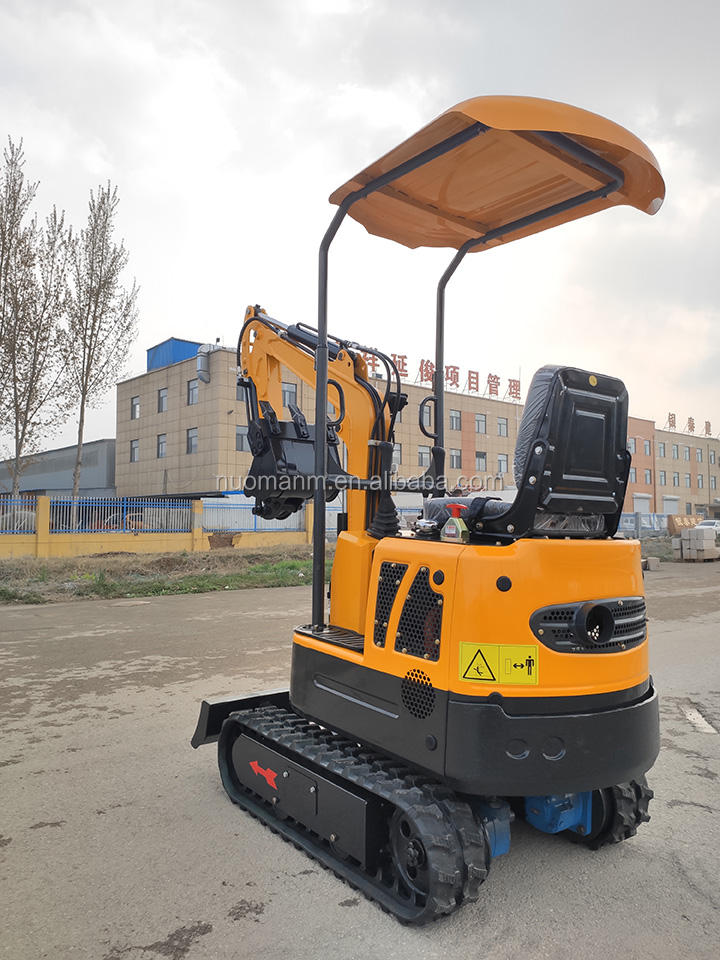

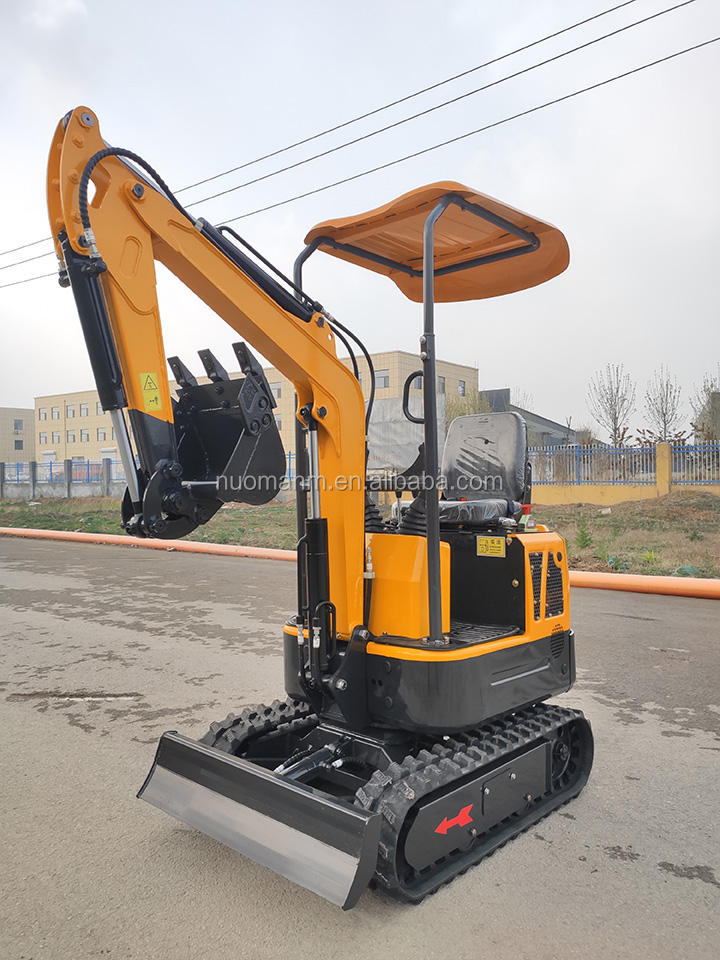

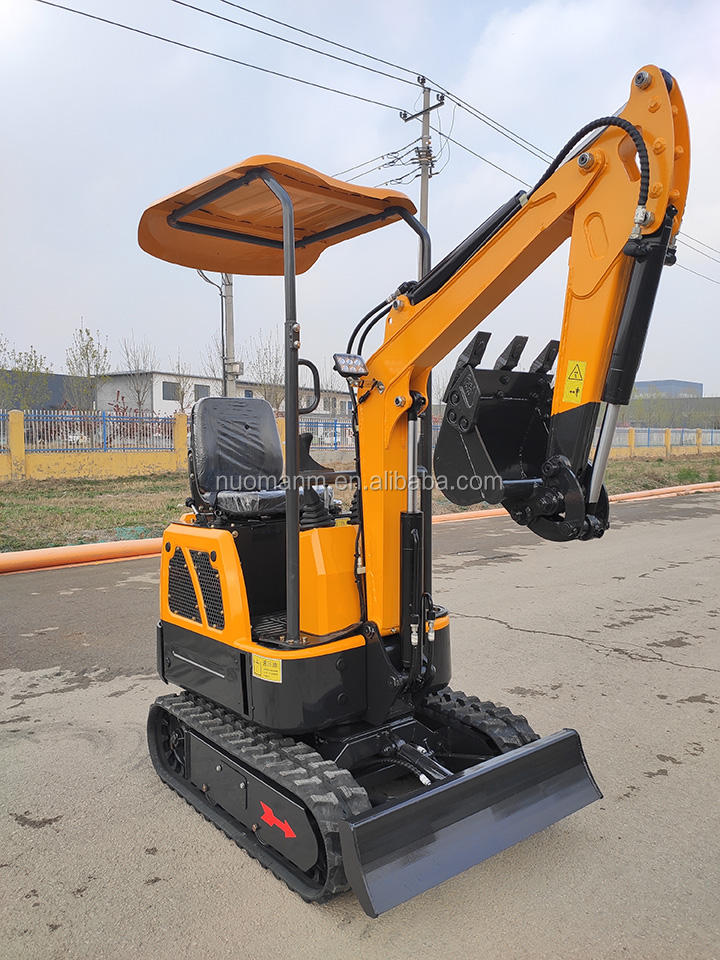

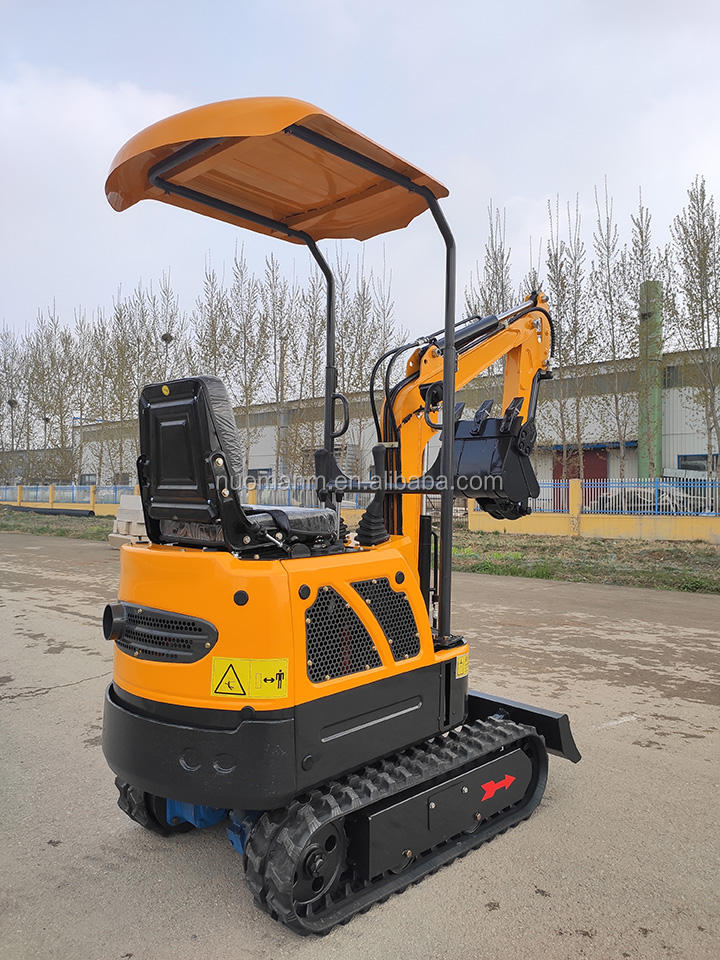

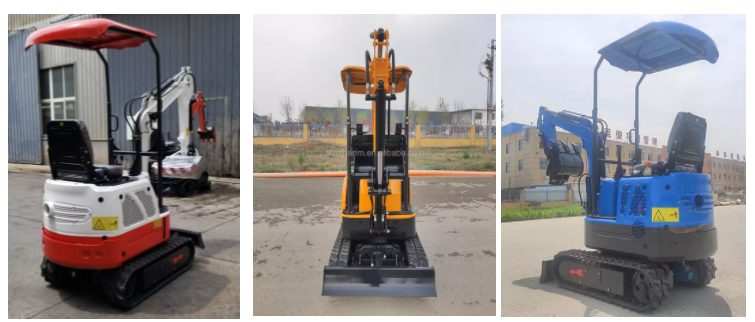

Mini hydraulic excavator NM-E10

The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless

of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and

customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields,

hard ground, paddy fields, it can be easily done.

Mini hydraulic excavator NM-E10

Mini Hydraulic Excavator Nm E10

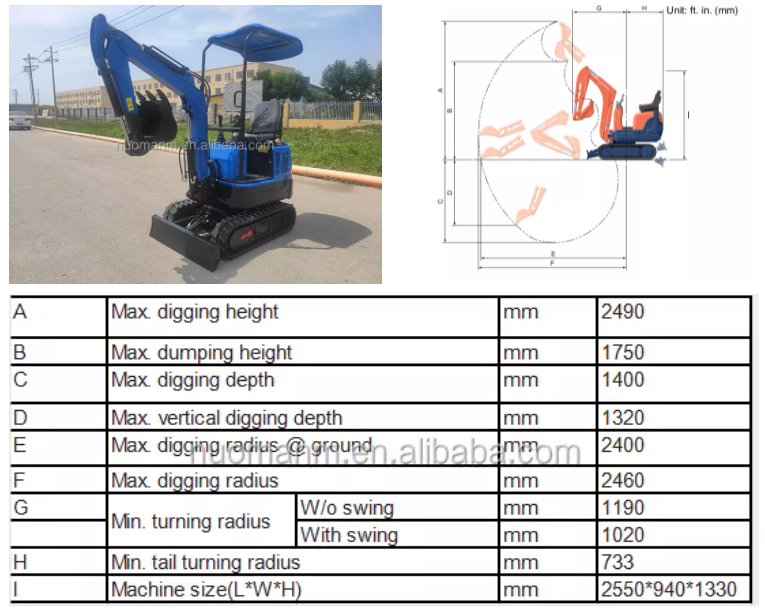

model	NM-E10
Vehicle weight	900kg	Maximum ground mining radius	2400mm
Standard shovel capacity	0.025-0.045m³	Swing(optinal)	75° left / 45° right
Working device form	Backhoe	Pumps	Gear pump
Rated power	8.6kw	System relief pressure-Standard	16.5MPa
Wheelbase	770mm	track width	180mm
Caterpillar chief	1090mm	Minimum radius of revolution	1190mm
Platform clearance	380mm	Maximum lift height of earth shovel	325mm
Platform end radius of gyration	733mm	Maximum digging depth of earth shovel	175mm
Emgine Model	KP-192F	Horsepower (net)	8.6kw @ 3600rpm
Cooling	water-cooling	Fuel injection	direct

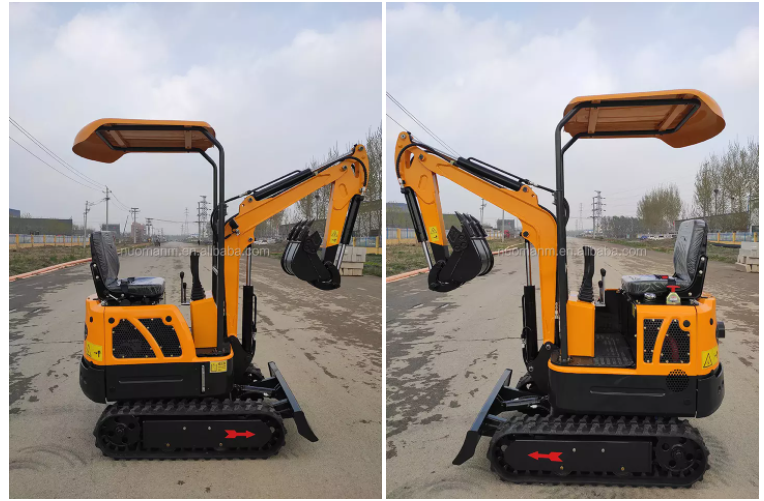

Compact Dimensions

Easy site access

Mini Hydraulic Excavator Nm E10

Compact Dimensions

With an overall width of only 950mm(3 ft 12in) the NM-E10 can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites

possible.

Extending Undercarriage and Blade

An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator’s seat, enables the machine to pass through narrow openings.

Counterweight, safe operation

The counterweight is to balance the torque, so that the center of gravity of the excavator is always kept near the center of rotation, and the overall balance is maintained, which is more stable and safe during using hamer

Main Features

The NM-E10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

1.    Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2.    Hydraulic pump (gear pump) is easy to maintain, long life
3.    Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets

you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean

up.

4. Multiple valves under the operating handle,The benefit of less effort and improved control

is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start

Latest model NM-E10
