chinese medicine powder grinding machine

4 year ago
29 0
Product details

SRI LANKA CHILI POWDER PULVERIZER

Medicine Grinding Machine


Medicine DrawTurmeric Medicine Pulverizer



1.MAIN APPLICATION

WF series chinses medicinepulverizer is applied in dustries such as pharmaceutics,foodstuff,chemical etc.with the features of cool and no screen ,it's not limited by the viscosity ,hardness,softness or fiber shape of the raw material and has good effecr to all materials,especially to those chinese herbal medicine with fibers and those with oil


2.WORKING PRINCIPLE

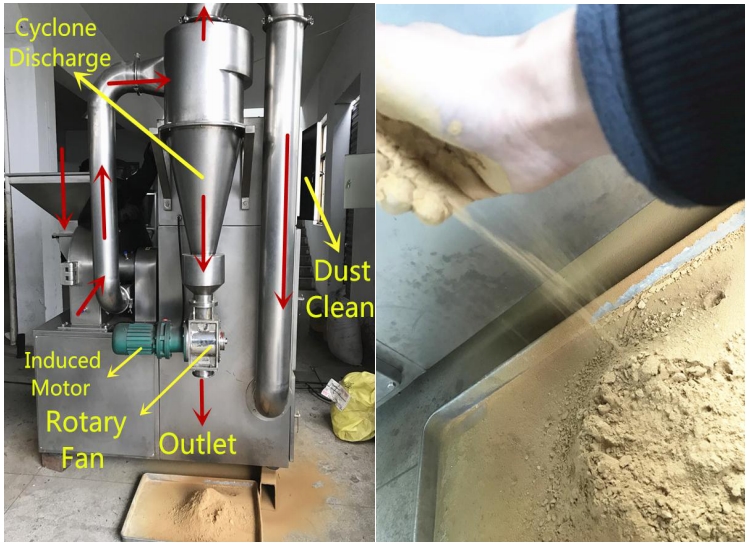

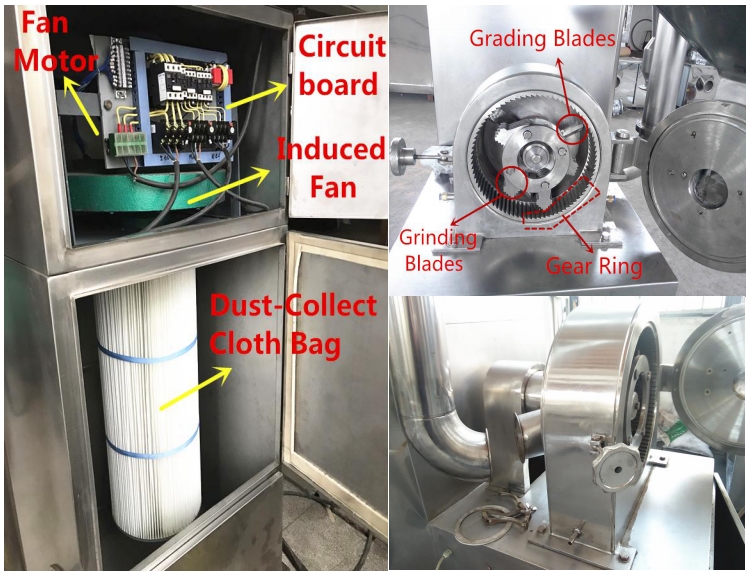

This machine are composed of feeder,grading wheel,pulverizing blades,gears,pulverizing motor,discharging gate,fans,collection box,dust collection box and etc.any raw material being fed into the grind chamber through the upper feeder is pulverized by high-speed running blades.the fineness of the finished products is regulated with the distance adjustment of grading wheel and grading plate.the high speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose un pulverized remained in the chamber.the dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box.


3.MAIN FEATURES

Salt WF series meidicine pulverizer easy operation,low noise,simple structure

Sugar powder pulverizer can add magnetic to remove the metal impurity(as consumer requirements)

Salt  powder pulverizer machine  the fineness can be achieve 12-180 mesh


4.TECHNICAL PARAMETER

Model
Capacity(kg/h)
Crushing motor(kw)
Aggregate motor(kw)
Spindle speed(rpm)
Feeding size(mm)
Size(mm)
Weight(kg)
WF20
10-150
5.5
1.5
5000
≤5
1000x800x1750
320
WF30
20-300
7.5
2.2
4500
≤12
1200x850x1800
650
WF40
50-500
11
3
4000
≤15
1500x900x2100
800




Remarks:

1.delivery:15 working days in factory

2.Payment:30% advance,70% before shipping by TT

3.We are manufacturing company with the factory price and high quality

4.We can provide offer with FOB,CIF,CFR as consumer requirmenrts

5.If u feel interested in this machine or sifting machine or spices pulverizer or rotary vacuum dryer or powder mixer machine or capsule filling machine or capsule polishing machine or capsule counting machine etc someday that we produced u can tell me your specific requirement so that i can better recommend more suitable for your demands machine,what do u think
