Mechanical Bar Screen
4 year ago
Mechanical Bar Screen
Products Description
Mechanical bar screen is a kind of advanced solid-liquid separation device in water treatment,which can continuously and automatically remove debris from wastewater for sewage pretreatment. It is mainly used in municipal sewage treatment plants, residential quarters sewage pretreatment devices, municipal sewage pumping stations, waterworks and power plants, also it can widely be applied to water treatment projects of various industries, such as textile, printing and dyeing,food, fishery, paper, wine, butchery, curriery etc.
Technical parameters
Parameter
HLCF-500
HLCF-600
HLCF-700
HLCF-800
HLCF-900
HLCF-1000
HLCF-1100
Flow Depth H3(m）
1.0
Flow Velocity V³(m/s)
0.8
Grid Spacing b(mm)
1
Flow Rate Q(m³/s)
0.03
0.04
0.05
0.06
0.07
0.08
0.08
3
0.07
0.09
0.1
0.12
0.14
0.16
0.18
5
0.09
0.11
0.14
0.16
0.18
0.21
0.23
10
0.011
0.14
0.17
0.21
0.24
0.27
0.3
15
0.013
0.16
0.2
0.24
0.27
0.31
0.34
20
0.014
0.17
0.21
0.25
0.29
0.33
0.37
25
0.014
0.18
0.22
0.27
0.31
0.35
0.39
30
0.015
0.19
0.23
0.27
0.32
0.36
0.4
40
0.015
0.20
0.24
0.29
0.33
0.38
0.42
50
0.016
0.20
0.25
0.29
0.34
0.39
0.43

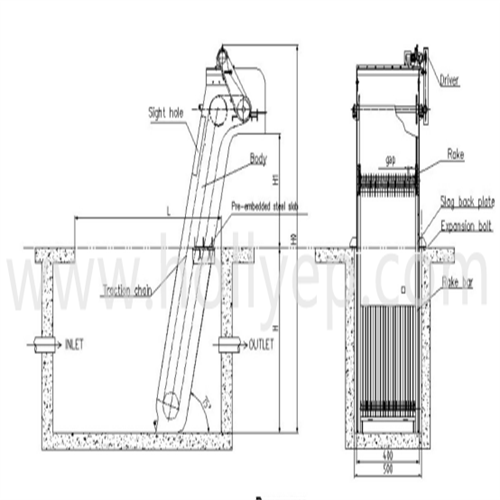

Structural Drawing
Features
♦ The driving unit is directly driven by cycloidal gear reducer or helical gear reducer which shows the nature of working
stability, low noise, big load capability and high efficiency in conveying.
♦ Simple structure with compact size, easy to install and move. Device can self-clean up while working, easy to maintain.
♦ Easy to operate, can be controlled directly on the spot or remote.
♦ Include overload protection device, machine will shut down automatically when malfunction happens to avoid damage.
♦ When the device width exceeds 1500mm, will be made into parallel machine to ensure the overall strength.
Application
