K2500, K2501

K2501(M1183B) K2529 K2549 K2531K2545 K2546 K2502(M736) K2503(M1887) K2530 K2532 K2551 CA/RCA 25 Repair Kit

Goyen-25 plateau pulse valve plate has great difference according to different pulse solenoid valve environment. The gasket in the middle of the diaphragm of the pulse solenoid valve is usually iron clad rubber, and the working temperature is generally used in the normal temperature state, which is cheap, and it is generally used as a dedusting accessory. Pulse solenoid valves are mostly used in this kind of accessories. Another is to use vition gasket instead of iron-clad rubber gasket. The diaphragm cost of this kind of pulse solenoid valve is relatively high, and the general pulse solenoid valve is rarely used. Due to the special application environment, the application is not so extensive, but some environments use this kind of accessories. The diaphragm can work at a pressure of 3000 pounds, with a temperature range of (- 55 ℃ ~ 315 ℃), and can be used in corrosive media such as oily, oxidizing, alkaline, acid, etc. The diaphragm material is composed of a layer of fabric and a thin layer of elastomer attached to it. The thickness is usually (0.2 ~ 1.1mm), and the service life of the diaphragm is usually over millions of times.

Deference number:

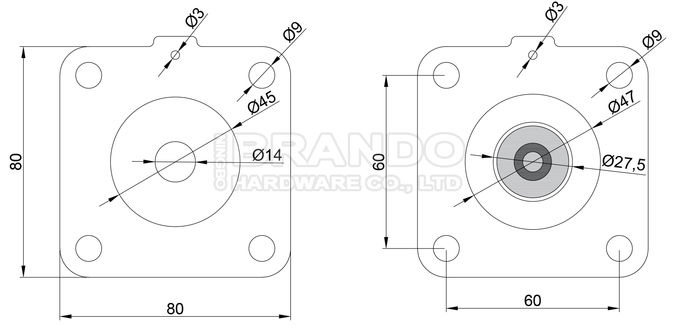

Dimension Diagram:

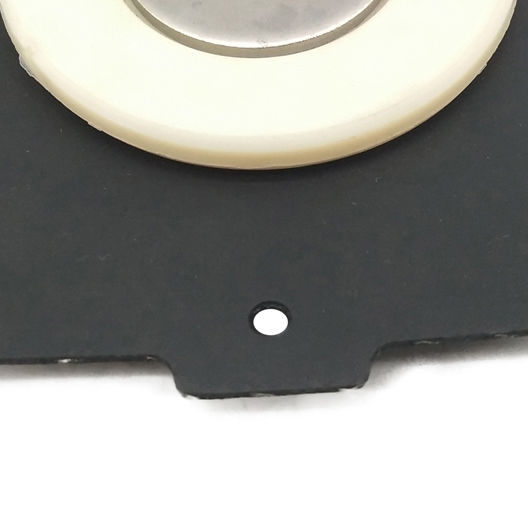

Detailed Images:

Youtube video of diaphragm videos:

Our Production:

Packing＆shipping

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
