K2529 Diaphragm Repair Kit For RCAC25MM Pulse Valve
Goyen pulse valve refers to the diaphragm valve controlled by solenoid or pneumatic pilot valve, which can open and close high-pressure gas source to generate pulse in an instant.
Goyen electromagnetic pulse valve: it refers to the diaphragm valve that combines solenoid valve, pilot valve and pulse valve and is directly controlled by electrical signal.
Goyen diaphragm valve: make-up table nut port or high performance diaphragm valve with sliding seal outlet flange at air inlet. Equipped with "shock wave" spring free diaphragm, 4 series valves can be remotely controlled.
The function of the pulse of Goyen solenoid valve is to control the oil pressure in the oil circuit. Generally, it is installed in the main oil circuit or shock absorber back pressure oil circuit to reduce the oil pressure impact during shifting and locking unlocking, so as to keep the equipment running stably.
Deference number:
| Material | Repair kit | Fitted Valve Model | Port Size |
| Buna/Nylon | K2000(M1204B) | CA20, RCA20, RCAC20 | 3/4'' |
| K2003(M1174B) | |||
| K2016 | |||
| K2034 | |||
| Buna/Buna | K2002(M764) | ||
| FKM | K2007(M2080B) | ||
| K2004(1328B) | |||
| K2017 | |||
| K2033 | |||
| Buna/Nylon | K2501(M1183B) | CA25, RCA25, RCAC25 | 1'' |
| K2529 | |||
| K2549 | |||
| K2531 | |||
| K2545 | |||
| K2546 | |||
| Buna/Buna | K2502(M736) | ||
| FKM | K2503(M1887) | ||
| K2530 | |||
| K2532 | |||
| K2551 | |||
| Buna/Nylon | K2500(M1183) |
CA32, RCA32, CA35, RCA35,
CA40, RCA40, CA45, RCA45
|
1-1/2'' |
| K3500(M1581) | |||
| K4000(M1182) | |||
| K4502(M2162) | |||
| Buna/Buna | K3502(M1591) | ||
| K4504(M2187) | |||
| FKM | K2503(M1887) | ||
| K4004(M1761) | |||
| K4007(M1156) | |||
| K4503(M2163) | |||
|
Buna/Nylon Buna/Buna |
K5004(M1638A) | CA50, RCA50, CA62, RCA62 | 2'' , 2-1/2'' |
| K5005(M1639A) | |||
| FKM | K5000(M1157A) | ||
| K5002(M1528A) | |||
|
Buna/Nylon Buna/Buna |
K7600 | CA76, RCA76 | 3'' |
| K7604 | |||
| K7610 | |||
| FKM | K7602 | ||
| Buna/Nylon | K10200 | CA102, RCA102 | 4'' |
| Buna/Buna | K10203 | ||
| FKM | K10201 | ||
|
Buna/Nylon Buna/Buna |
K8000 | CA8, RCA8 | 8'' |
| FKM |
|

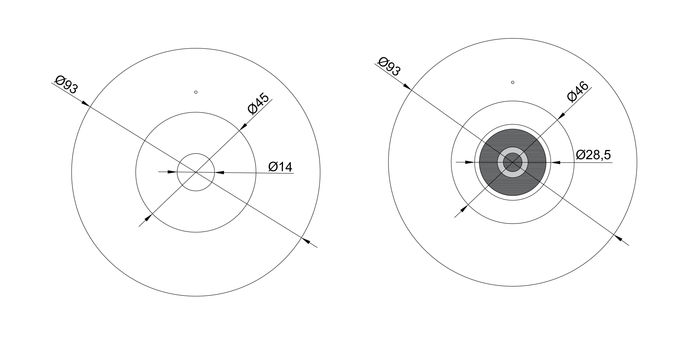

Dimension Diagram:

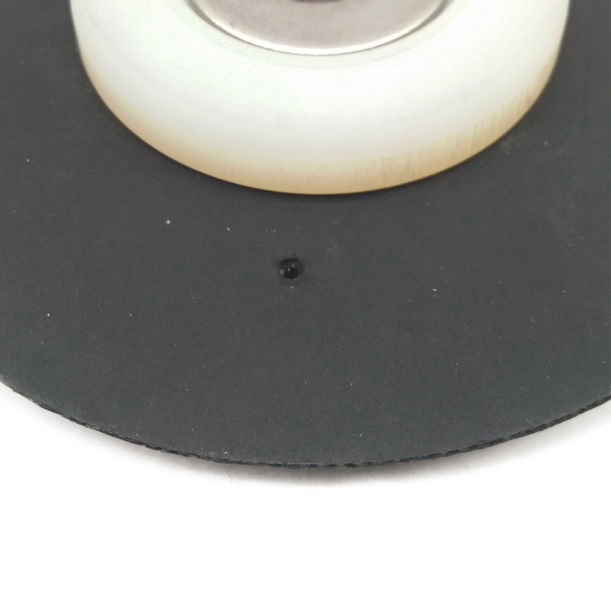

Detailed Images:
Youtube video of diaphragm videos:
Our Production:
Packing＆shipping
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
