K7600

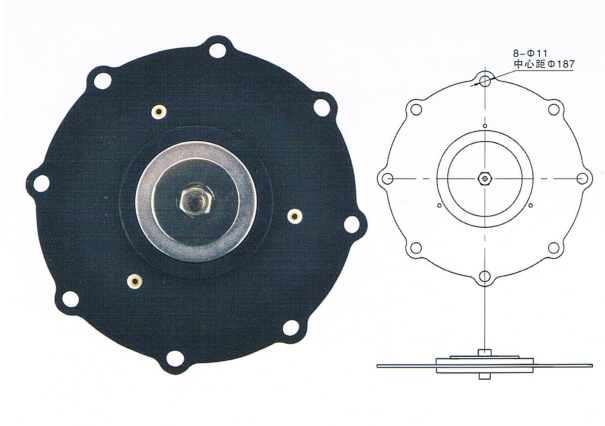

Pulse Valve Replacement ASCO Diaphragm G76

Pulse valve diaphragm is an installation used to seal compressed air tube, or block valve of the outlet of the rivet head, deflated and unloading hole surrounded by a fixed support with bolt holes of a whole piece of high quality rubber diaphragm, is the key control unit of electromagnetic pulse valve, electromagnetic pulse valve is one of the important original, high quality electromagnetic pulse valve must be equipped with high performance of membrane. The diaphragm of electromagnetic pulse valve is in the working state of high frequency opening and closing for a long time. The high-quality diaphragm must have effective adhesive force and tensile strength. Tightness of reliable spectrum; Good corrosion resistance; Excellent aging resistance.

In other words, the stand or fall of pulse valve diaphragm will directly affect the work of pulse bag filter dust system stability, is directly related to the use of dust removal equipment cost, general pulse valve diaphragm has the commitment, the number of service life or actions using high-quality pulse valve diaphragm can directly reduce the cost of the use of dust removal equipment.

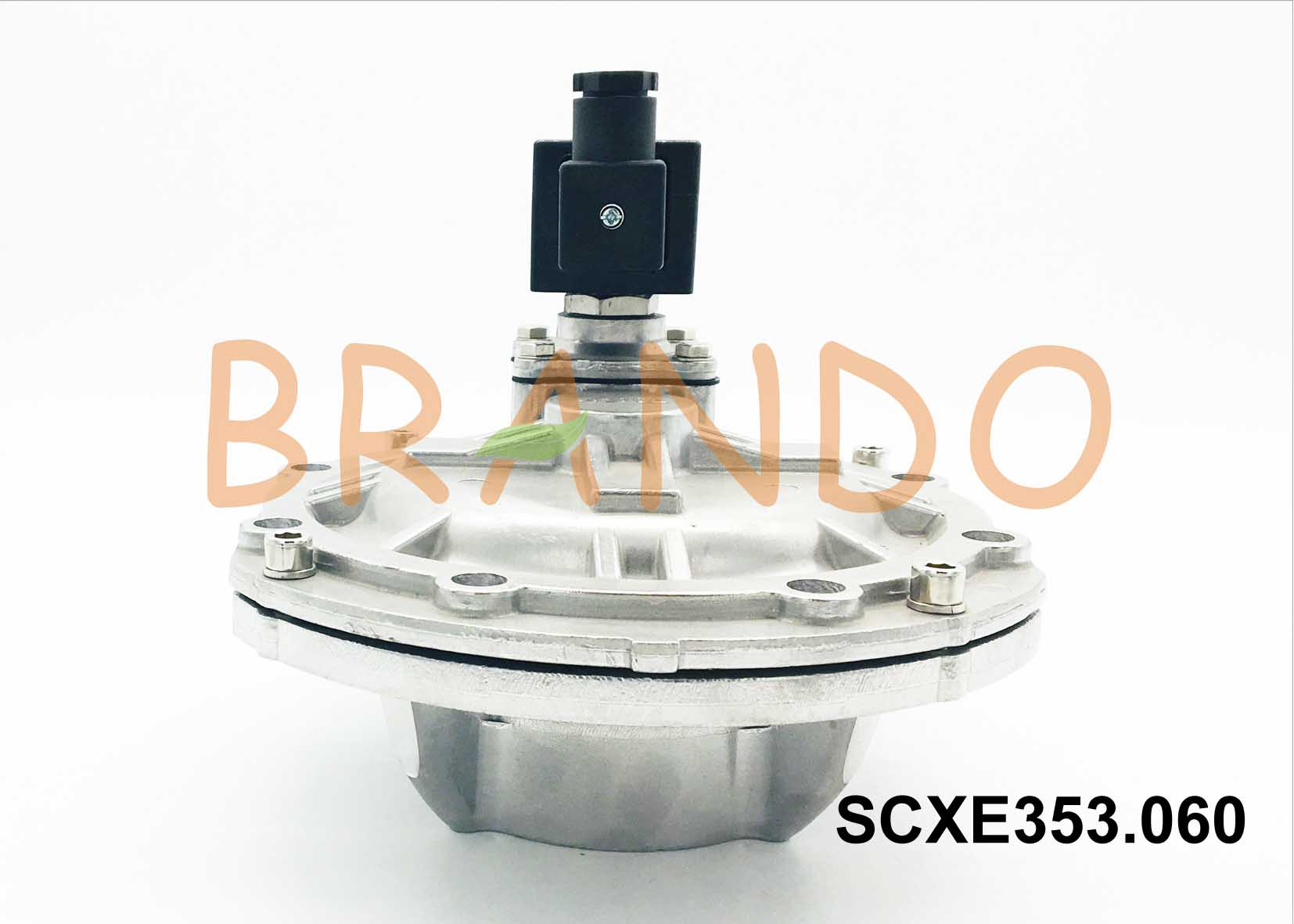

Pulse Valve Repair Kit ASCO 3'' SCXE353.060

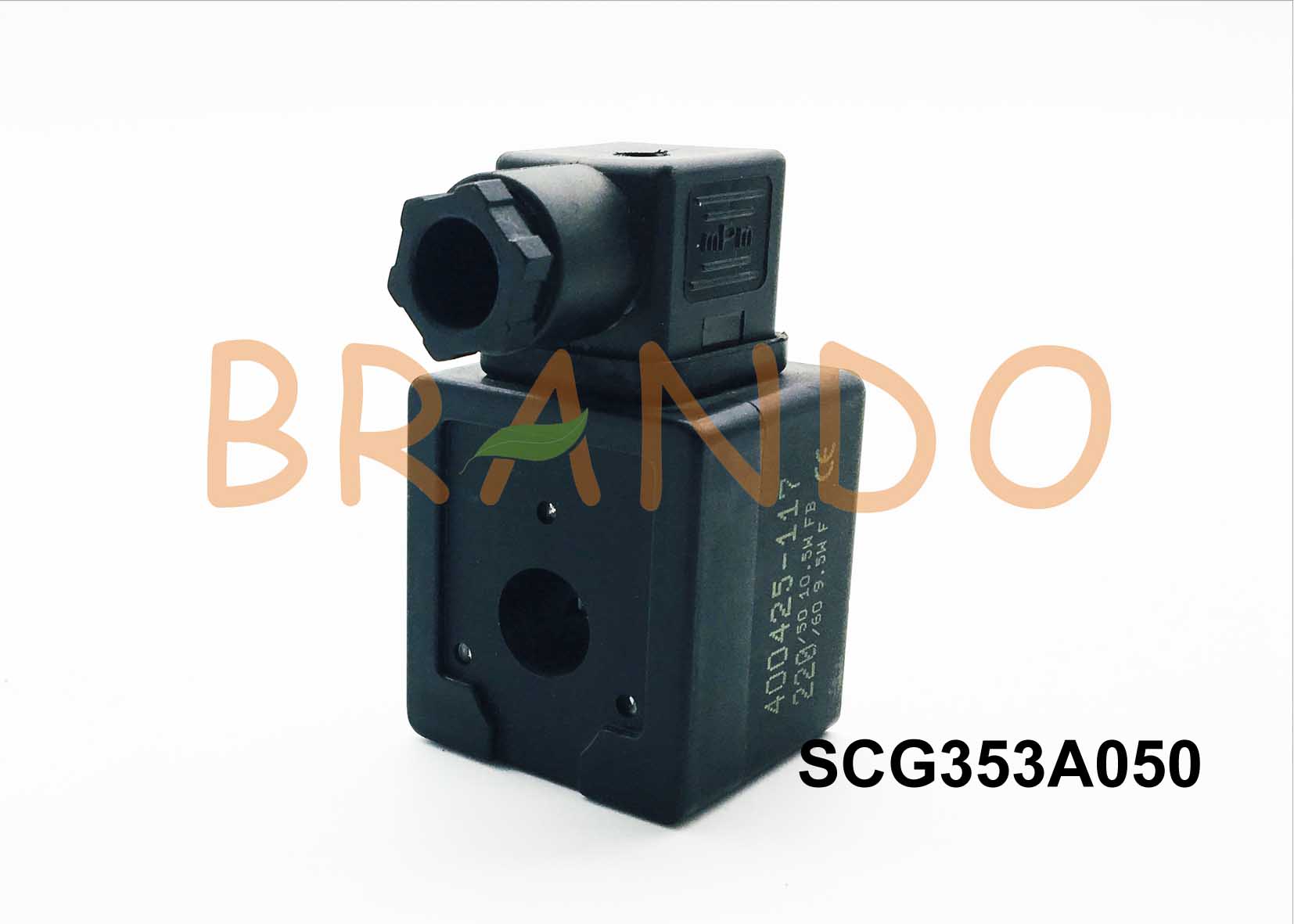

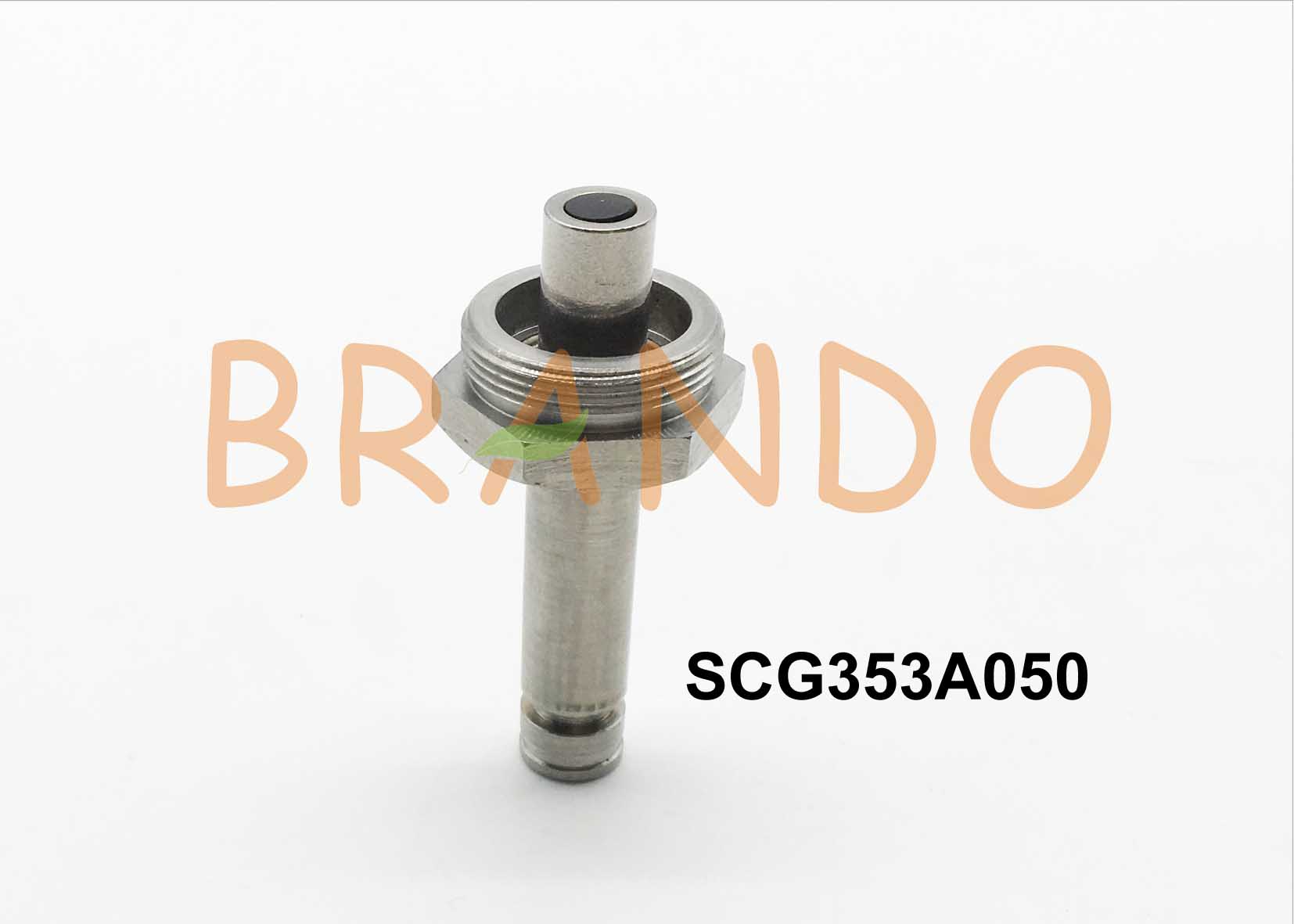

The other fittings such as Coil and Armature alsco can be available

Structure performance of pulse valve diaphragm

Composed of one or more layers of two sides coated with glue, and also of rubber without fabric clip. According to the shape of the separation method membrane pressure method. According to the requirements of the production of different rubber, different fabric diaphragm. The properties of nitrile rubber and polysulfide rubber blends used in the diaphragm, the properties of rubber materials used in the canvas disc diaphragm and some silicone rubber, fluoro rubber and chloro rubber membranes developed in recent years are described as follows.

The operating temperature and pressure range of the diaphragm itself depends on the rubber, fabric and structure. The diaphragm can work at -50~100 ° c and 0.4~ 0.8mpa. Fluoro rubber and silicone rubber diaphragm can work at -80~232 ℃. Chlorol rubber diaphragm can work under pressure of 0.4~ 0.8mpa, with good air tightness, aging resistance, and the service life is equal to that of engine overhaul.

Electromagnetic pulse valve diaphragm operation

Pulse valve diaphragm, is the electromagnetic pulse valve air switch, electromagnetic pulse valve diaphragm back control pressure gas quickly discharged. Diaphragm front control pressure gas will lift the diaphragm, open the electromagnetic pulse valve channel into the bit on the injection, the electrical signal disappears, the electromagnetic pilot head of the spring make the moving column immediately reset closed unloading hole. Electromagnetic pulse valve diaphragm control gas pressure and diaphragm spring force after close the channel, the electromagnetic pulse valve to stop the resistance of injection on the diaphragm hole, when the guide head moving column is raised, when gas pressure unloading, electromagnetic pulse valve diaphragm have the effect of air resistance, when unloading closed cavity, after pressure gas is quickly to make the electromagnetic pulse valve diaphragm close the channel, stop blowing.

Highly appreciated for your any information
