DB 116/C DB116/C DB116 Mecair Type Diaphragm Kit
To support your aftermarket efforts, Brando manufactures and stocks diaphragm repair kits to fit all standard pulse valve designs of the leading valve suppliers. All kits utilize premium Buna N or neoprene diaphragm material for maximum long life performance. We have wide rage of diaphragm repair kits to fit ASCO, Goyen, Mecair, Tae-Ha, Turbo, JOIL, Norgren, SBFEC and so on.

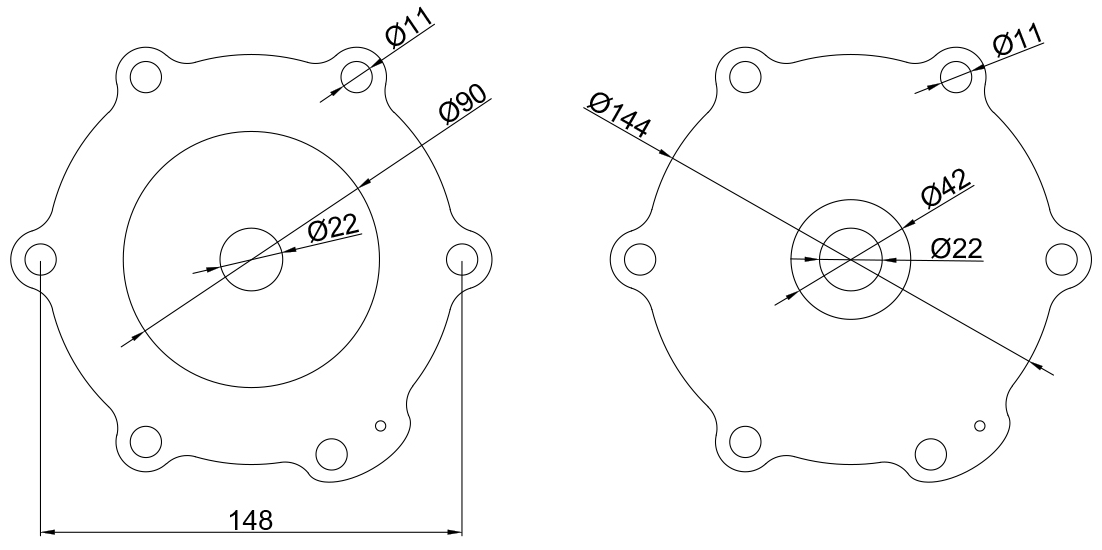

Overall Dimension of DB116/C Diaphragm Repair Kit For 2'' Mecair Pulse Valve:
Details of VNP/VEM216 VNP/VEM416 VNP/VEM616 VNP/VEM716 Diaphragm Repair Kit:
Available Models of Diaphragm Repair Kit For MECAIR Pulse Valves:
|
Ordering code
|
Fitted valve code
|
Valve port size
|
Material
|
|
DB16
|
VNP206, VEM206, VNP306, VEM306
|
3/4''
|
Nitrile/Buna
|
|
DB18
|
VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708 |
1''
|
Nitrile/Buna
|
|
DB112
|
VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 |
1-1/2''
|
Nitrile/Buna
|
|
DB114
|
VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 |
1-1/2''
|
Nitrile/Buna
|
|
DB116
|
VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 |
2''
|
Nitrile/Buna
|
|
DB120
|
VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 |
2-1/2''
|
Nitrile/Buna
|
|
Diaphragm kits typically contain the replacement diaphragm(s) as well as the spring(s). |
|||
Tips: The related solenoid coils and armature assembly are all supplied.
Brando Factory Production Pictures of Diaphragm Repair Kit:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility
5. EPDM, FKM all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
