DMF-Z-20, DMF-ZM-20 Diaphragm
5 year ago

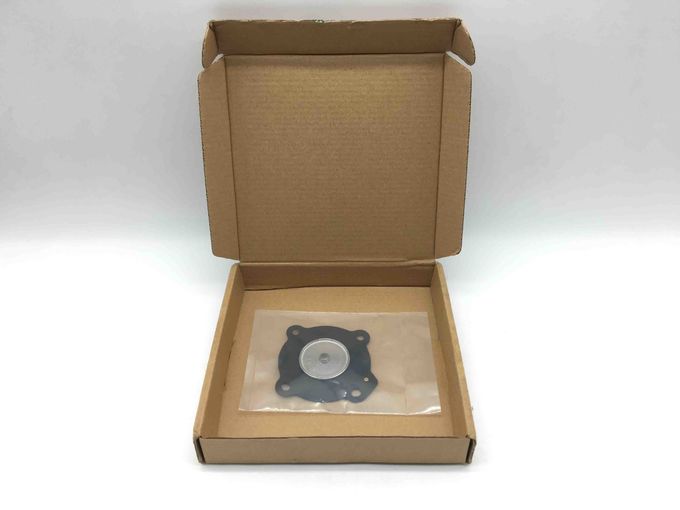

DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve Pneumatic Actuator 3/4 Inch FKM
Dmf-20 bag with pulse valve plate is one of the accessories for the normal operation of the valve body while the "switch" of the air injection circuit of the dust cleaning system of the pulse bag filter. On the basis of the previous experience in the production of solenoid valve diaphragm with dmf-20 bag and pulse valve, absorbing and summarizing the advantages of materials and production technology of similar products at home and abroad, a new improved solenoid valve diaphragm has been developed, Pulse valve diaphragm, the electromagnetic pulse valve diaphragm is suitable for the production of electromagnetic pulse valve diaphragm rubber plate, with strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, it can easily ensure the synchronous operation with other control components, control the pulse compressed air injection. Even in the extremely bad working environment, it can guarantee its normal operation and long service life. At the ambient temperature of - 20-80 ℃ and the working pressure difference of 0.8MPa, the working life of the diaphragm is not less than 1 million times.

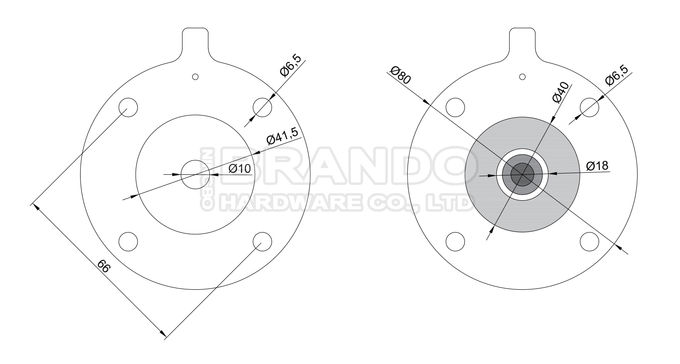

Main dimension of BFEC Replacement Diaphragm Repair Kits:
Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:
|
Ordering Code
|
Fitted Valve Code
|
Port Size
|
|
DTY
|
MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
|
Tip: Secondary Diaphragm
|
|
D20A
|
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
|
3/4''
|
|
D25
|
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
DMF-T-20, MF-T-20
|
3/4'' & 1''
|
|
D40
|
DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
DMF-T-25S, MF-T-25S
|
1'' & 1-1/2''
|
|
D50
|
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
DMF-T-50S, MF-T-50S
|
2''
|
|
D62
|
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
|
2-1/2''
|
|
D76
|
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
|
3''
|
|
D102
|
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
|
4''
|
|
D102A
|
DMF-Y-102SA, MF-Y-102SA
|
4''
|
|
DZL-20B
|
DMF-ZL-B, MF-ZL-B
|
3/4''
|
Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

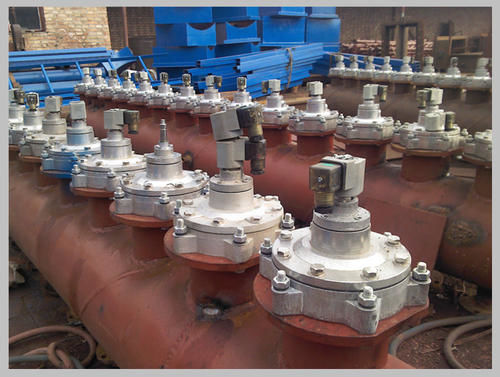

Application Examples:
YouTube video of SBFEC Type NBR Diaphragm Valve Repair Kit:

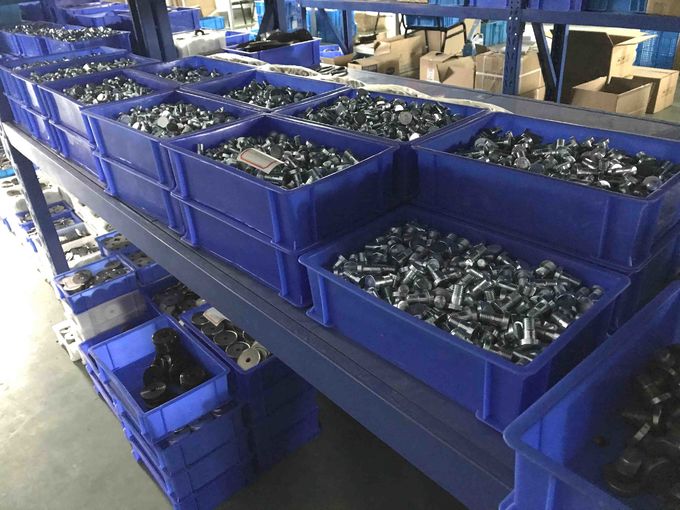

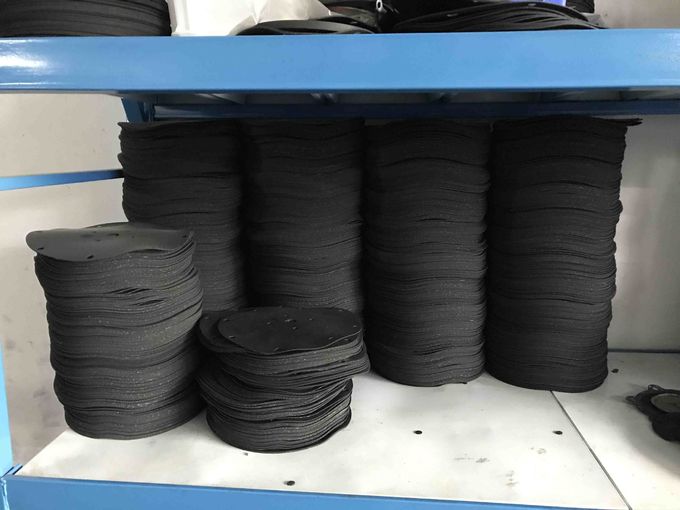

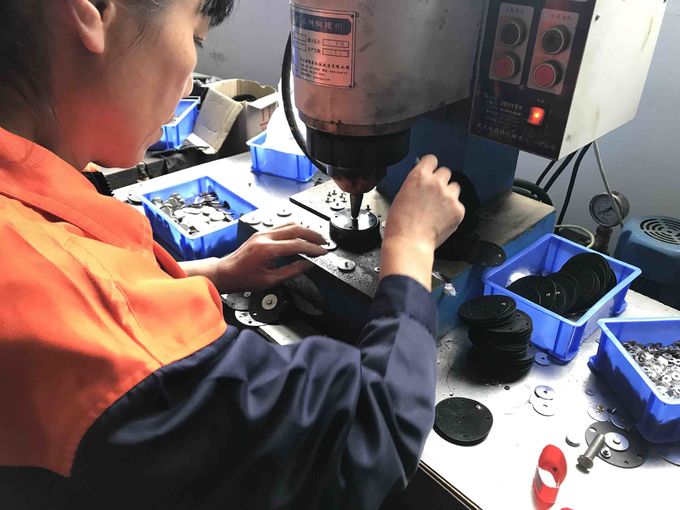

Factory Production Pictures of Solenoid Valve Diaphragm Kits:
