DMF-Y-102SA, MF-Y-102SA Pulse Valve Diaphragm
5 year ago
DMF-Y-102SA Pneumatic Valve Diaphragm For Dust Collector Air Valve Pneumatic Actuator 4 Inch FKM
This is replacement diaphragm kits for the SBFEC 4'' DMF-Z-102 MF-Z-102 DMF-ZM-102 MF-ZM-102 pulse valves. This kit includes the standard wearing parts of the valve for field replacement.
By registering for a customized catalog, Brando offers a fast and easy way to order your replacements parts. We'll take your system specifications and create a catalog based on your system making it a breeze to find the right products for your installation.
The operating temperature range and pressure range of the diaphragm itself depend on the type of glue, fabric and structure. The diaphragm can work at - 50 ~ 100 ℃, 0.4 ~ 0.8MPa; the fluororubber and silicone rubber diaphragm can work at - 80 ~ 232 ℃. The chlorophenol rubber diaphragm can work under the pressure of 0.4 ~ 0.8MPa, with good air tightness, aging resistance, and the service life equal to that of engine overhaul
BRANDO company welcome clients from all over the world, we attend exhibitions in many countries, such like America, Europe, Australia, Malaysia, Pakistan, Egypt, New Zealand, Poland, Germany, Korea, India, Indonesia, etc. We highly welcome your visit at our booth or our company.
Main dimension of BFEC Replacement Diaphragm Repair Kits:
Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:
|
Ordering Code
|
Fitted Valve Code
|
Port Size
|
|
DTY
|
MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
|
Tip: Secondary Diaphragm
|
|
D20A
|
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
|
3/4''
|
|
D25
|
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
DMF-T-20, MF-T-20
|
3/4'' & 1''
|
|
D40
|
DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
DMF-T-25S, MF-T-25S
|
1'' & 1-1/2''
|
|
D50
|
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
DMF-T-50S, MF-T-50S
|
2''
|
|
D62
|
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
|
2-1/2''
|
|
D76
|
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
|
3''
|
|
D102
|
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
|
4''
|
|
D102A
|
DMF-Y-102SA, MF-Y-102SA
|
4''
|
|
DZL-20B
|
DMF-ZL-B, MF-ZL-B
|
3/4''
|
Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

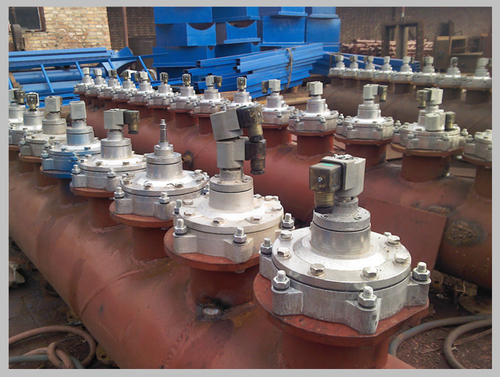

Application Examples:
YouTube video of SBFEC Type NBR Diaphragm Valve Repair Kit:

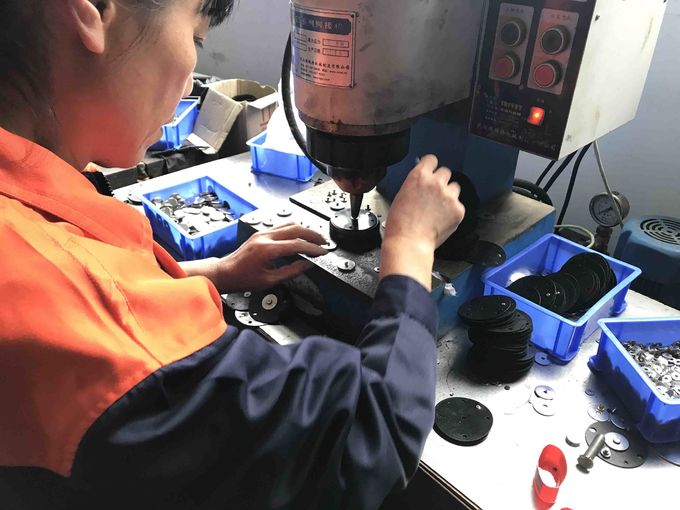

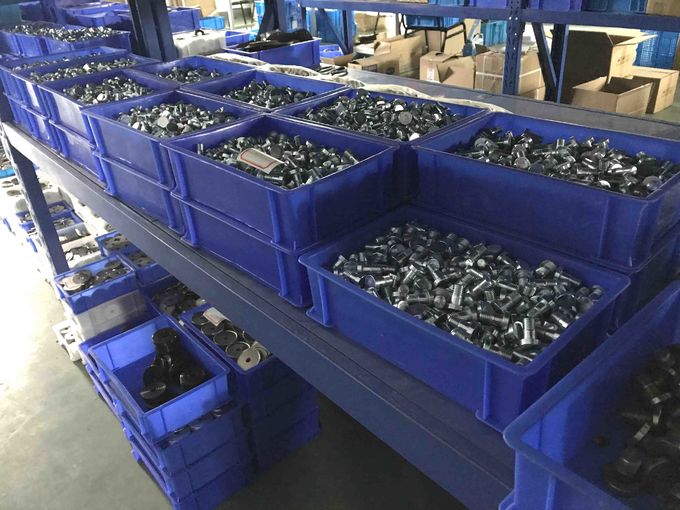

Factory Production Pictures of Solenoid Valve Diaphragm Kits:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
