Industrial production of braided sleeves As a plastic application market, plastic raw material distributors actively develop equipment technology, and expand independent innovation applications in different industries to the braided sleeve industry. Nanotechnology and thermoplastic rubber technology have released relatively commonly used braided sleeve applications.

Structure of self closing sleeve

Wrap wire protection sleeve, braided by polyester monofilament and polyester multifilament, has good heat dispersion performance, fireproofing, abrasion resistance, easy to operate, Open structure is good for wire harness to install, maintain and repair.

PET Wrap provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving but with the added feature of a hook and loop closure running the length of the material.

This allows you to work on segments of the cabling, rather than having to remove the entire covering and re-run all of its contents.

Application of self closing sleeve

Self closing braided wrap is widely used for management of A/V cableand power cord in home theater,computer ,TV support and so on.

Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.

Usage is for the protection of wire and Tightening up, for computer power cord, audio-video, automotive, aviation , wire and cable industries.

Description of self closing braided sleeving

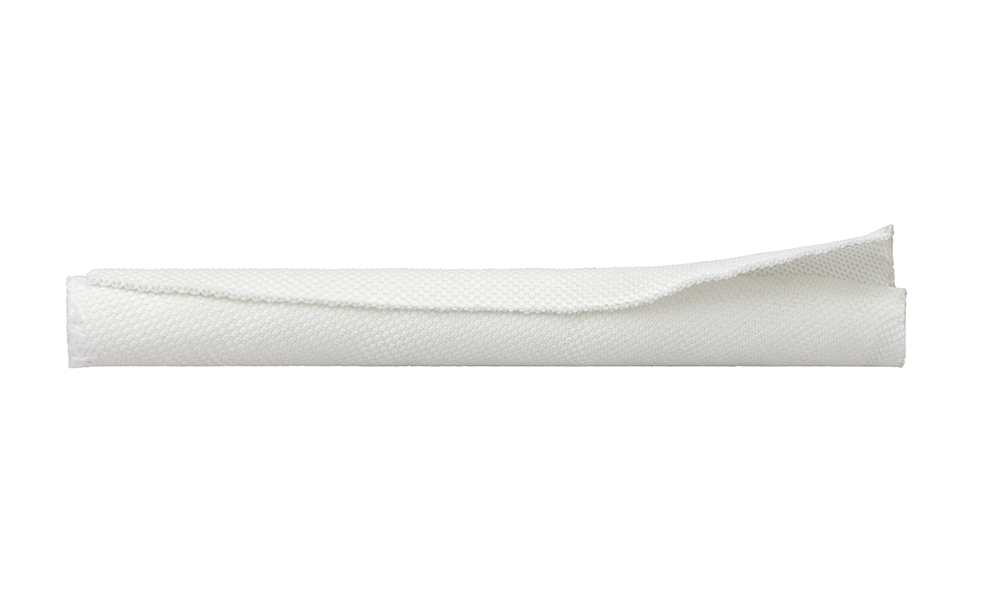

PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET is with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.

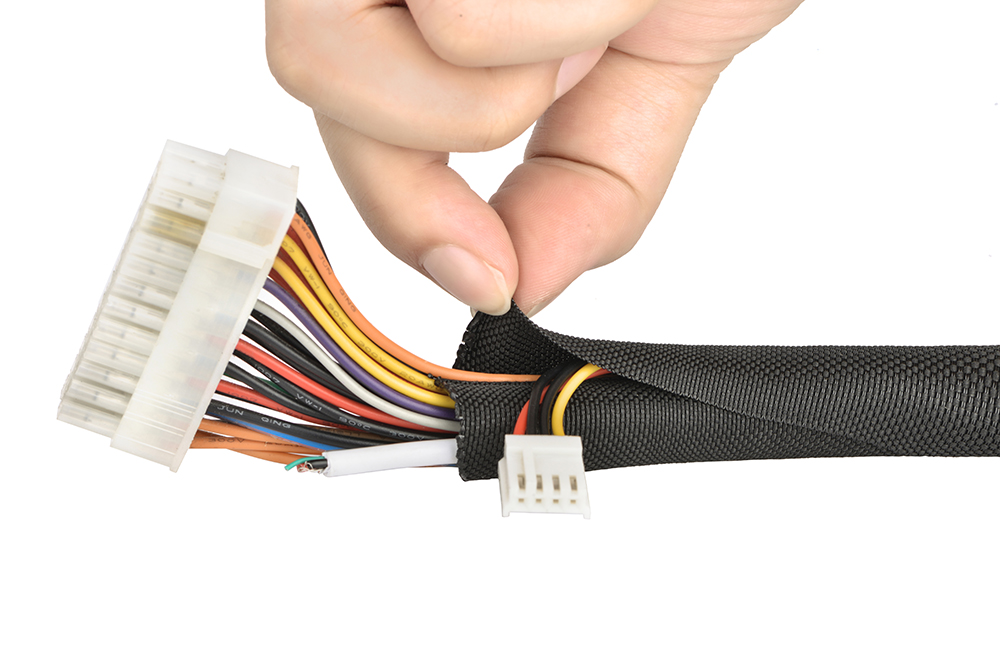

self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.

flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 50% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.

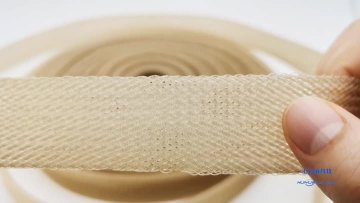

Self closing wrap is a non-expandable sleeve woven from monofilament weft and multi-filament warp.

It provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable.

Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.

Key Specifications/Special Features:

·  Expandable sleeve is flexible, flame-retardant , abrasion resistant and high-density woven  polyester that meet RoHS standard. The braid is able to expand up to 3 times

·  Temperature range: -40oC ~ 125 oC.

·  Flammability: self-extinguishing according to UL94-v

·  Melting point: 240oC±5oC.

Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.

•  Easy, cost and labor effective installation
•  More flexible than split convoluted or spiral wrap
•  50% edge overlap
•  Cut and abrasion resistant
•  Halogen free
•  Retains shape and rigidity throughout -50°C to 150°C temperature range
•  melt temp. 250°C

Braided Wrap Around Sleeving

1. Braided Wrap Around Sleeving offers innovative solutions for the protection of breakout areas

and provides easy removal when is necessary an inspection or maintenance of cables.

2. The special open structure allows to be installed after other components, for example copper terminals and connectors.

3. A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance.

PET Wrap provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving but with the added feature of a hook and loop closure running the length of the material.

This allows you to work on segments of the cabling, rather than having to remove the entire covering and re-run all of its contents.

Technical data of self wrap split cable sleeve

1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC+-5ºC
4. Flammability: VW-1

5.Sizes for self closing sleeves:sleeve diameter(mm): 5,8,10,13,16,19,25,29,32,38,50,60,70.
