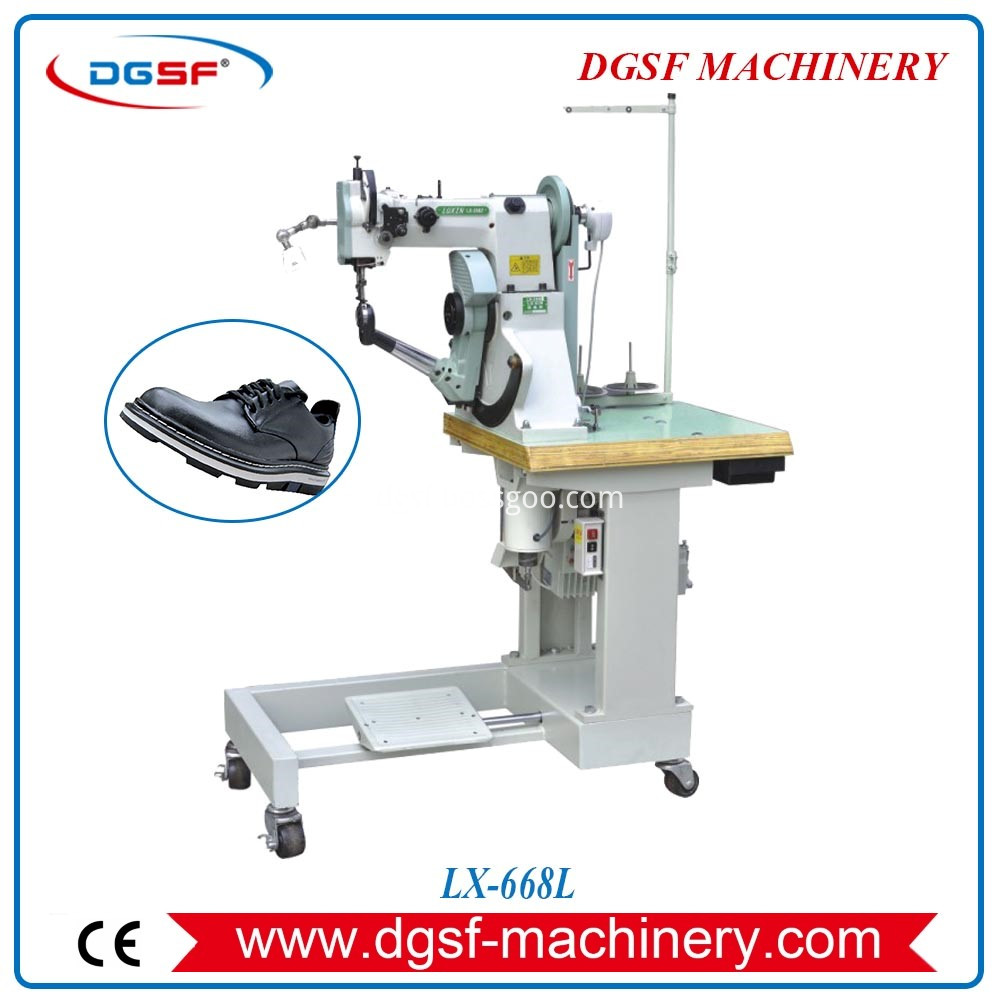

Side Wall Sole Stitching Machine LX-668L
3 year ago
Side Wall Sole Stitching Machine LX-668L
Product Description
Shoe Border Sewing Machine 668L is a very traditional Border Sewing Machine, it's adopted gear driving hook system, with higher cost than chain driving system, but working condition is more stable and durable; we made this special Thick Thread Sewing Machine more than 25 years already with pretty machine making, and machine repairing, and machine practicing experience together, that's why we can promise to supply the best quality Shoe Border Sewing Machine series to all customers.
1, It is suitable for side seam stitching and outsole edge lock stitching of big size sports shoes, and casual shoes.
2.With biggest bobbin case for more bottom thread to use for longer time ;
3. All parts were made by CNC machine, all parts is of great quality.
4. Use electron motor to control the speed, it is easy to change the speed, and break controlled by computer.
5. This machine thread hook use chain to drive, durable and waterproof,
6. This machine's thread hook, chain, ring and so on are imported from ZUOWEN in Jason.
Model LX-668L
Sewing speed Stepless speed regulation
Stitching track Lockstitch double thread
Stitching length 1-8mm
Stitching thickness 1-3mm
Needle model CP*5,21#,23#,25#,27#
Needle number 1
Hook number 1
Thread model 0#-20#
Motor 50-60HZ 0.55KW
Voltage 380V/220V
N.W. 150KG
G.W. 180KG
Machine size(LxWxH) 1000L*600W*1250H(mm)
Packing size(LxWxH) 1200L*720W*1450H(mm)
HS.code 84522900
Country of origin Made in China
