stainless steel laser marking
3 year agoDescription:

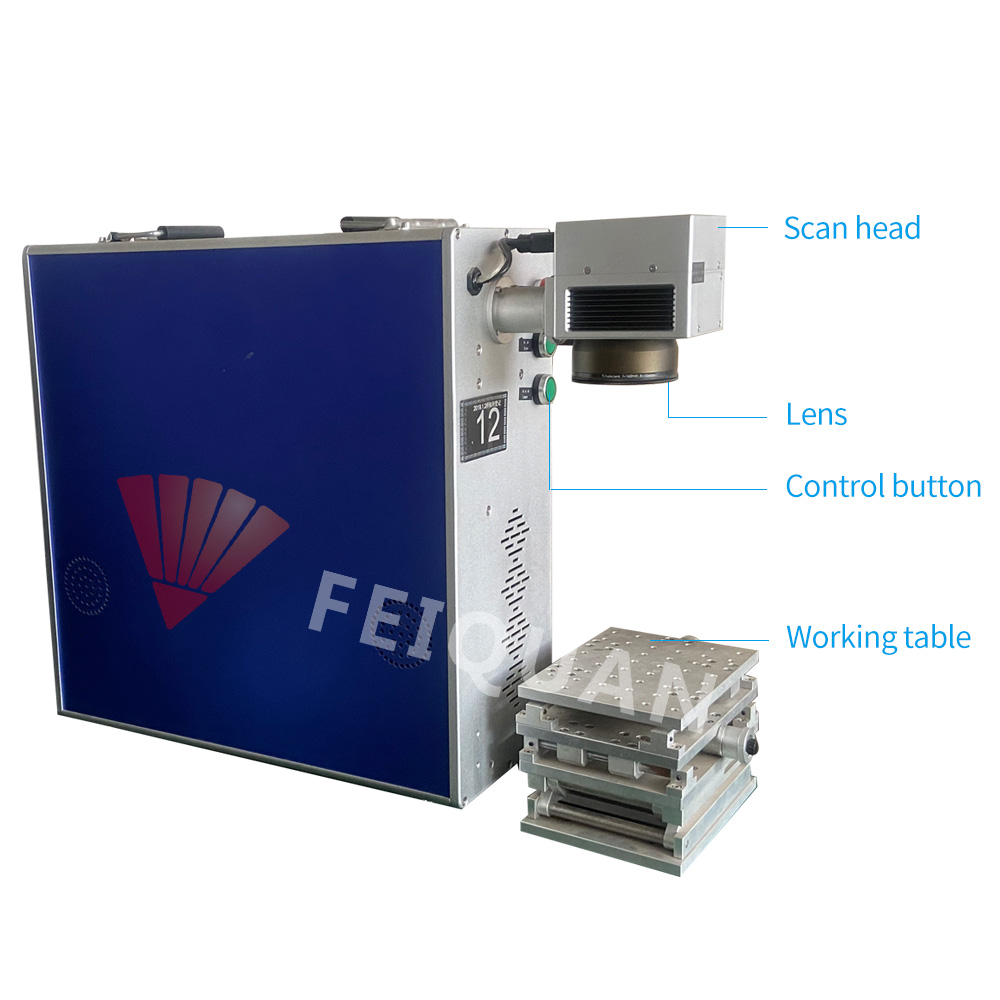

Portable fiber laser marking machine series use the brief design concept and integrated structure, small size and flexible, more portable , can be carried into the trunk. Having cooperation with Ruycus 、JCZ、sino and so on. It has excellent performance and exceptional quality.
Product Feature:
●With the brief design concept and integrated structure, it is so small and flexible to better meet the needs of different environments.
●Small size, more portable, can be carried into the trunk.
●Simple operation, high work efficiency, low operation cost.
●Integrated intelligent cloud site data acquisition capabilities, real-time data monitoring, equipment operating conditions, operating environment at a glance.
●Widely used in metal products, electronic communications, tool accessories, precision instruments, jewelry accessories, packaging materials, watches , glasses and many other areas of the graphics and text marks.
Product Name |
Portable Fiber Laser Marking Machine |
Model |
FMF20W |
Output Power |
20W |
Repetition Frequency |
30~60kHz |
Max. Single Pulse Energy |
1MJ |
Beam Quality |
TEM00(M2≤1.5) |
Wavelength |
1064nm |
Cooling Type |
Air Cooling |
Marking Area |
70x70mm/110x110mm/150x150mm/ |
Focus Mode |
Double Red Light(Auto Focus Optional) |
Marking Depth Single Time |
0.03~0.08mm |
Marking Speed |
7000~8000mm/s |
Repeat Accuracy |
<20μrad |
Mini Linear Width |
0.01mm |
Mini Character Size |
0.2mm |
Repeatability |
±0.001mm |
Ambient Temperature |
0~40℃ |
Voltage |
AC220/110V±10% 50/60Hz |
Power Consumption |
<800W |
We are a manufacturer of fiber laser marking machine, we also have a wide range of laser welding machines, laser cutting machines and laser cleaning machine. Contact for detailed specification and direct factory wholesale price for all laser machines.
