In order to further improve the processing efficiency and precision, reduce the labor demand and labor intensity, to meet the transformation and upgrading needs of the gear industry; Based on many years of experience in gear cutting automation, TOMAN can provide personalized comprehensive solutions for the hot front gear cutting process according to the different needs of customers, to meet customers' needs for automation, intelligence and personalized gear cutting process.

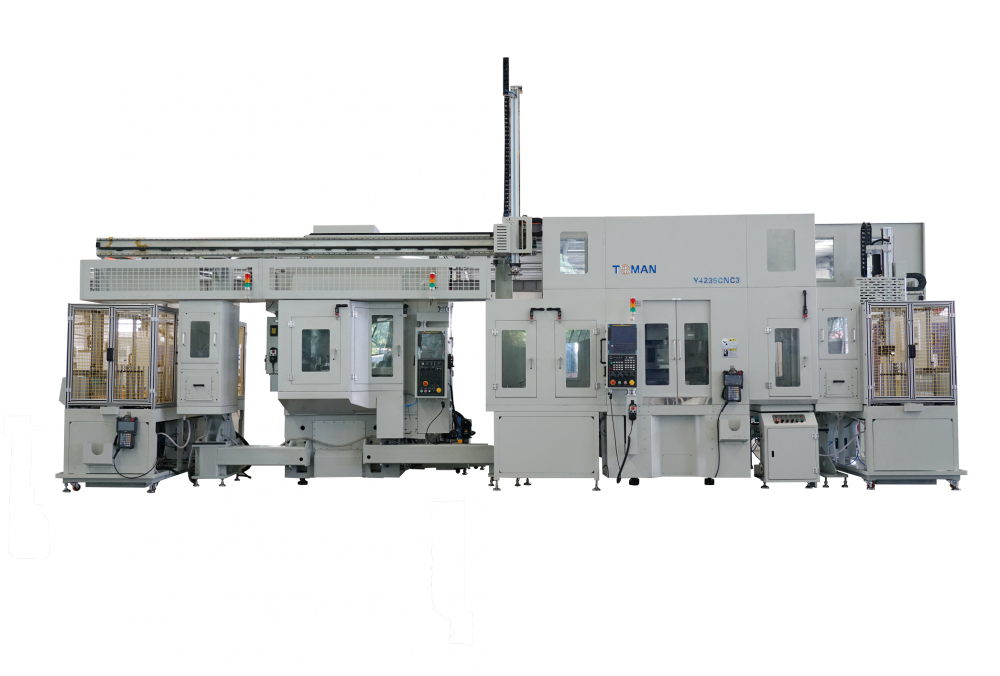

Gear hobbing / chamfering / shaving Automatic Production Line-Truss Robot Assembly Line

Composed of Hobbing machine with chamfering station, Automatic CNC Shaving machine, automatic loading and unloading bin, automatic oil slitter, automatic sampling table and truss mechanical arm and so on automatic equipment. According to customer needs, it can freely combine to complete all the gear processing procedures before heat treatment.

The layout of the automatic line neatly integrates the three processes of gear hobbing, chamfering and shaving with the automatic loading and unloading system. The whole production line has the characteristics of compact layout, small footprint, high production efficiency, simple debugging and maintenance, friendly man-machine operation and beautiful appearance etc.

Users can choose to perform part or all of the machining processes according to the different gear cutting processes before heat treatment. Such as skip the chamfering process and only choose hobbing and shaving machining, or skip the hobbing and chamfering process, and concentrate on shaving the products after hobbing, which is more flexible, can meet the requirement of multi varieties production in the future market.

Application:

The automatic production line is suitable for the mass production of middle and small modulus gears,such as gears in the Automotive Gearbox and Motorcycle fields etc.
