Product details

TES 2 Thermostatic Expansion Valve For Air Conditioner

Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in "dry" evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

Technical Data of T2/TE2 Thermal Expansion Valve:

Model	Equalization	Connection Type	Capillary Tube	Connection (inlet x outlet)		Equalization Connection
				inch	mm
T2	Internal	Flare (SAE)	1.5m	3/8'' x 1/2''	10x12	1/4'' (6mm)
TE2	External
T2	Internal	Solder (ODF)
TE2	External

Ordering Code of T2/TE2 Thermal Expansion Valve:

Connection Type	Equalization	R22	R407C	R134a	R404A/R507	R12
Flare (SAE)	Internal	TX2	TZ2	TN2	TS2	TF2
Flare (SAE)	External	TEX2	TEZ2	TEN2	TES2	TEF2
Solder (ODF)	Internal	TX2	TZ2	TN2	TS2	TF2
Solder (ODF)	External	TEX2	TEZ2	TEN2	TES2	TEF2

Capacity of T2/TE2 Thermostatic Expansion Valve:

Orifice no	Rated capacity in tons (TR)				Rated capacity in kW
Orifice no	R22	R407C	R134a	R404A/R507	R22	R407C	R134a	R404A/R507
0X	0.15	0.16	0.11	0.11	0.5	0.5	0.4	0.38
00	0.3	0.3	0.25	0.21	1	1.1	0.9	0.7
01	0.7	0.8	0.5	0.6	2.5	2.7	1.8	1.6
02	1.0	1.1	0.8	0.6	3.5	3.8	2.6	2.1
03	1.5	1.6	1.3	1.2	5.2	5.6	4.6	4.2
04	2.3	2.5	1.9	1.7	8	8.6	6.7	6
05	3	3.2	2.5	2.2	10.5	11.3	8.6	7.7
06	4.5	4.9	3.0	2.6	15.5	16.7	10.5	9.1

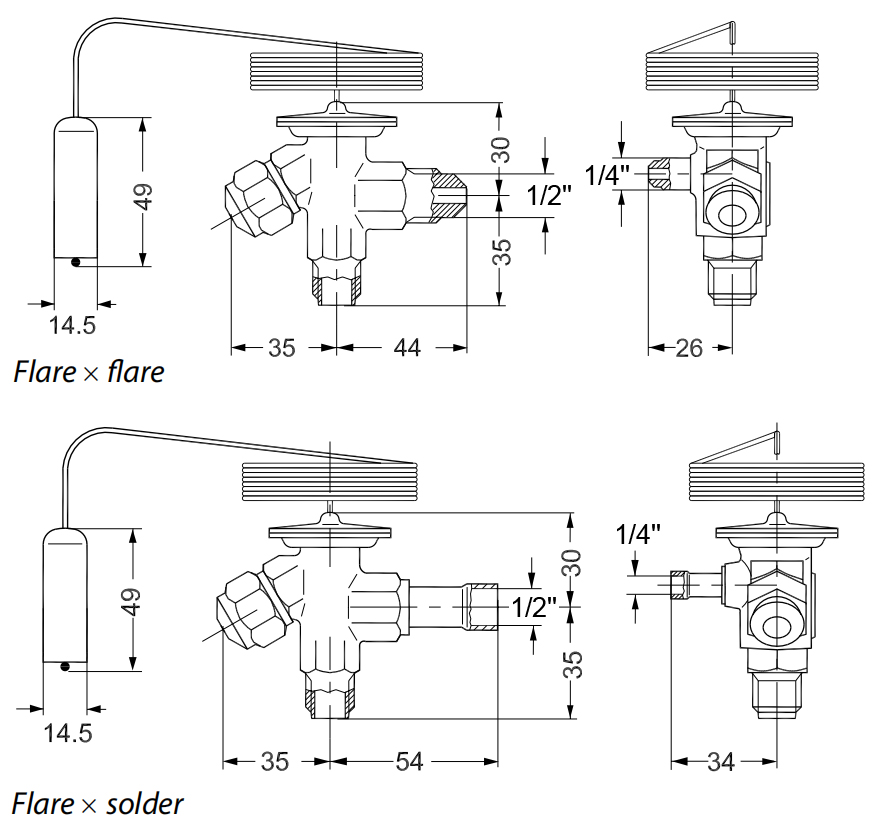

Dimension of T2/TE2 Thermostatic Expansion Valve:

dimension

More Refrigeration Parts for you to choose:


Refrigeration Solenoid Valve	Reversing Valve	Refrigeration Ball Valve

Hot Gas Bypass Valve	Crankcase Pressure Regulator	Sight Glass

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
