Goodyear Shoes Sole Stitching Machine LX-828​

Goodyear Shoes Sole Stitching Machine LX-828

Product Decription :

1. The Goodyear Shoes Sole Stitching Machine is for stitching upper and sole together, suitable for heavy soles and heavy work boots edges suture and right-angle perimeter shoes to penetrate seam processing; Especially goodyear shoes;

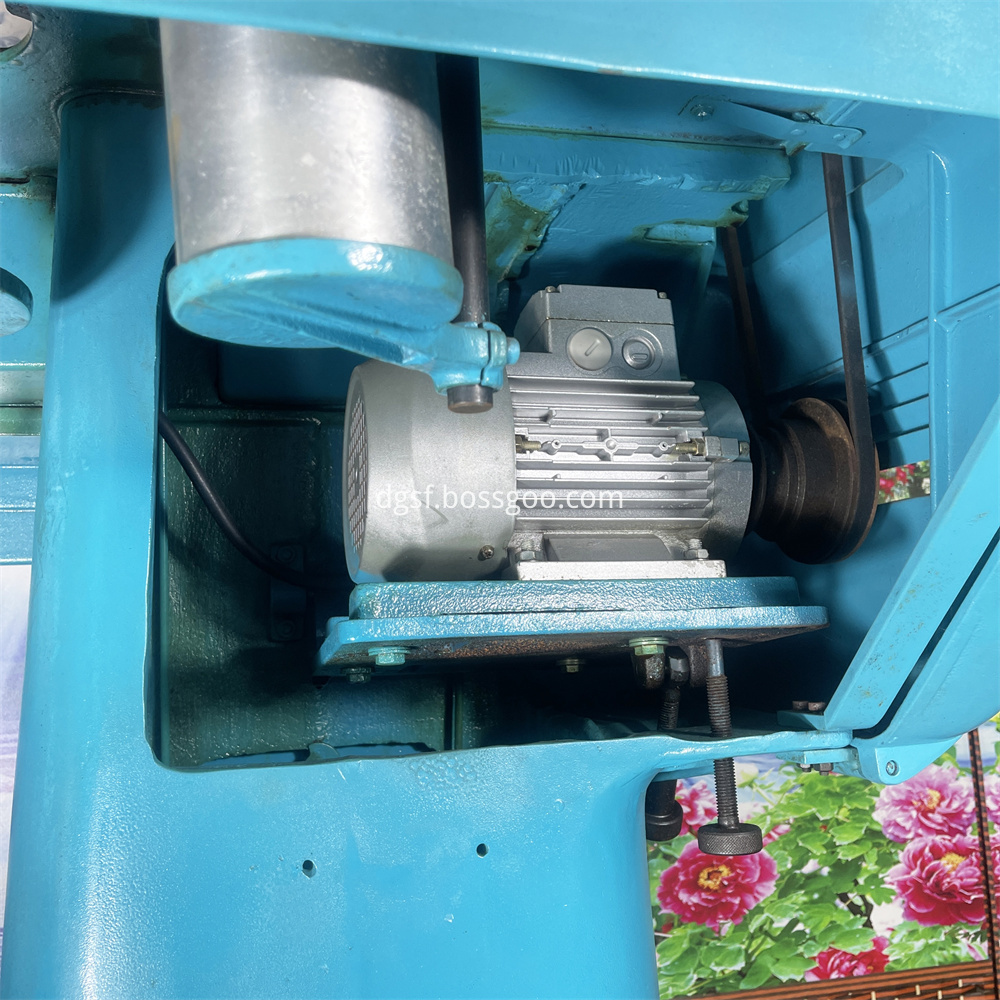

2. This Goodyear Shoes Making Machine using electronic speed motor speed can be flexible, stop the needle position by computer control.

3. All parts were controlled and manufactured by ourselves,this leather sole stitching machine with high precision machining parts.

4. ThisThis sole stitching machine with automatic oiling and durable.

5. This Shoe Machine productive capacity is very high;

Product Specifications:

Goodyear Shoes Sole Stitching Machine
Sewing speed Stepless speed regulating
Sewing thread Compound thread or linen thread
Stitch length 3.5-12mm
Sewing thickness 3-18mm
Sewing needle 200#230#260#curved hook needle
Model No.: LX-828
Brand Name: DGSF
Production Capacity: 700-800pairs/8 hour
Power(KW): 1.5KW
Voltage: 380V/220V
Net weight: 400KG
Gross weight: 430KG
Dimension(L*W*H): 830*950*1380MM
Packing Size (L*W*H): 930*1050*1580MM
Warranty: 1year
HS.code: 84532000
Country of origin: Made in China

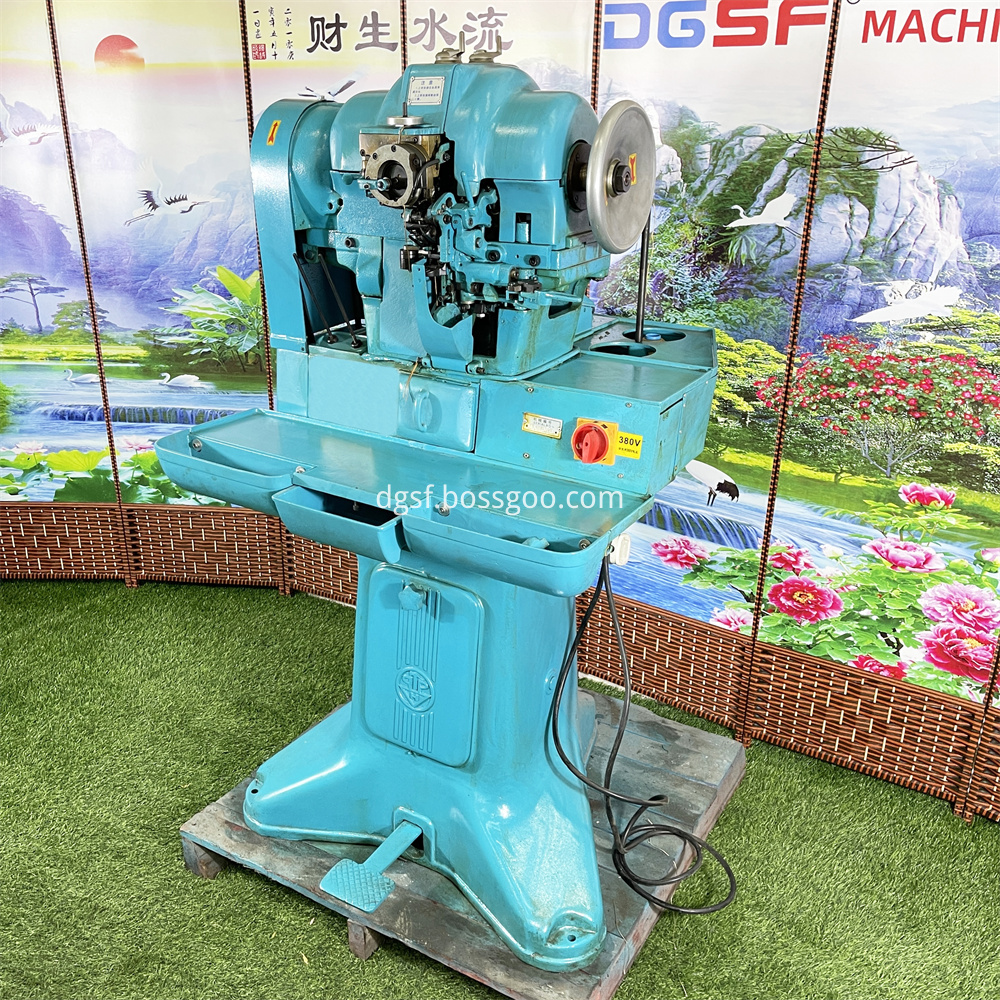

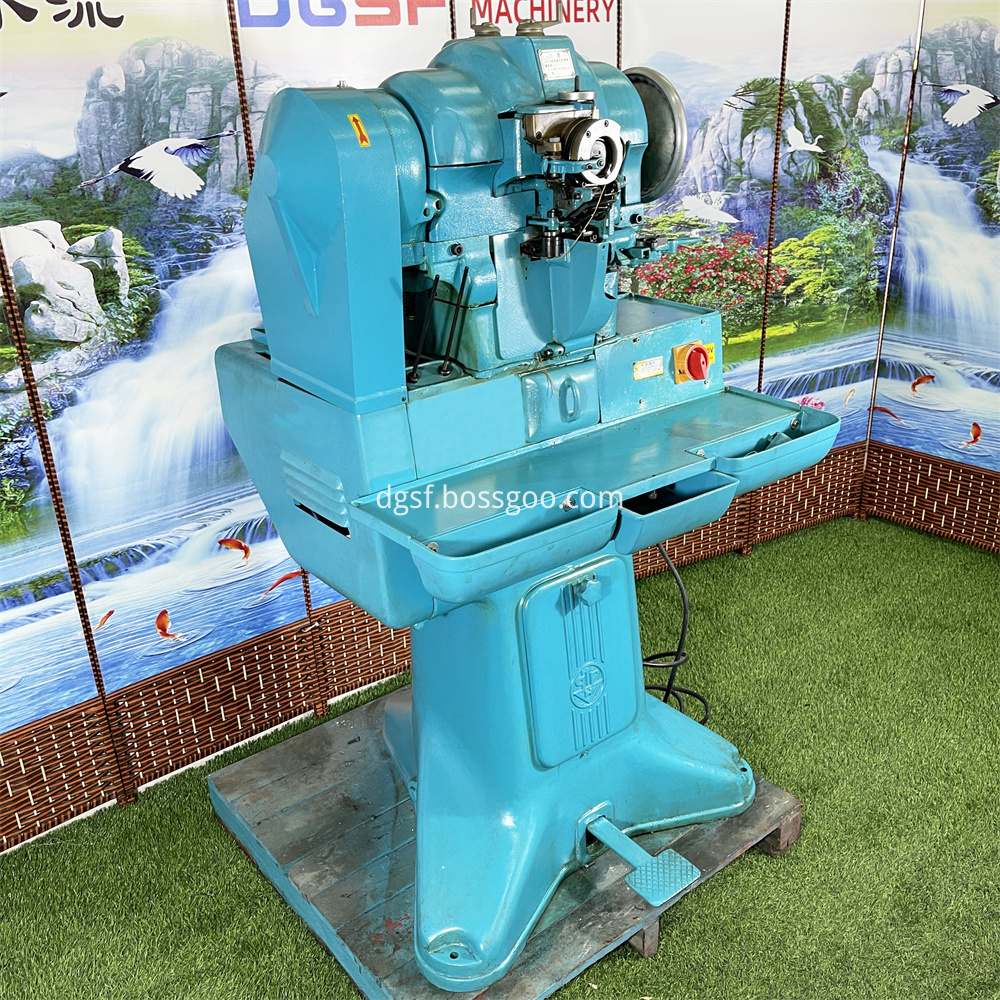

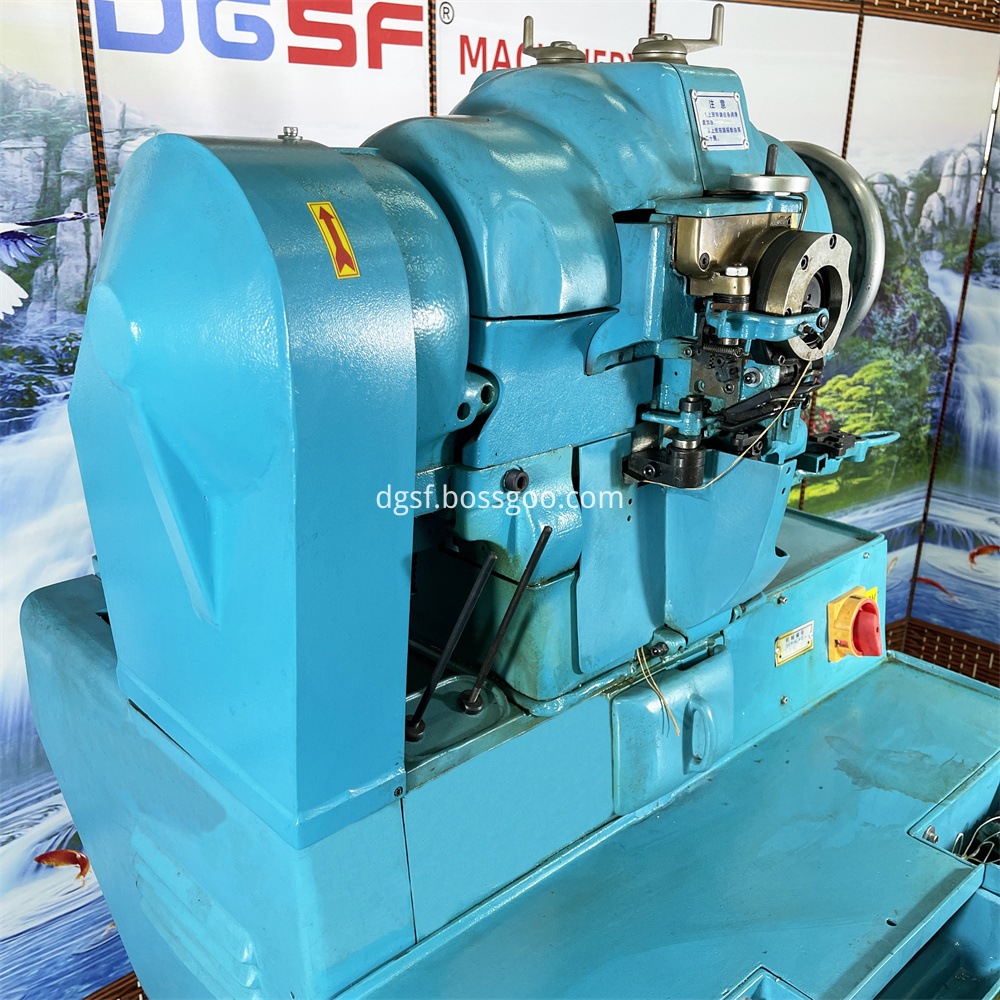

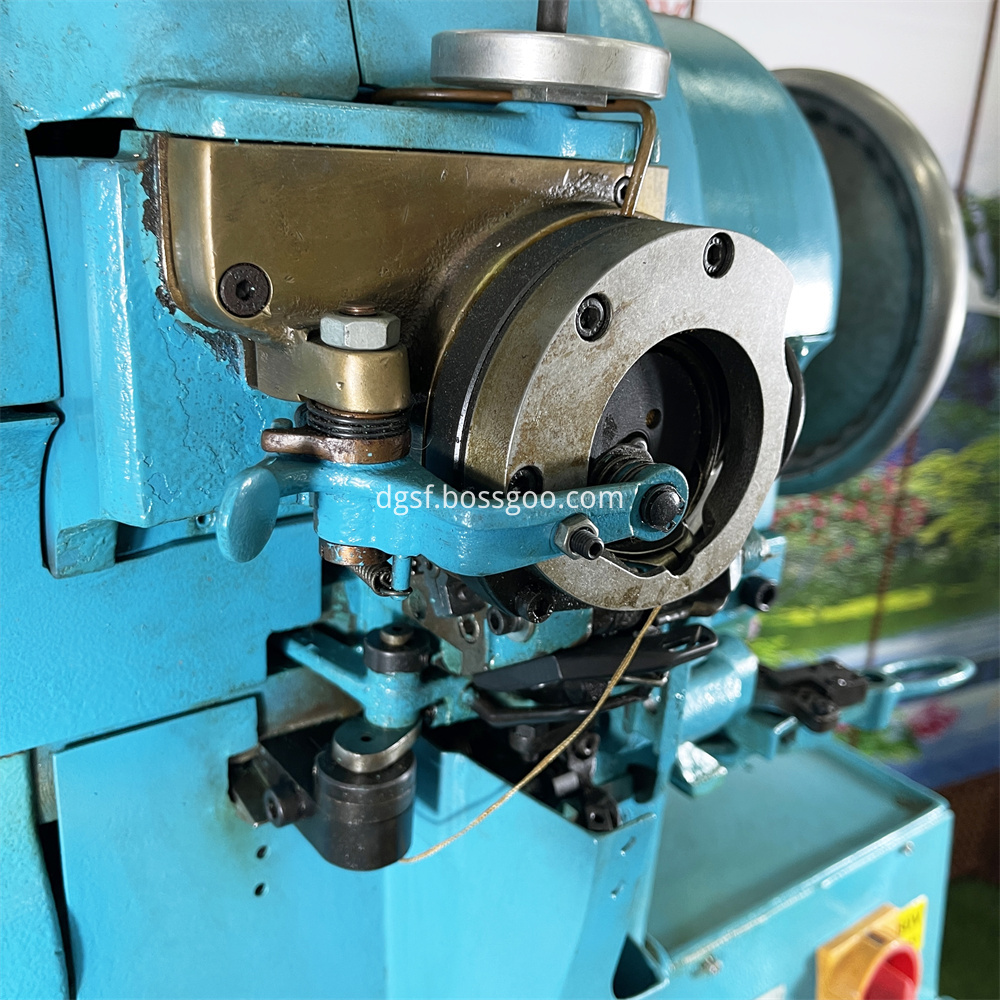

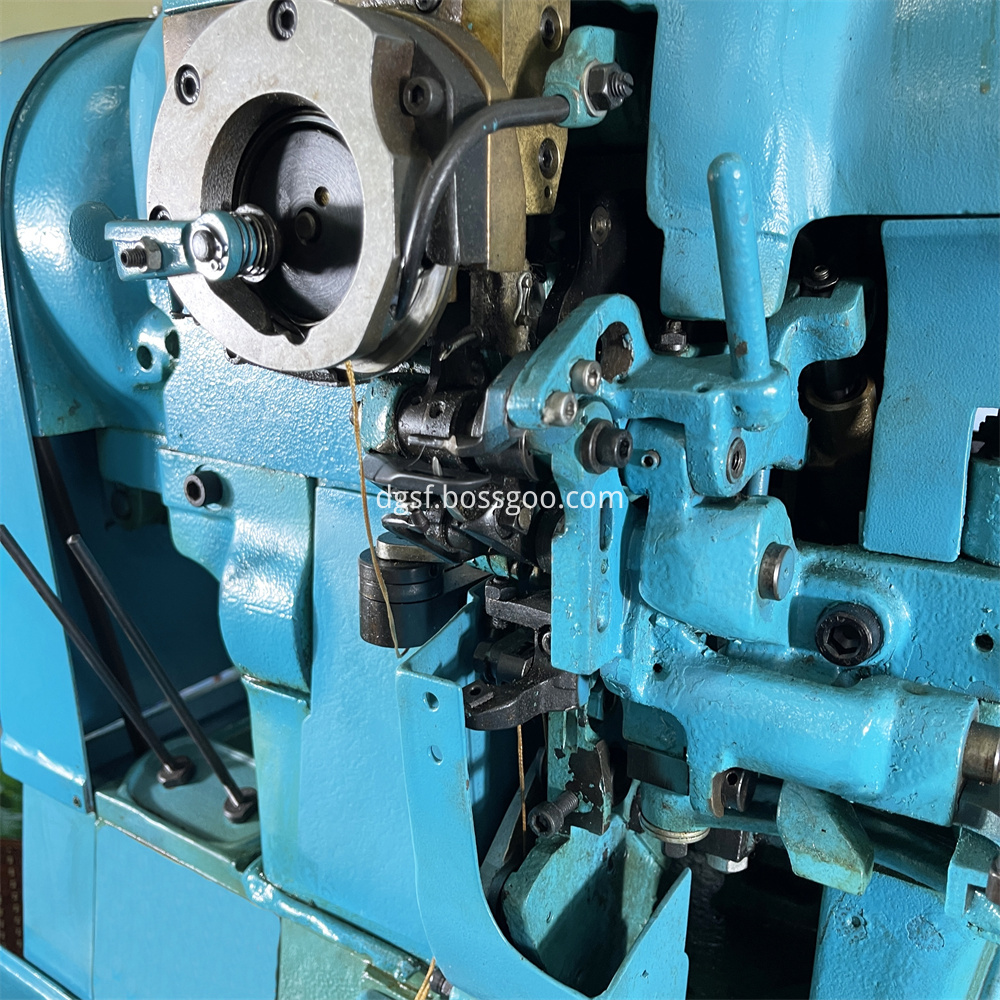

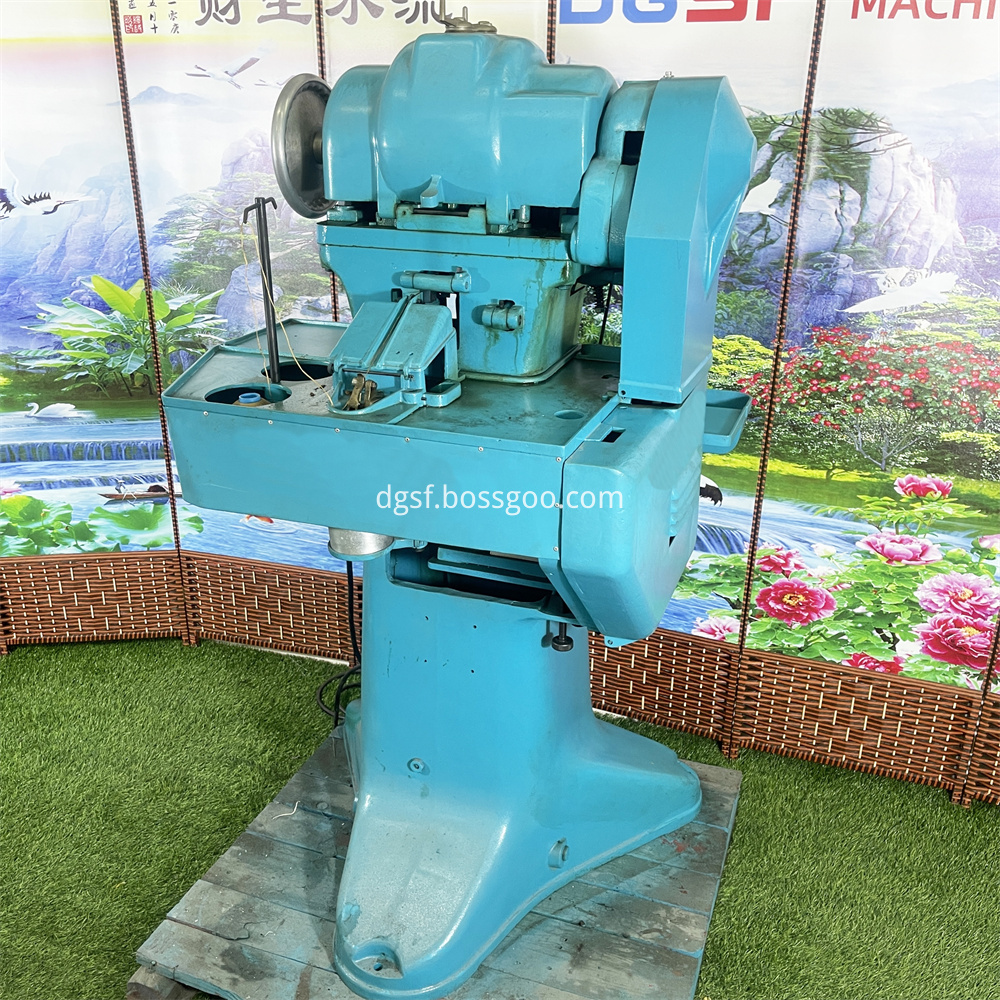

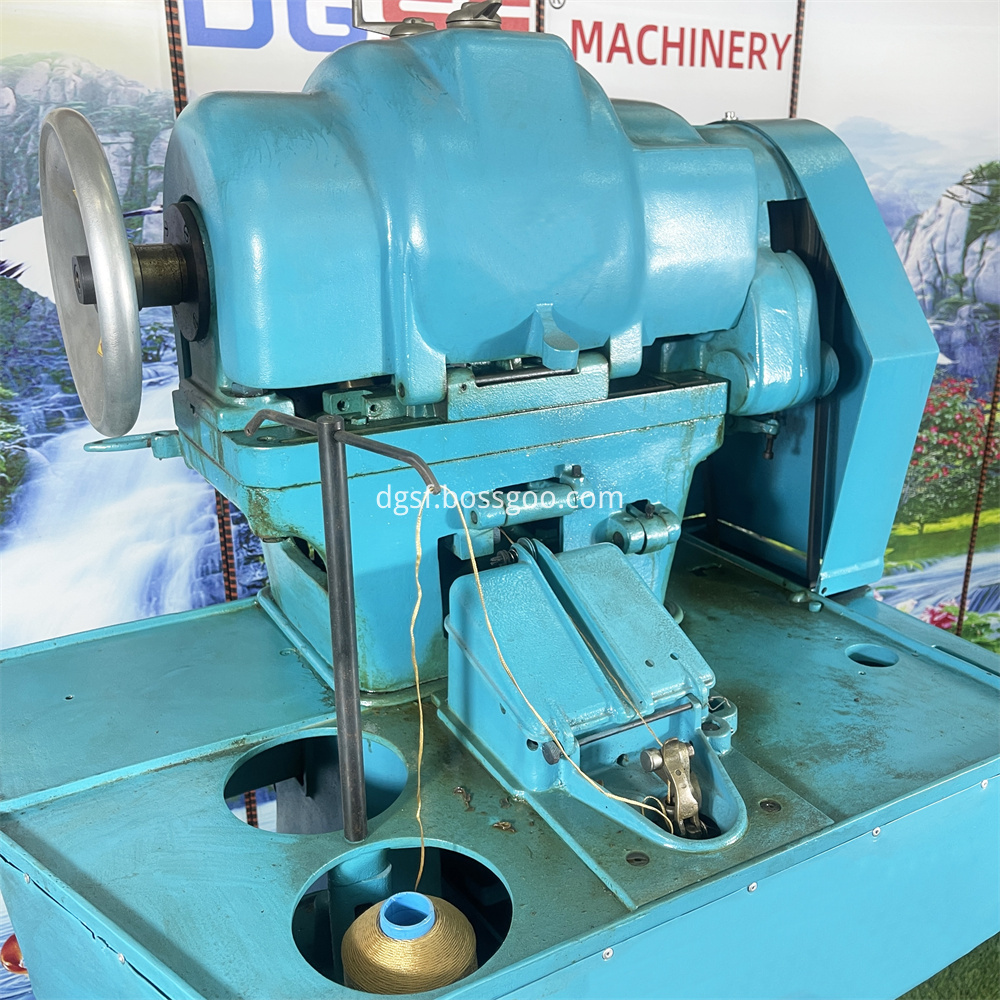

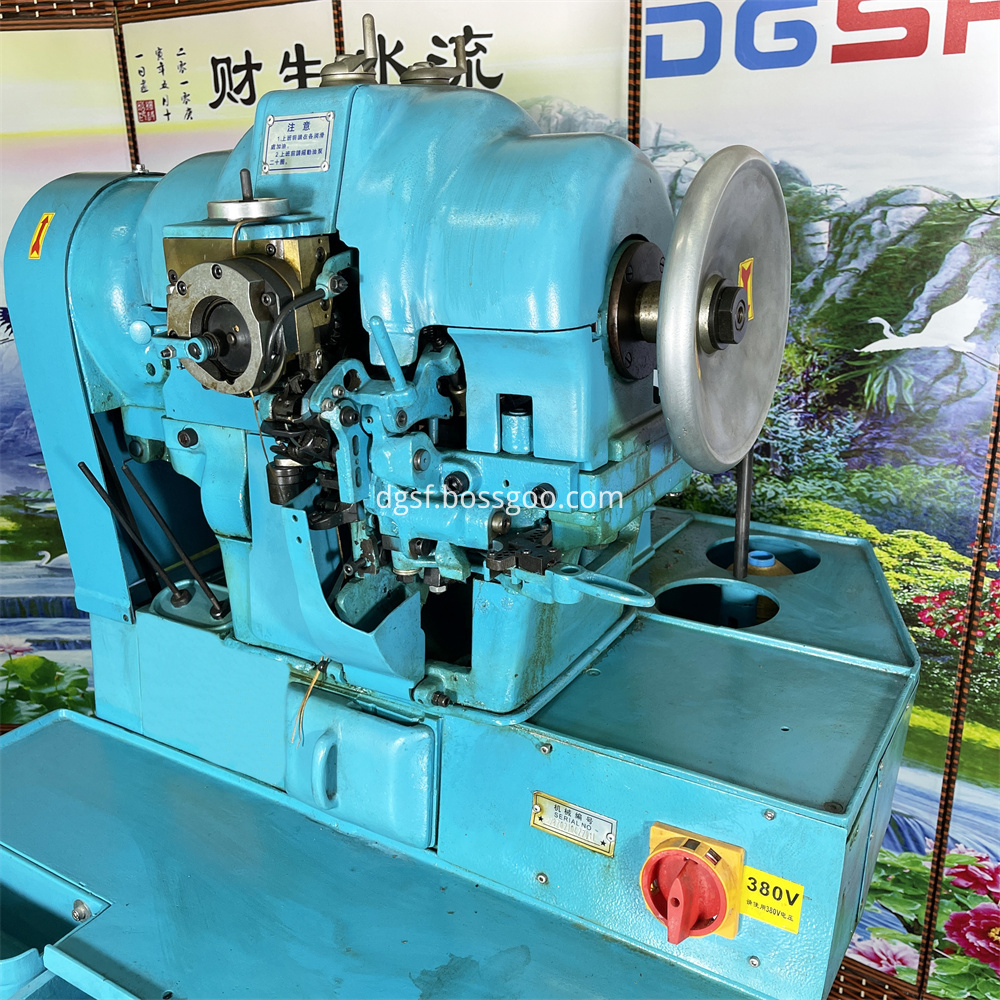

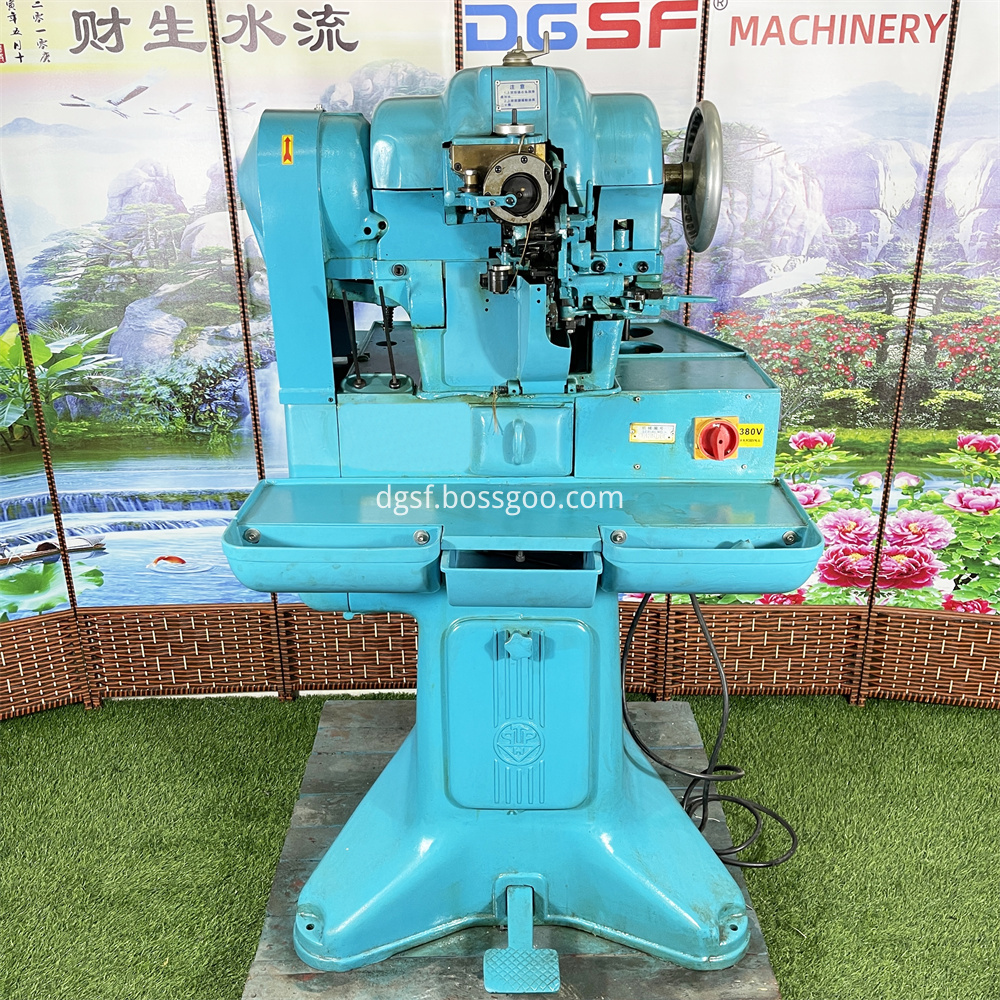

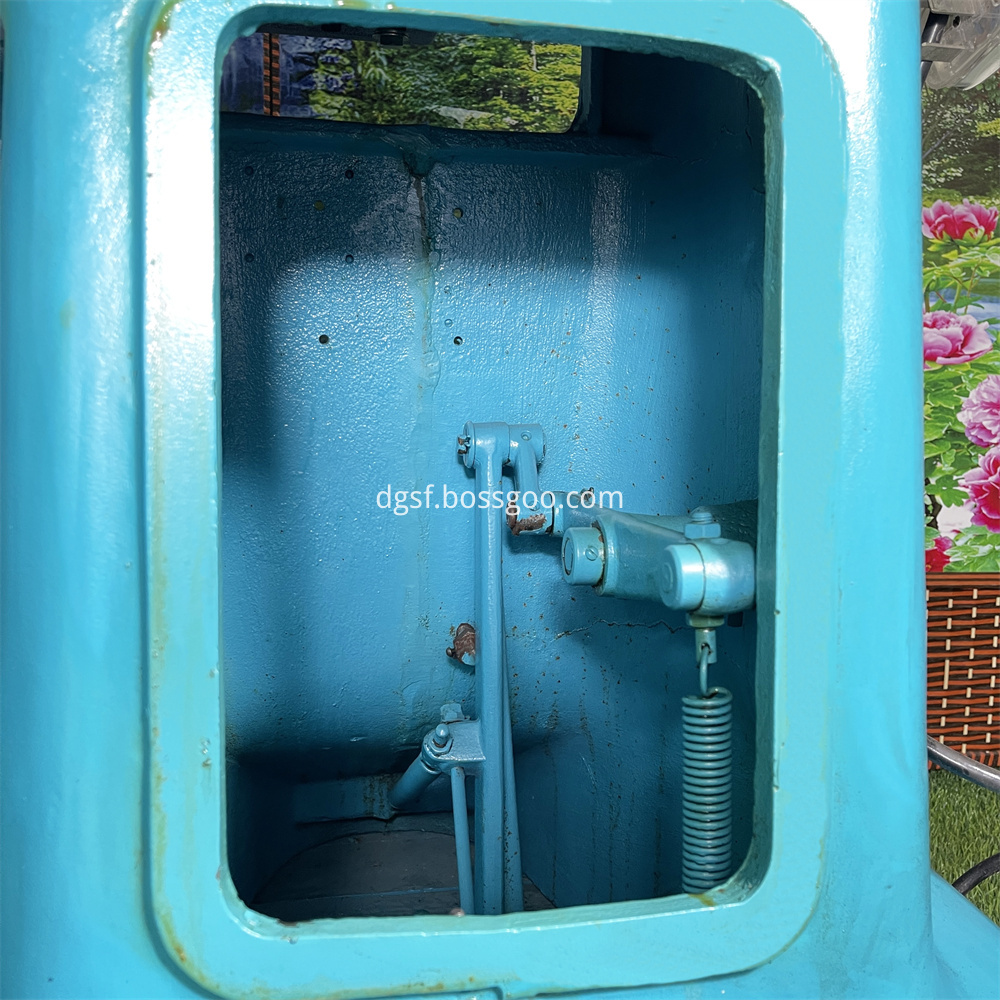

Product Image:
