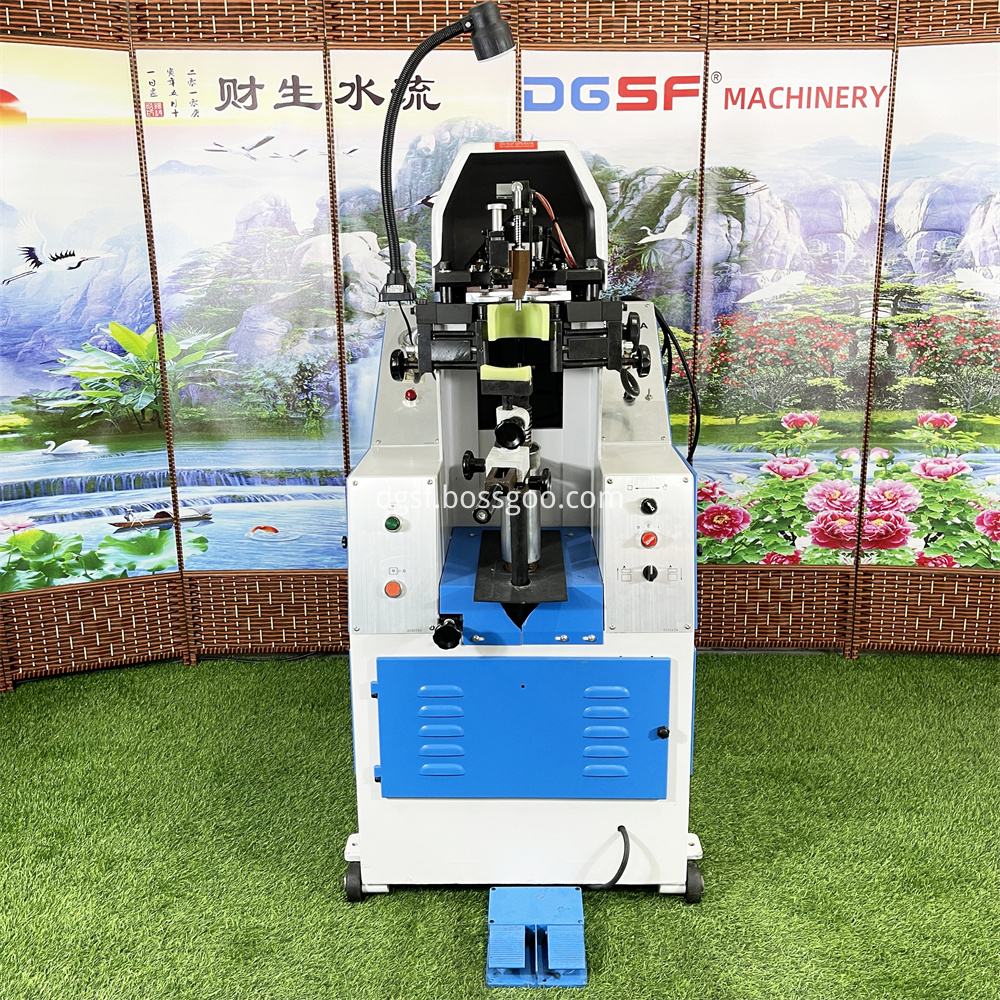

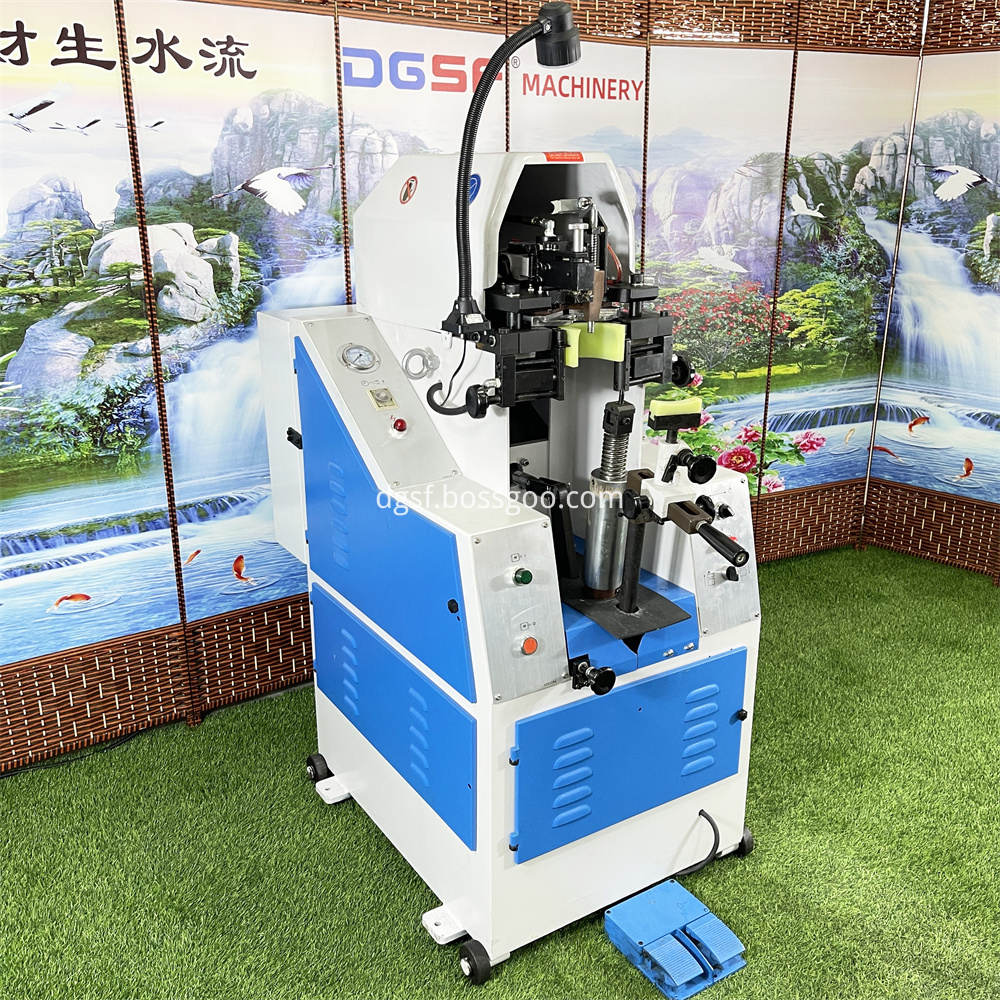

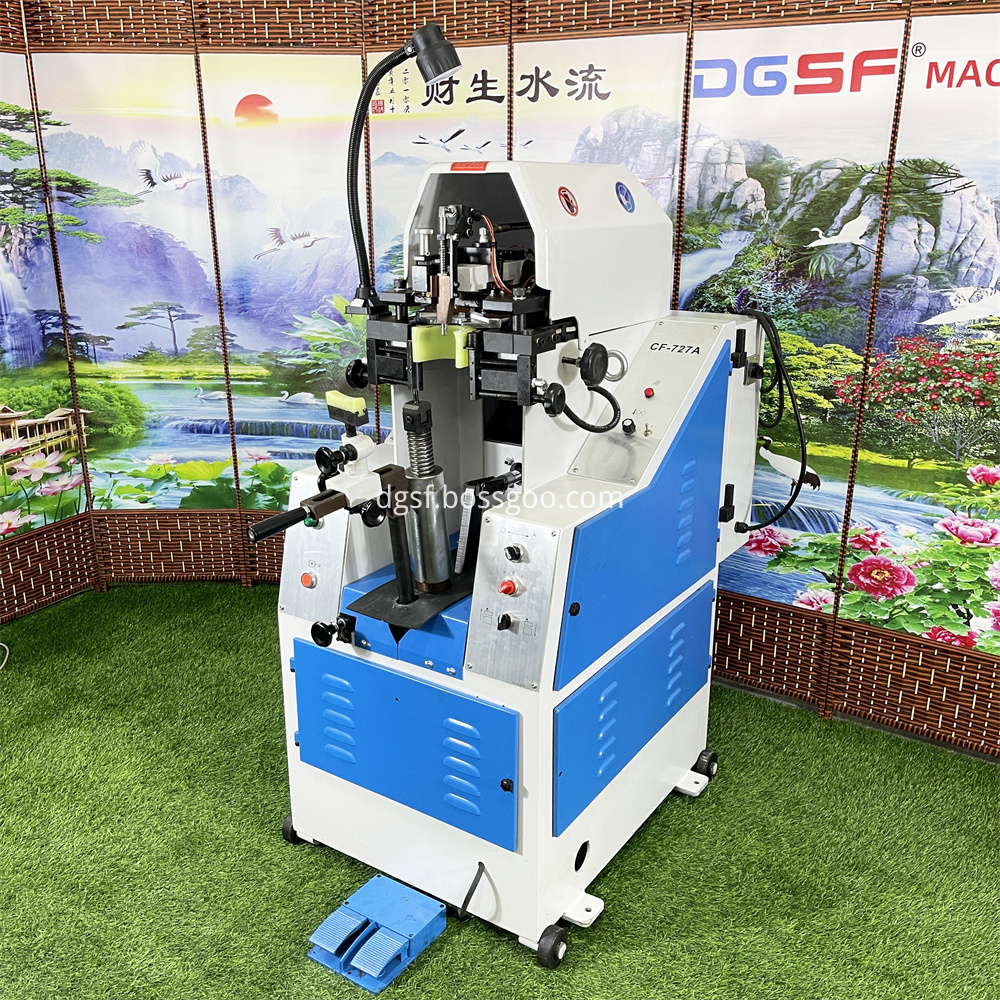

Renew Hydraulic Automatic Heel Seat Lasting Machine CF-727A
Product Description
Features: ( Without Hot-Melt system)
This Shoe Lasting Machine is equipped with the device of lasting height microswitch, which makes the machine easily adjusted and positioned accurately.

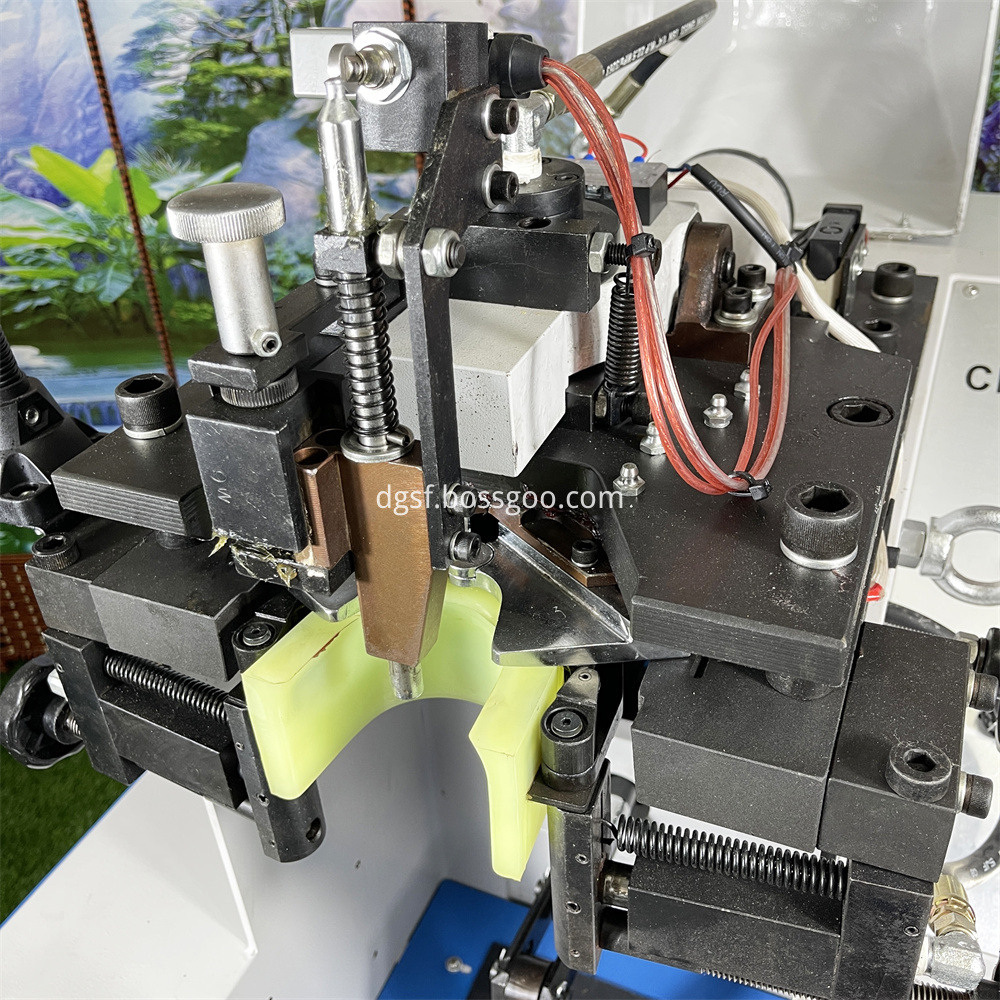

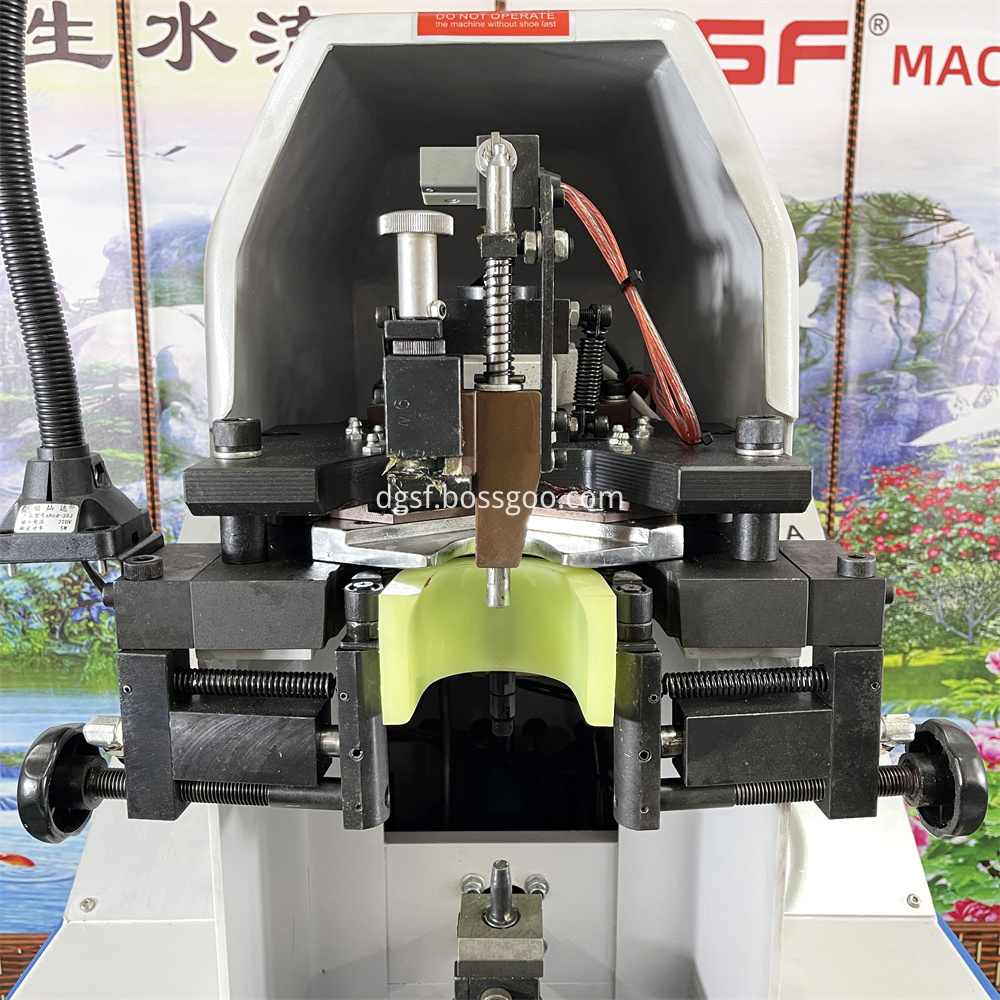

We have full sizes of Lasting Machine wipers and forming bands, which fit any shapes of shoes. The forming bands are wrapped by a chain and can accordingly produce a good forming effect.
This Shoe Lasting Machine adopts gears, gear racks and ratchets to quickly and precisely adjust the auxiliary supporter.
The second time and pressing of this Shoe Machine 's last supporter work with the wiper heating device to increase the lasting effect. It smooths the lasting areas and upgrades the quality of the shoes.
Specification:
Model CF-727A
Automatic cementing No
Motor power 2 HP
Heating power 1.00KW
Hydraulic pressure 50kg/cm²
Oil Pressure 50 kg/cm2
Capacity 1500-1800 pairs
N.W. 430KG
G.W. 460KG
Voltage 380V / 220V 50-60HZ
Hydraulic oil capacity 70 liters
Machine size(LxWxH) 750X970X1450 mm
Packing size(LxWxH) 1150x1220x2030 mm
HS.code 84532000
Country of origin Made in China
