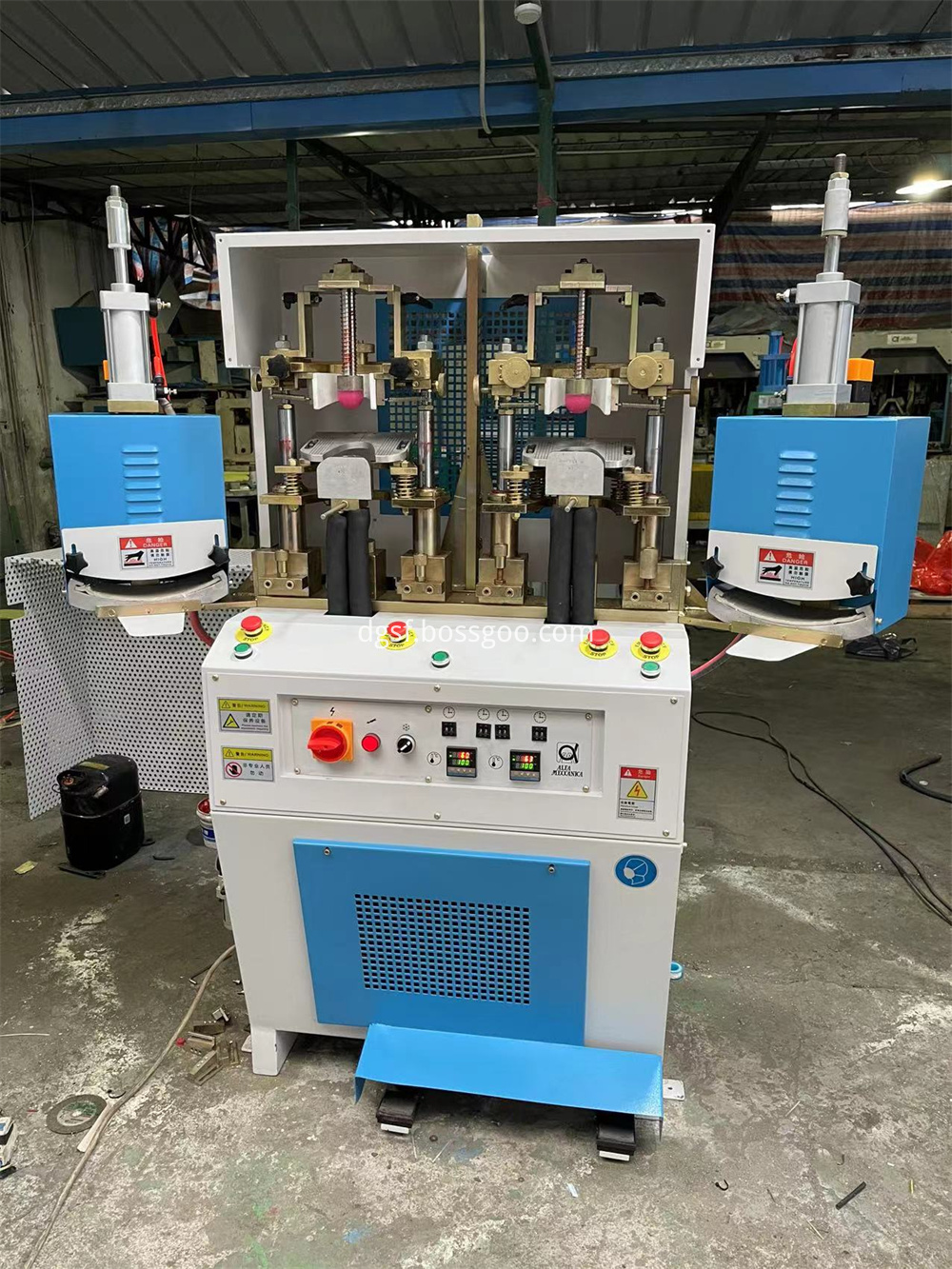

Renew Two Hot & Two Cold Toe-part Forming Machine YL-827
3 year ago
Renew Two Hot & Two Cold Toe-part Forming Machine YL-827
Product Description
The operator can introduce any kind of set values of machine cycle, hot and cold mould temperature and also receive warning in case of malfunctions.

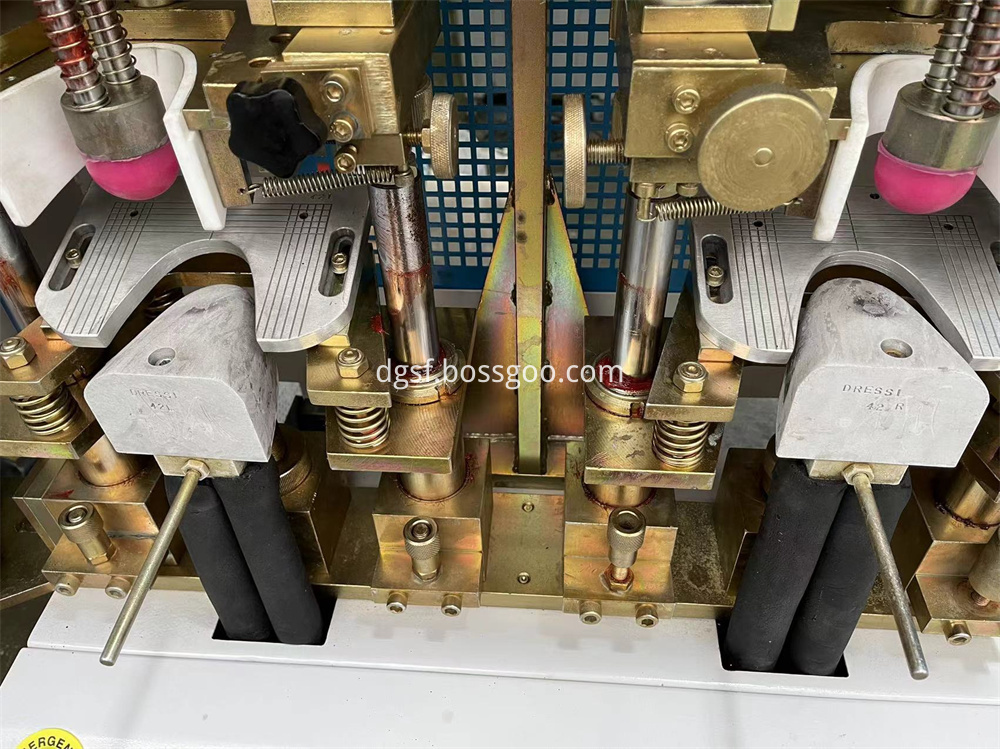

Complete adjustment for outer and inner molds, flanging wipers and pincer gives the possibility to work from baby size to men size including skate boots.
Optical projector or pneumatic positioning upper device for models with wipers; the operating cycle the column moves up to the rubber cushion, then rubber cushion gets close and make wiper movement.
Following is the list of our most spread and known hot/cold models, because of the modularity of this series, it is possible to develop other required machines. If you have, please contact us.
Specification:
Model No.: YL-827
Product name: Two Hot & Two Cold Toe-part Forming Machine
Brand name: YiLi
Certification: CE
Computerized: Yes
Hot molds: Two
Cold molds: Two
Voltage: 220V
Power: 2.7KW
Color: Red & white, Blue & white, full white
Measurement: 1560 × 850 × 2000 (mm)
N.W: 571 kg
Capacity: 1100~1500prs/8hrs
Air Pressure: 6BAR
