Indoor P2.976 500MM*500MM HUB Die-casting Aluminum Led Display

Produt Feature:

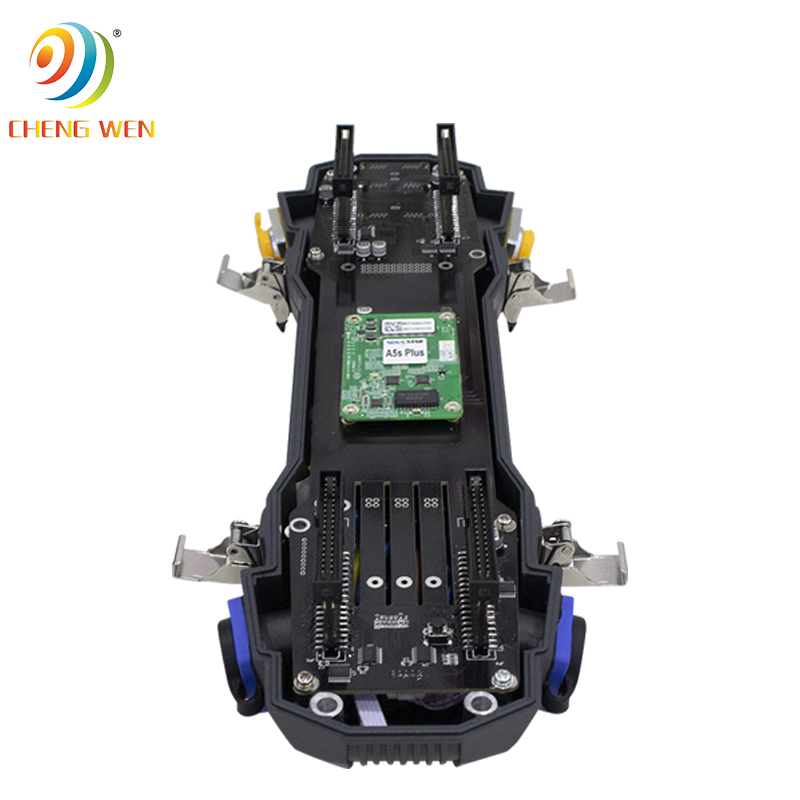

• HUB board design; A5S/8S/10S nova receiving cards optional
• Front-service of led modules;
• Die-casting aluminum cabinet with light weight, curved or flat straight are available;

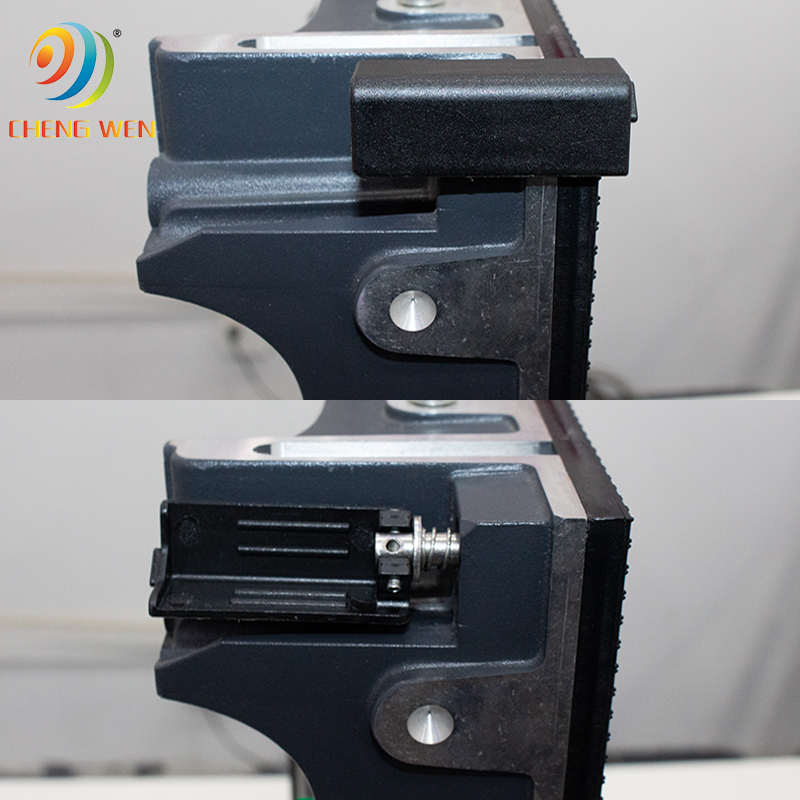

• Fast lock for quick installation, help saving time for events arrangement.
• Seetronic connectors for power and data, making sure the long lifetime of plug in and plug out.
• 500*500mm/500*1000mm cabinet size available and can be used together.

Indoor Rental Stage P2.976 500mm*500mm Die-casting Aluminum Led Display Panel is one of our high-end model for big stage events, cabinets can make straight or curved design, led module can be magnetic. Back maintenance and front-service are available. Control system is Novastar A5S as standard instead of our usual practic with MRV328 receiving card and MSD300 sending card. If customers need customized HUB A5S/A8S/A10S cards, you can check with us. We have many private design or common cabinets design options. 1920hz or more than 3840hz high refresh rate can be customized. You have at your disposal professional manufacturer in stage lighting&led display screen production, with ＞5000sqm workshop space, more than 10 years bulk production experience, 8 years exporting business. Your requirements are our orders.We beleive that our hard work and professionalism will lead to a win-win situation.

We have prepared many stock equipments varied from beam lights, moving head lights, cob, wash bar lights, together with all-rounded LED Digital Signage display solution, such as indoor and outdoor led display screen rental, fixed advertising billboards, sport Stadium screen panels and poster led display, etc. Cabinets material can be die-casting aluminum and iron cae. Application in congresses, presentations, concerts, entertainment, venue, shows, sport stadium, artistic and corporate events, theaters, clubs, dj bars, etc.

There is always an extra discount coupon for my clients. To get more extra discount, pls share your order details with

Sales Director Gina Deng.

Specification

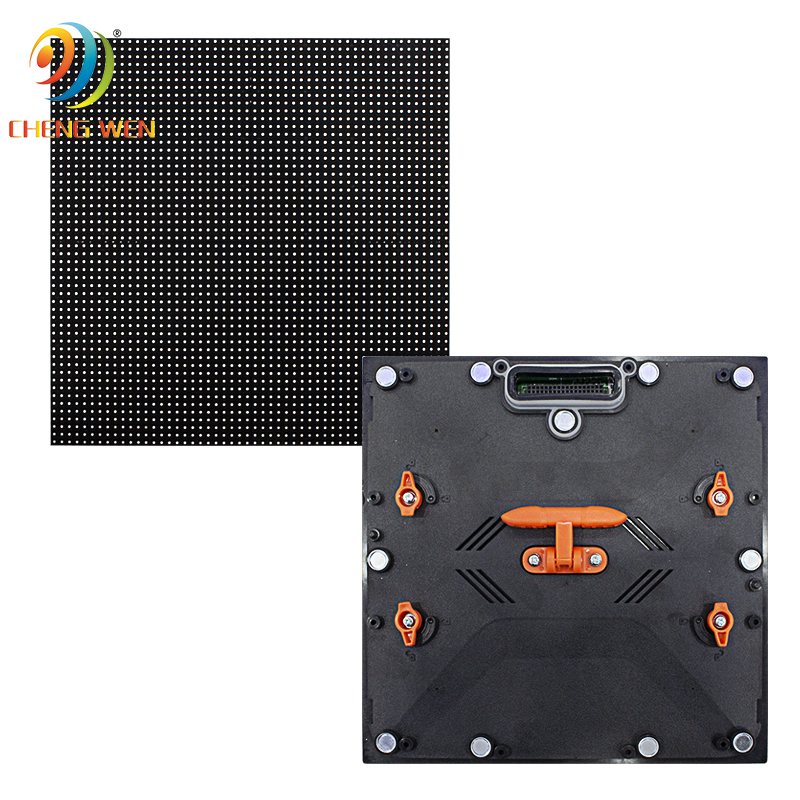

Unit module

Model number: p2.976-28s

Model size: 250mm*250mm

Pixel pitch: 2.976mm

Pixel density: 112896 dots/m2

Cabinet size: 500mm*500mm

Pixel configuration: 1R1G1B

Package mode: SMD2121

Pixel resolution: 84 dots(W)*84 dots(H)

Drive type: consistant drive

Scan mode: 1/28scan

Port type: HUB75

Max power comsumption: 16w

Brightness of white balance: ≥2000cd/m2

Quantity of module: 4pcs

IP rate: IP43

Power supply: 5V/60A*1PCS

Best viewing distance: 3~30m

Temperature: storage:-35-80℃

Working:-20-50℃

Operation humidity: 10%-95%

Thickness: 85mm

Visual angle: level 110 degree, vertical 45 degree

Power
Working voltage: AC220V±10%
Average power consumption: 400w/sqm

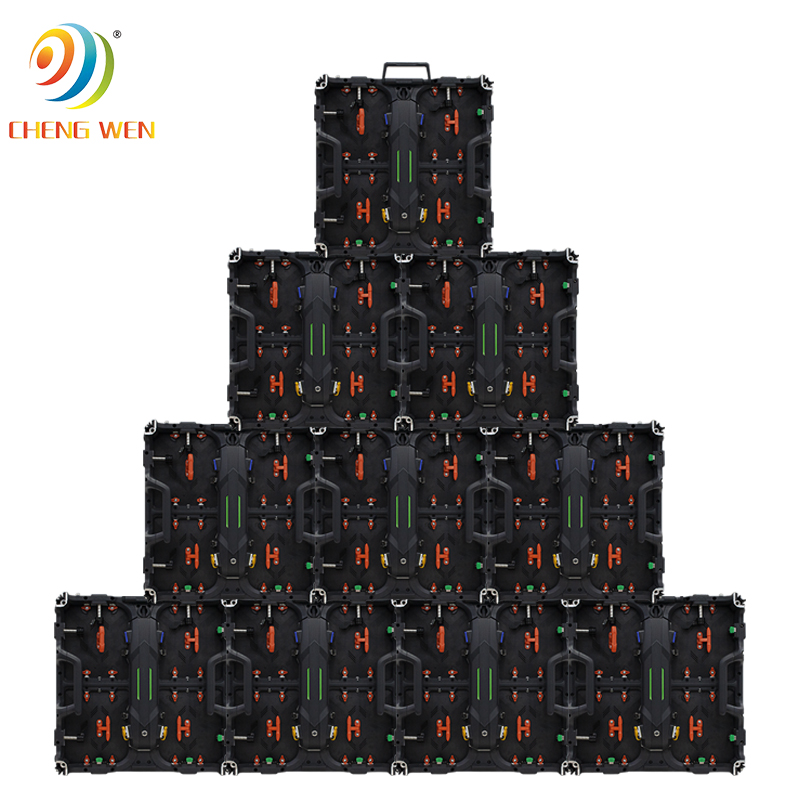

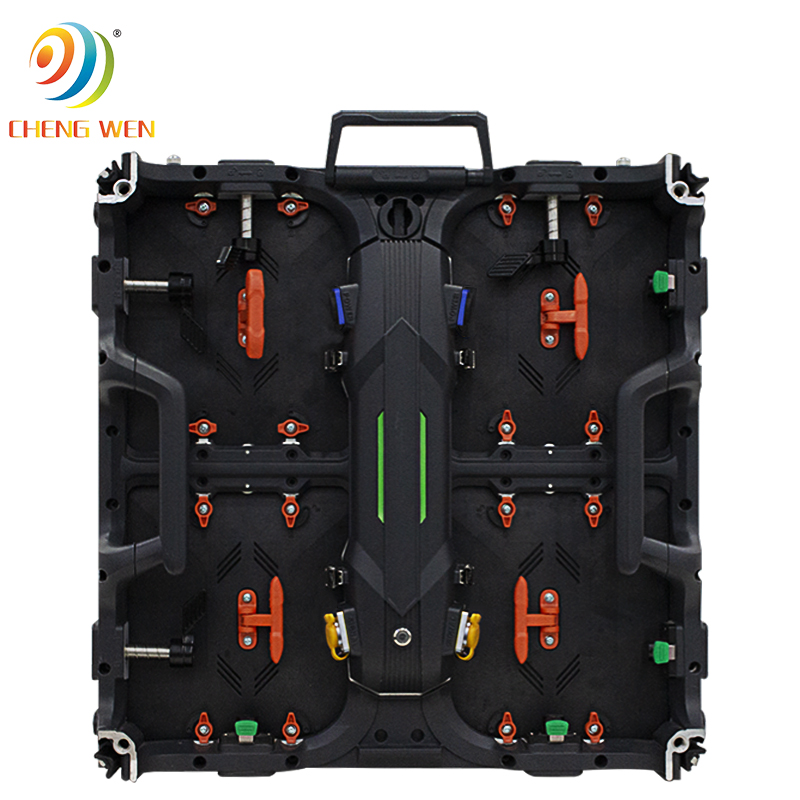

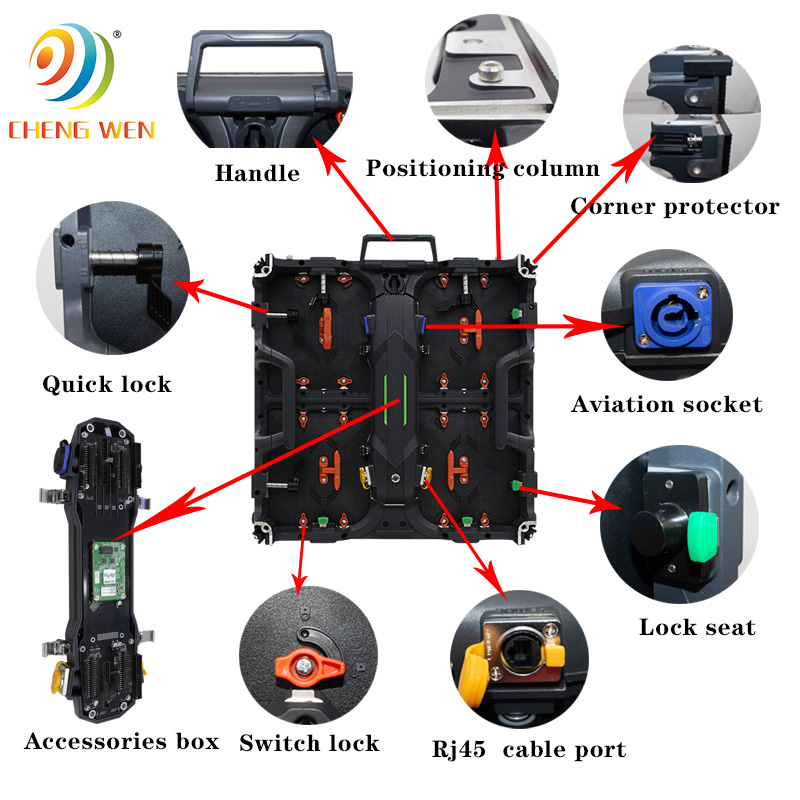

Product Show

Workshop

Aging and testing

Exhibition

 Certifications

Projects

Package & Delivery

Service

 FAQ

Q1. Can I have a sample order for led light?
