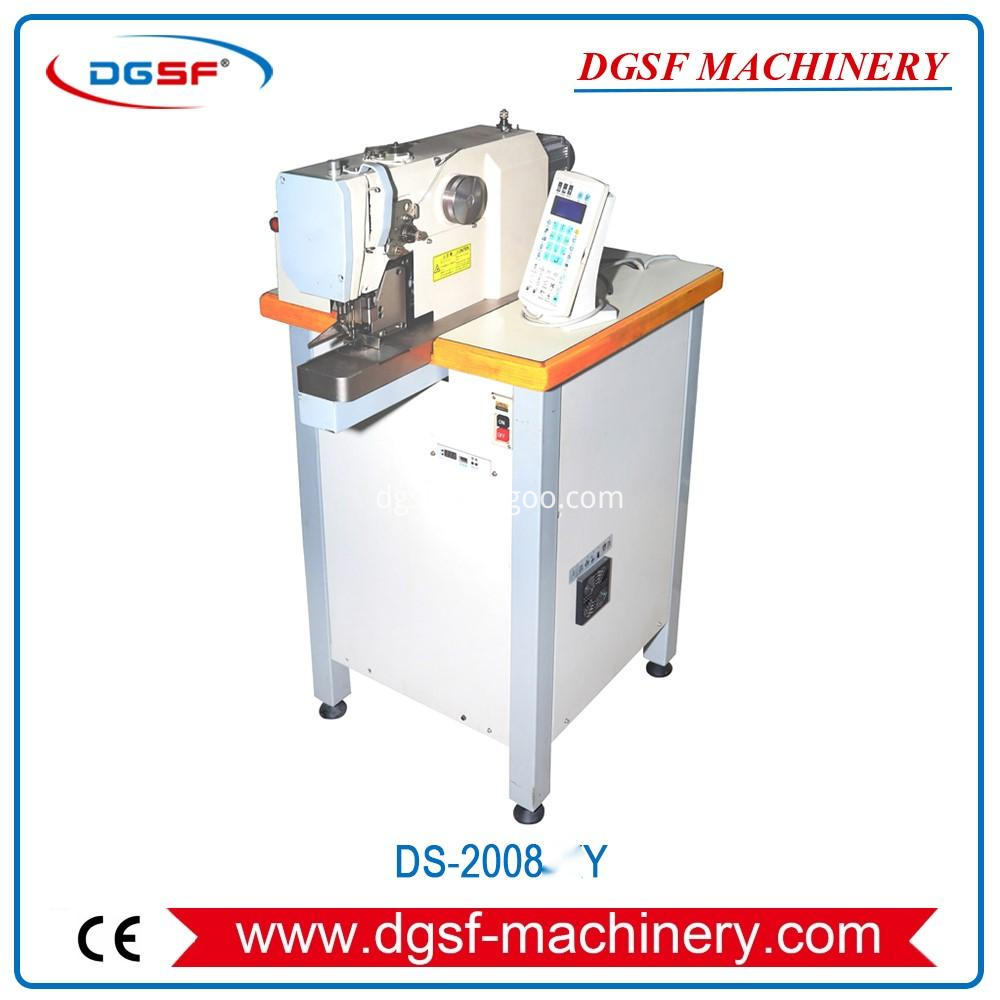

Straight Line Industrial Automatic Buckle Sewing Machine DS-2008-Y with PFAFF Head
3 year ago
Automatic Belt Buckle Stitching Sewing Machine for Leather Belt with PFAFF Head DS-2008-Y
Product Description
1. Applicated for buckle component stitching, such as leather bag, man or women belt, webbing, backstrap.
2. With back feeding stitching and lock stitch function, to ensure the thread in neat and beautiful.
3. High pressure double crank to control the die opening and closing.
4. Running in high automatization and intellectualization without pullution.
5. Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
Feature
1) The maximum width of vehicle belt is 55mm;
2) 99 Patterns can be saved;
3) Double line back and forth for 5 times;
4) Mitsubishi Electric Motor;
5) European/British version of operating system;
6) With PFAFF sewing head.
Model: DS-2008-Y
Sewing rang :Sewing Range:Y: 80mm
Sewing Speed:1800rpm
Sewing Thickness:1mm - 8mm
Needle Distance:0.1 - 12.7mm
Presser Foot Lifting:15mm
Memory Device:USB
Sewing Needle:DP *17 (#16 - #23)
Hook:Double horizontal capacity hook
Voltage:1-phase 220V
Motor:750W Mitsubishi Electric Motor
Weight：98KG
Machine size: 780*680*1120mm
