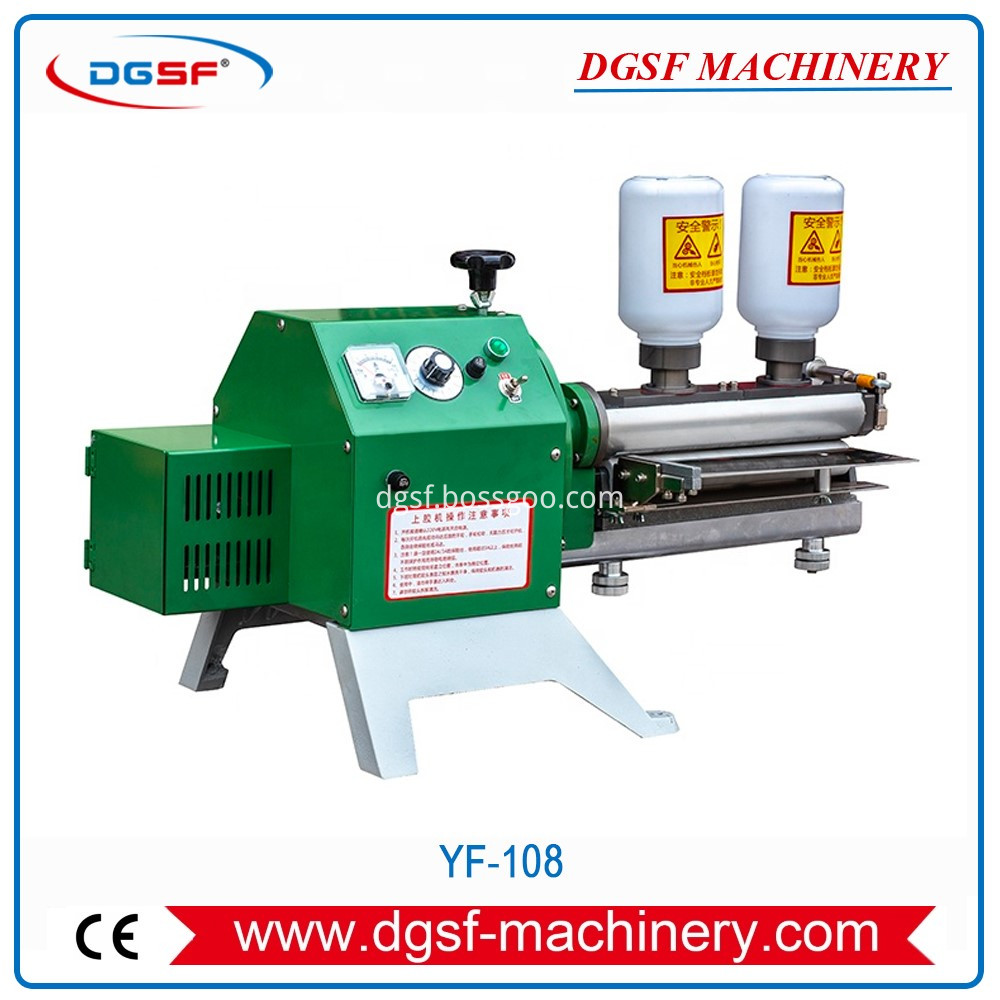

360 Adjustable Gluing Machine YF-108
3 year ago
360 Adjustable Gluing Machine YF-108
Product Description
The machine is suitable to work on solvent glue, PU glue and other non-fast dry glues;
With the plastic separate glue bottom, can easily remove the glue after using, and keep the glue from drying ;
The gluing machine head is 360°adjustable, after using can turn the glue bottle to bottom, then the glue in the glue tank follow back to bottom, glue will not be dry and no leakage.
It is also easy to remove the glue left with the roller with white petrol to keep the machine clean and increase the life span;
It is easy to adjust the working speed of the machine, and the thickness of the machine according to different material;
Bottom roller is silicon rubber roller, so even edge skived can also apply the glue evenly;
Different working area available at your choice, 6mm, 9mm, 20mm, 35mm, 75mm, 100mm, 150mm, 200mm, 300mm and even 400mm.
Technical Data:
| Voltage | Power | Gluing Area | Machine Size | Weight |
| 220V 50-60HZ | 1/8H.P. | 35mm | 48x 50 x 36cm | 27KGS |
| 220V 50-60HZ | 1/8H.P. | 75mm | 53 x 50 x 36cm | 29KGS |
| 220V 50-60HZ | 1/8H.P. | 100mm | 55 x 50 x 36cm | 36KGS |
| 220V 50-60HZ | 1/8H.P. | 150mm | 60 x 50 x 36cm | 39KGS |
| 220V 50-60HZ | 1/8H.P. | 200mm | 65 x 50 x 36cm | 42KGS |
| 220V 50-60HZ | 1/4H.P. | 300mm | 75 x 50 x 36cm | 50KGS |
