Product details

Cantilever Screw Locking Machine adopts vacuum suction screw method, high universality, overcome the blowing screw can’t send the screw length diameter ratio less than 1.2mm, also overcomes the disadvantage of magnetic suction way can’t suction stainless steel screw . for M1.0 – M4.0 screws all can be applied, such as screw size changed, just need to change the suction nozzle.

Hw 30b2

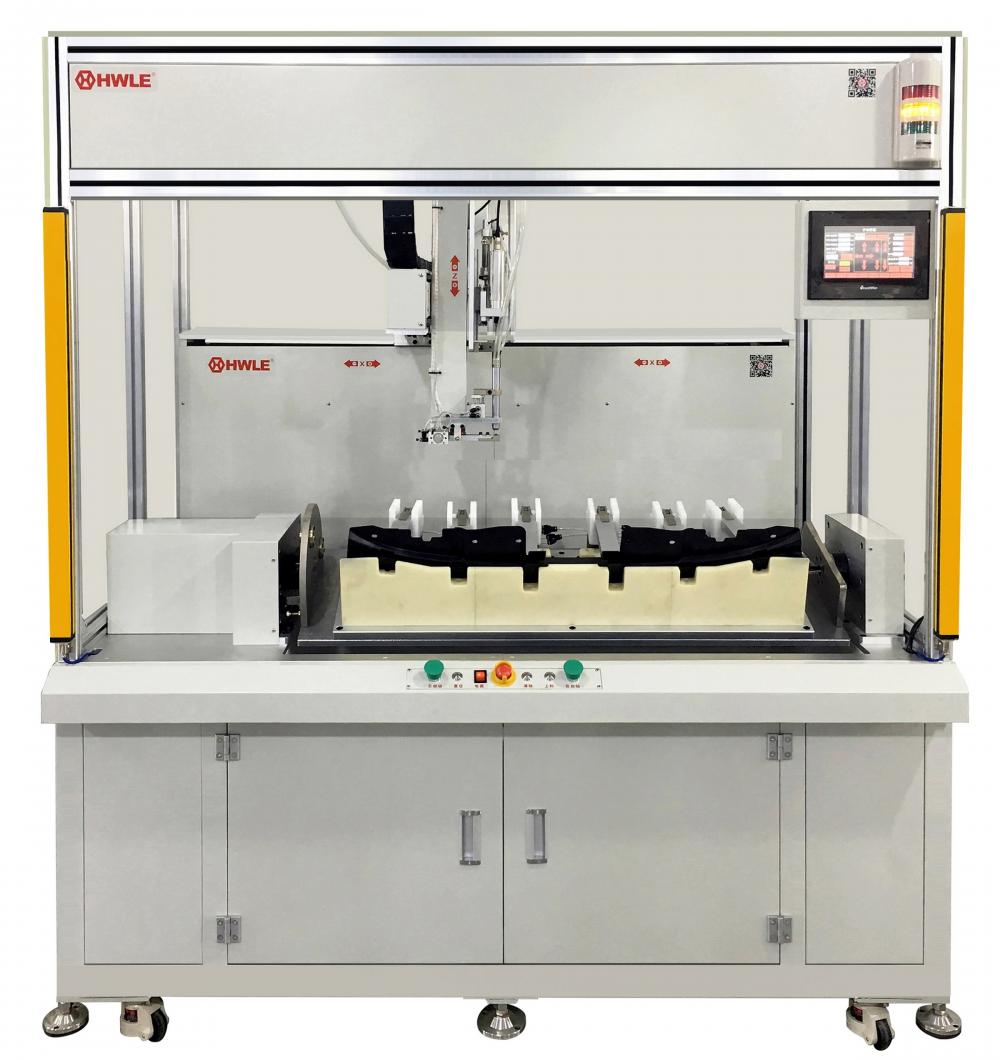

Presion Cantilever Screw Locking Machine

Cantilever screw Machine HW-60B
A variety of feed, autonomous program, cantilever moving lock, intelligent detection, according to the workpiece and screw design.Single head or multi-head lock payment is available for convenient positioning.It can be installed on the pipeline.
Apply to screw
specifications M1.0 L2.0-20 mm - 90 mm
category Cross hexagonal head plum word double head gasket screw socket buckle
The equipment parameters
Working power supply AC220V 50 hz 2000 w
Work pressure 5.5 + / - 0.5 KGF/cm2
The torque limit 600kgf.cm(60N.m)
Running accuracy 1000 mm/SEC plus or minus 0.02 mm/axis
Operating mode PLC+ human machine interface
Drive way Servo motor + motor drive
Movement module Precision lead screw + linear slide rail
programming Autonomic program development stores 20 groups *20 points
Tighten the way Air suction 1.5s/time air suction 1.8s/time air suction 2.0s/ time (nail sticking rate ≤1‰)
Apply screwdriver Electric driver pneumatic driver servo driver
Effective stroke 600(X)*400(Y)*150(Z)mm (customized)
Overall dimensions 1000(L)*900(W)*1700(H)mm (customized)
Integration capabilities Cantilever moving screw intelligent detection of missing material sliding teeth floating lock leakage lock bad alarm and prompt


Screw Locking Machine Cantilever
