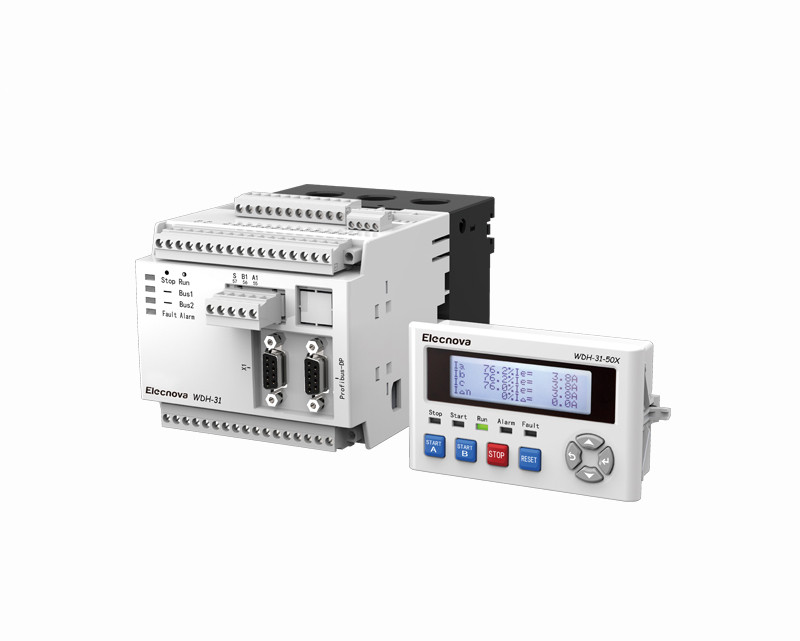

Product Name: WDH-31-500 Modbus interface overload protection stepper motor controller

The motor protection controller can provide up to 12 programmable digital inputs (optional dry and wet contacts), 7 programmable relay outputs, all programmable inputs and outputs, all of which meet the requirements of different protection control requirements on site. The function can set the alarm value and the action value at the same time, and can respectively retreat and retreat, and the protection parameters can be adjusted by the professional according to the actual working condition of the field motor, and the power failure is not lost.

Technical parameters

Product Name	WDH-31-500 Modbus interface overload protection stepper motor controller
System	Rated voltage of motor	AC 380V or AC 660V,50Hz
	Rated current of motor	0.1A~800A
	Insulation resistor	≥100MΩ
Safe Power Supply	Working range	AC/DC80~270V
	Power consumption	≤10VA
Environment Condition	Operating temperature	-20℃~+60℃
	Relative humidity	≤93%RH
	Storage temperature	-40℃~70℃
	IP degree	controllert:IP20,display module:IP65
Protection Accuracy	Current/voltage	±1% of setting value
	Thermal capacity	±1% of setting value
	Delayed acting time	When delayed acting value  <2s:±100ms When delayed acting value ≥ 2s:±5%
Control Relay	Contact capacity	AC 250V/8A
Signal Relay	Contact capacity	AC 250V/3A
Analog Output	Mode	DC 4~20mA,RL≤350Ω
Insulation		≥2kVAC

Product Composition

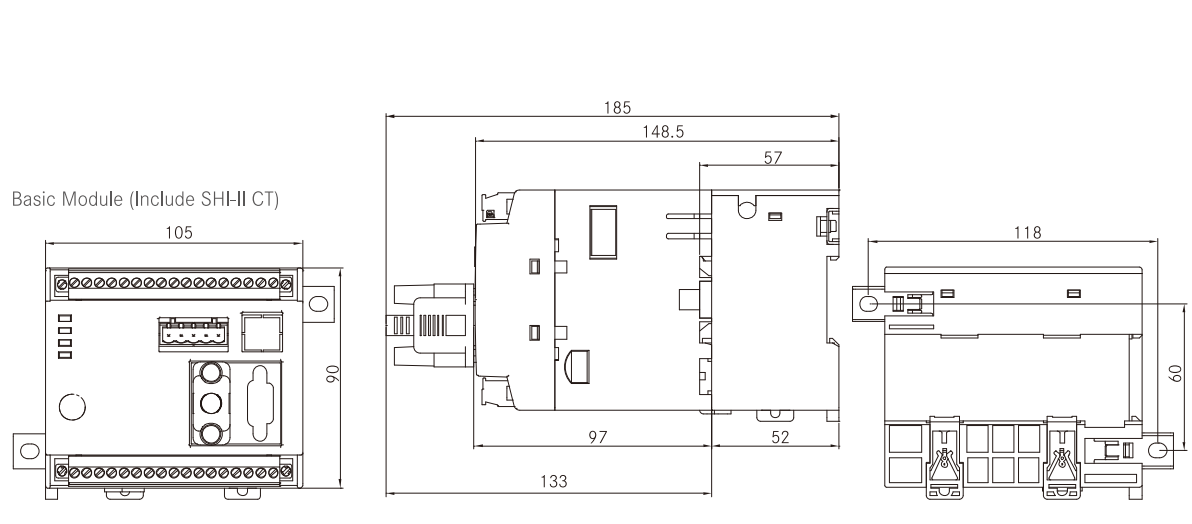

■Basic module

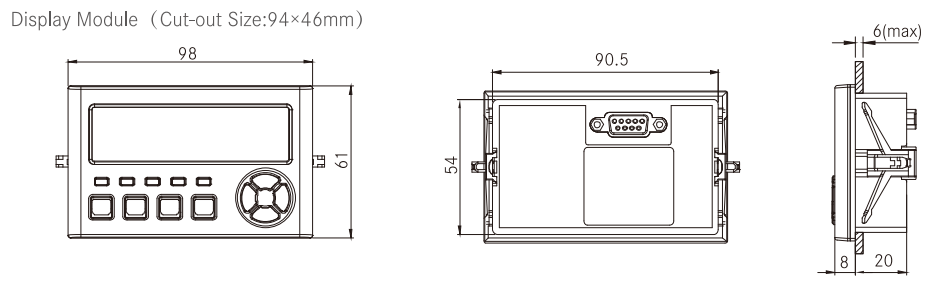

■Display module

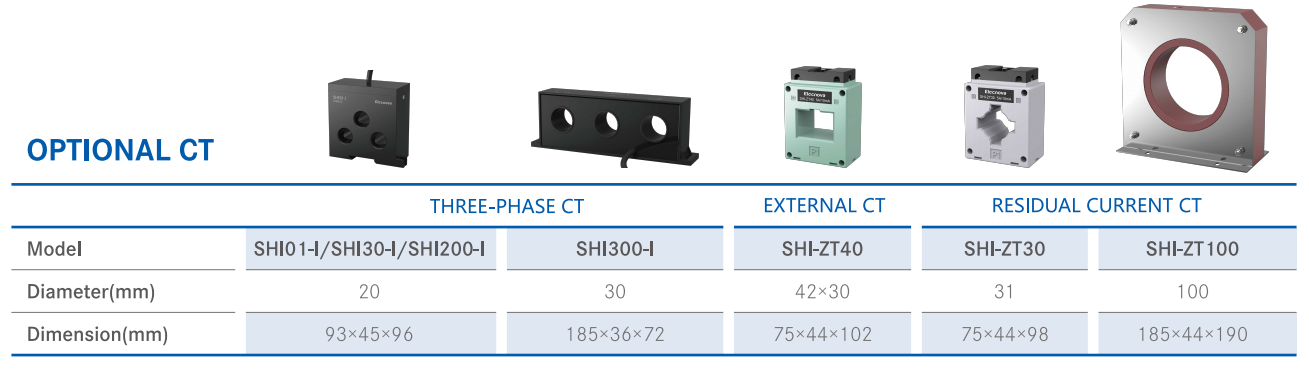

■ SHI-II 3 phase CT

■ Residual current CT(Optional)

■ External CT(Optional)

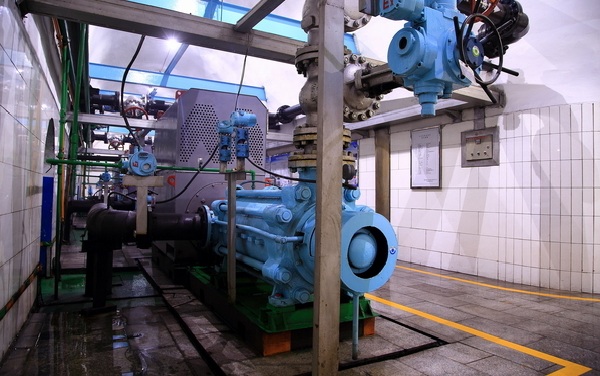

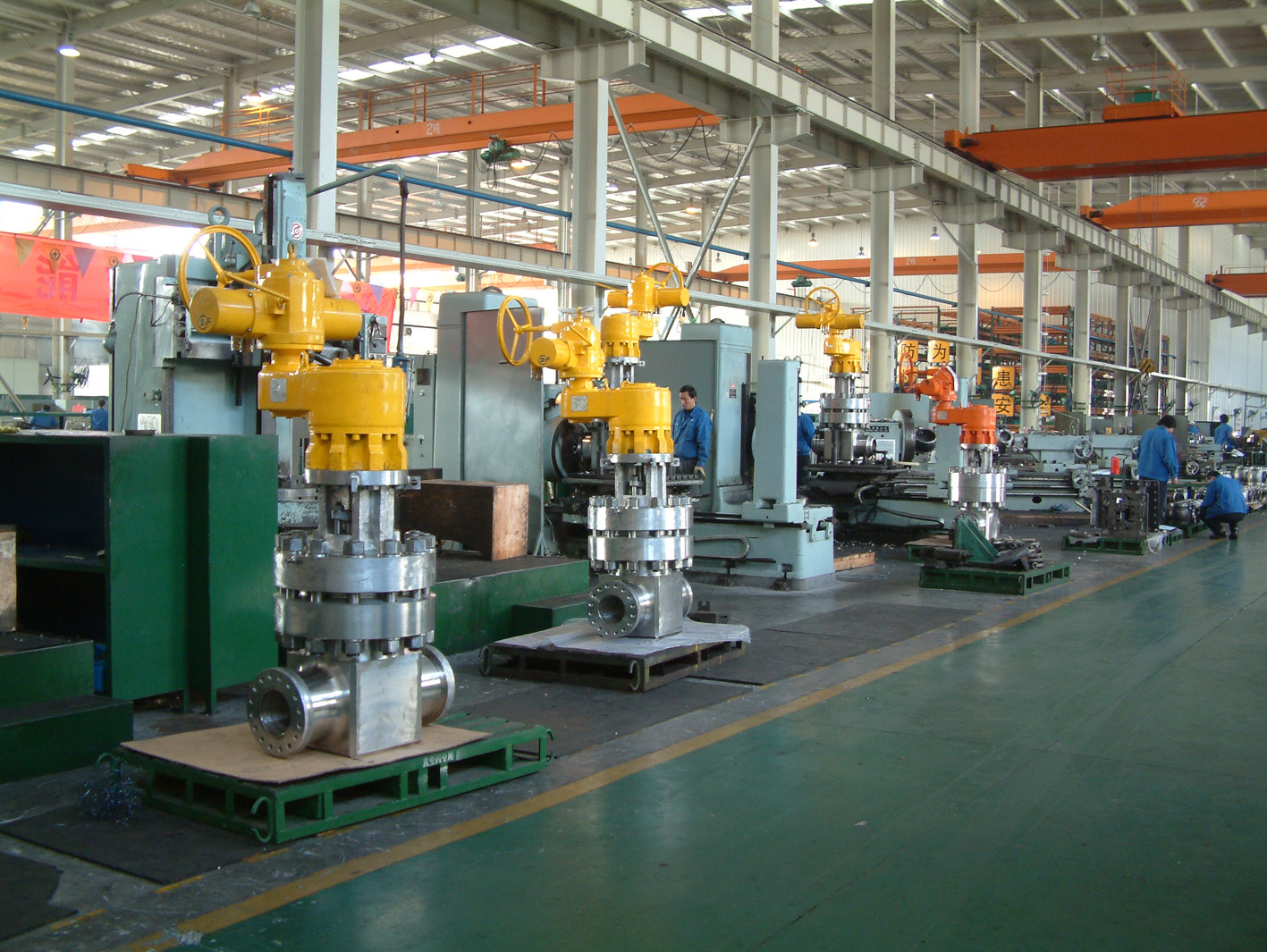

Application

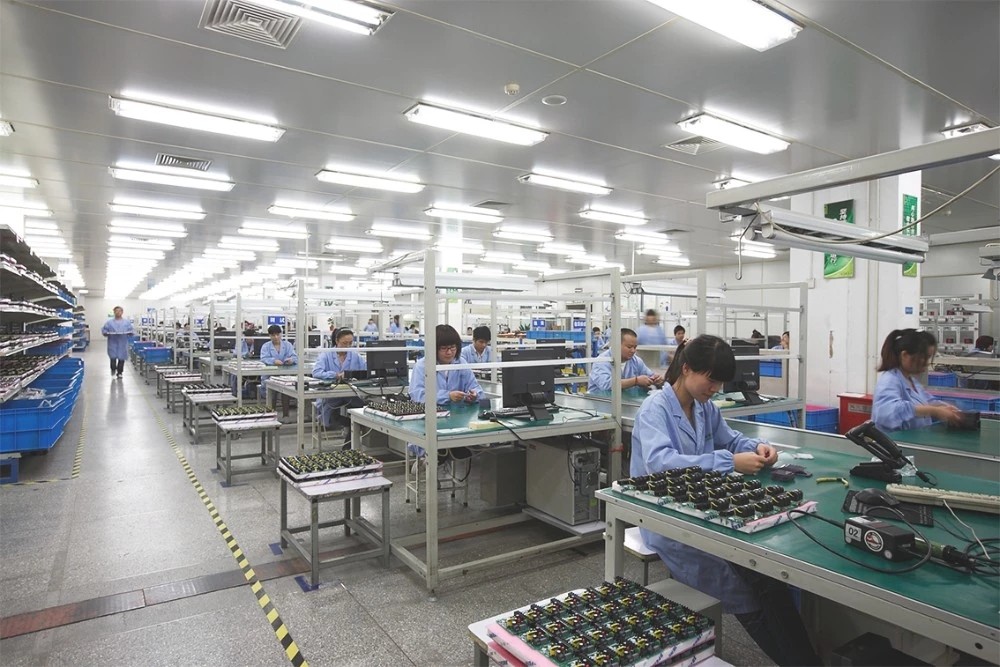

Production Process

 SMT

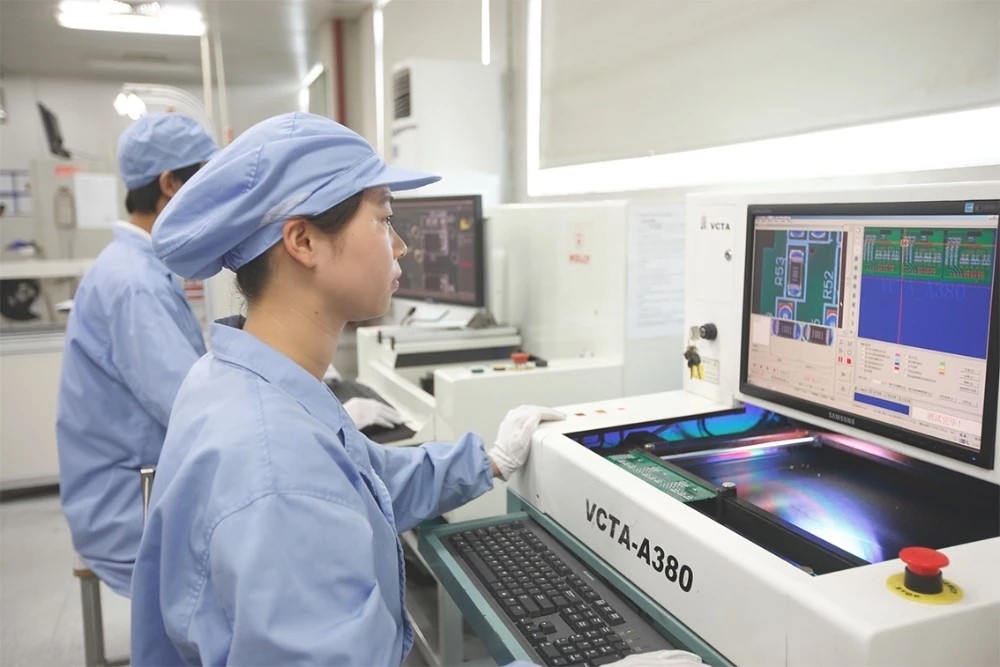

AOI Test

Plug-In Mounting

Wave Soldering

Assembling

 Inspection
