Three-parameter Combined Probe Cooling Tower Oil Temperature Sensor Level1
3 year ago
Three-parameter Combined Probe is specially equipped with cooling tower fan, which can be used for a long time without replacement.
Product details
|
Technical parameter |
|
|
Vibration range |
0-20mm/s |
|
Oil level range |
-10 - 40mm |
|
Oil temperature |
0-100℃ |
|
Output |
4-20mA |
|
Working voltage |
DC/24V±2V |
|
no-load working voltage |
DC/18V |
|
maximum protection voltage |
DC/30V |
|
rated current |
DC/80mA |
|
maximum instantaneous working current |
150mA |
|
weight |
1.2KG |
|
Ambient humidity range |
0~95% |
|
Ambient environment range |
-20~80℃ |
|
frequency range |
10-5KHz |
|
Active current output |
DC/4~20mA, requirement of passive resistance load |
WR-930SB3 integrated three-parameter (oil temperature, oil level, vibration) combined probe is a non-bus universal combined probe in KR-939 series cooling tower fan safety monitoring system. It can be directly connected with "Fan Safety Monitor" to realize single equipment monitoring. It can also be connected with a variety of general secondary instruments or computer data acquisition, measurement and control systems (DCS, PLC, etc.).

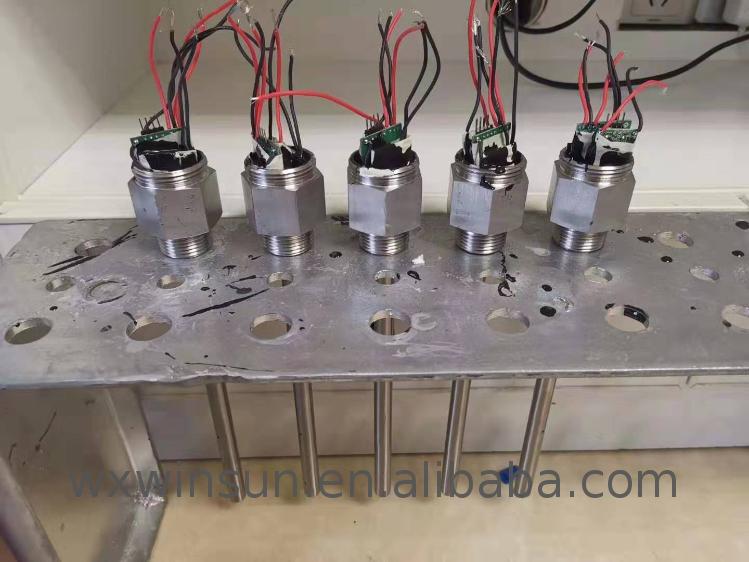

WR-930SB3 integrated three-parameter combination probe is a stainless steel fully enclosed waterproof structure with a weight of about 1.2kg. The probe is in the form of external threads. It is installed in the threaded installation hole of the fan reducer. The probe rod is inserted into the reducer to obtain the lubricating oil temperature, lubricating oil level and vibration signals of the reducer and complete transmission. Out. Thread specifications and probe insertion depth should be stated at the time of ordering.
