Powder ribbon blender

3 year ago

29 0 

Jiangyin yongchang medicine machinery co,.ltd

1 min

Product details

Model	WLDH200	WLDH500	WLDH1000	WLDH1500	WLDH2000	WLDH3000	WLDH4000	WLWLDH6000	WLDH8000	WLDH1000
Capacity(kg/batch)	80-100	200-250	400-500	600-700	800-1000	1200-1500	1600-2000	2400x3000	3200-4000	4000-5000
Power(kw)	3	5.5	7.5	11	15	18.5	22	37	45	55
Spindle speed(rpm)	42	42	42	32	32	32	30	28	28	22
Weight(kg)	450	800	1200	1500	1800	2000	2500	3000	4000	5000
Size(mm)	1800x700x550	2300x750x1100	2800x920x1300	3200x1000x1500	3800x1100x1600	3800x1300x1800	4000x1500x2000	4400x1800x2200	5000x2200x2500	5500x2700x2700

1.WORKING PRINCIPLE

1. The plow mixer moves the material within the range of the barrel under the action of the plowknife on the mixing shaft. The main shaft plough dislocation continuous installation, structure to avoid mixing dead Angle, the plough left and right inclined plane structure will be left and right to promote the material seepage back and forth to form a convection cycle of material flow, fast mixing material.

2. For agglomerating materials such as fiber or damp agglomerating and liquid agglomerating powder, high-speed flying knife device can be installed in the cylinder body, combined with the convective circulation function formed by the plow stirring, the agglomerating material can be quickly broken.

3. The flying knife device is installed in the lower direction of the barrel side, and the material is cut and sprinkled by high speed rotation in the mixing process

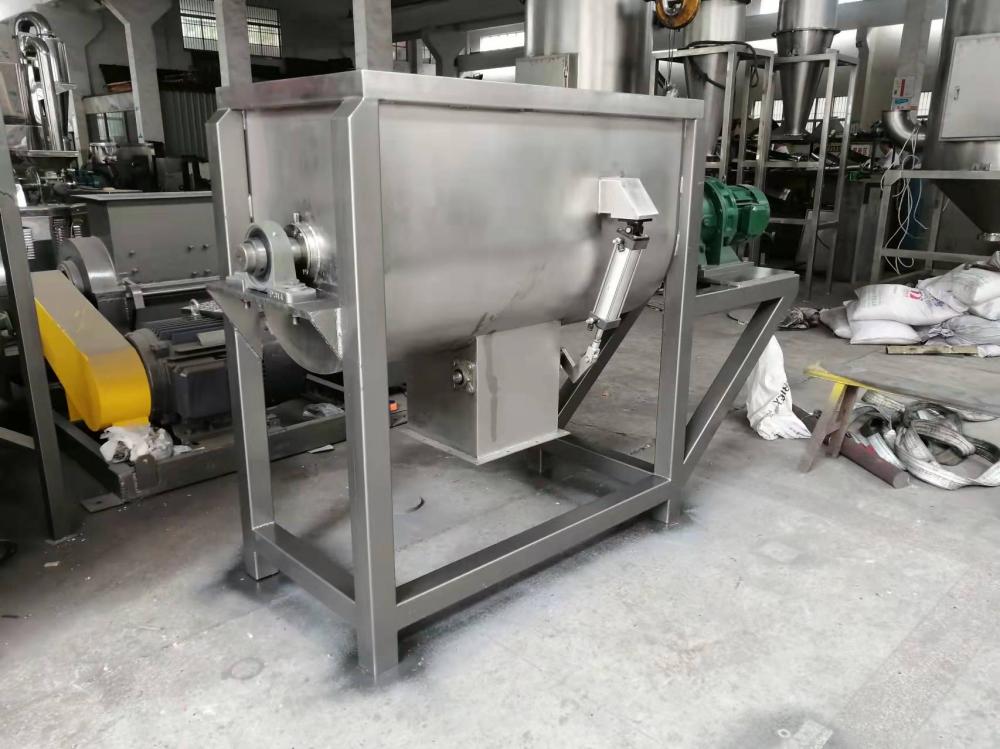

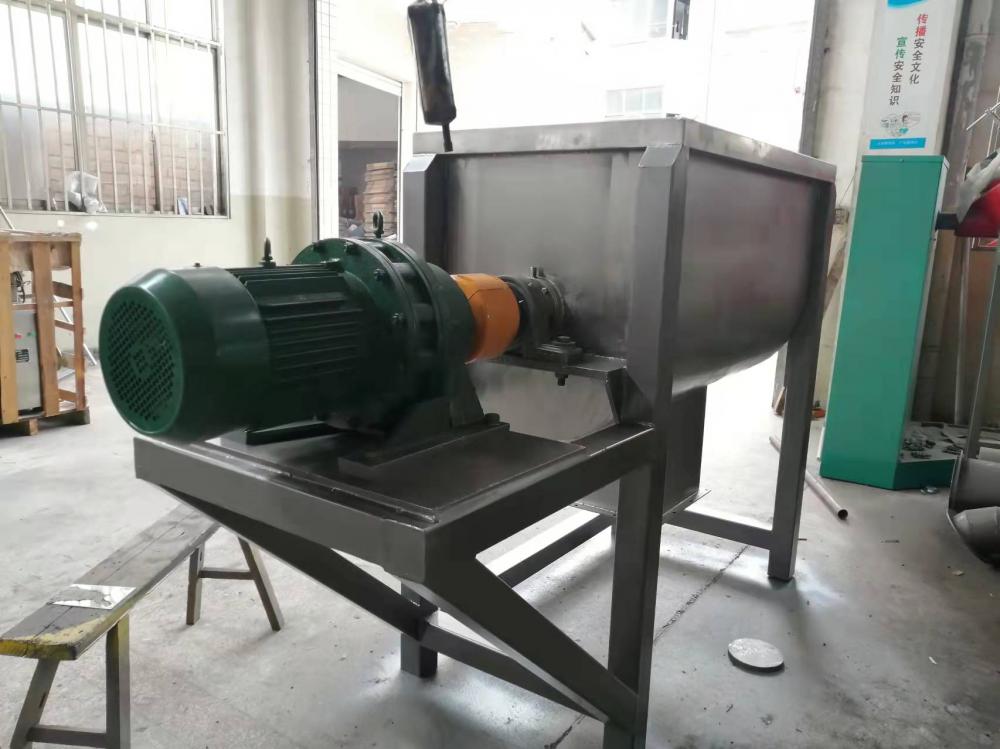

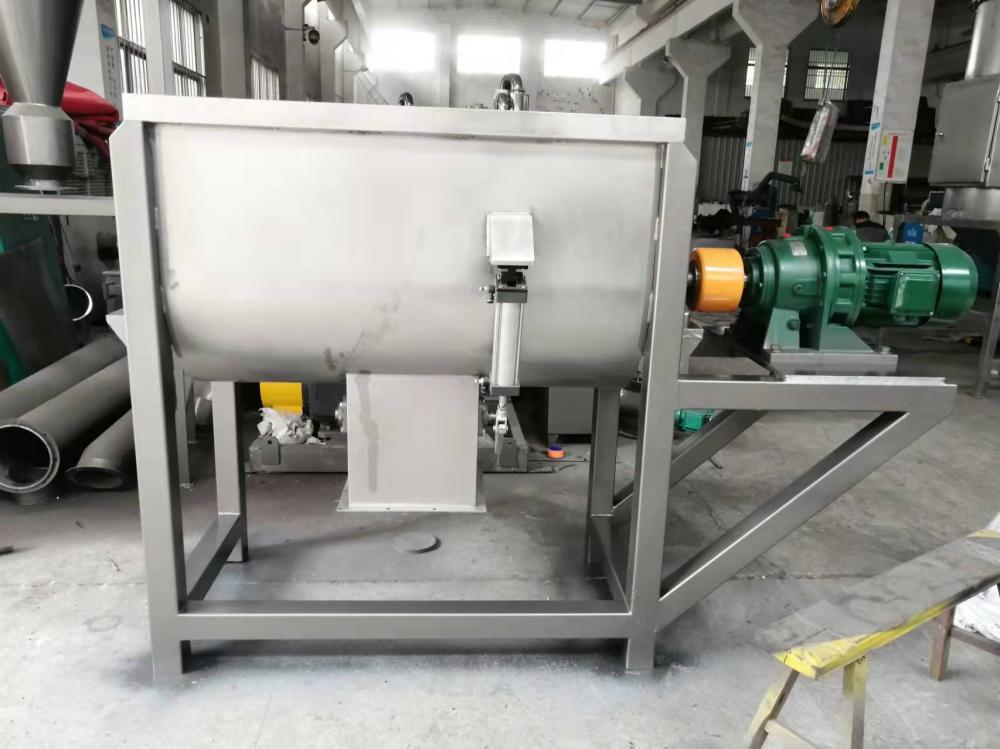

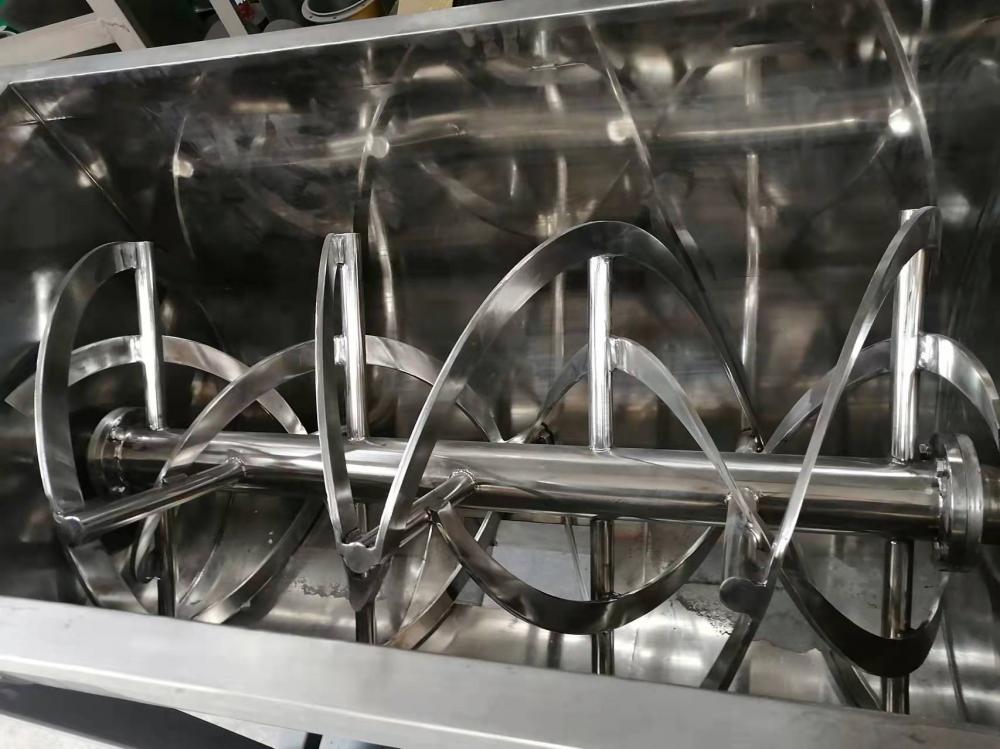

Ribbon Blender 1 Jpg Ribbon Blender 2 Jpg Ribbon Blender 3 Jpg Ribbon Blender 4 Jpg

2.WHY CHOOSE US

Widely used in chemical, building materials, dyes, pigments, coatings, plastics, glass, additives, rubber, medicine, food, health products, feed, biological engineering, ceramics, refractories, compound fertilizer, rare earth and nuclear dye, battery materials and other items of powder and powder, powder and liquid mixing.

3.MAIN FEATURES

1. The machine is a round horizontal cylinder, mixing shaft dislocation continuous installation of the plough, with a unique structure, smooth operation, reliable quality, low noise, long service life, easy installation and maintenance.

2. High mixing speed, high mixing uniformity, wide use, high crushing effect for clumped materials.

3. Can meet the mixing process of different materials, can meet the mixing of heating or cooling process conditions.

4. If there is a spray mixing process requirements, can be configured to produce mist spray device

Remarks:

1.delivery:15 working days in factory

2.Payment:50% advance,50% before shipping by Paypal/ TT

3.If u feel interested in ribbon blender or sifting machine or spices pulverizer or rotary vacuum dryer or powder mixer machine or capsule filling machine or capsule polishing machine or tablet press or capsule counting machine etc someday that we produced u can tell me your specific requirement so that i can better recommend more suitable for your demands machine,what do u think
