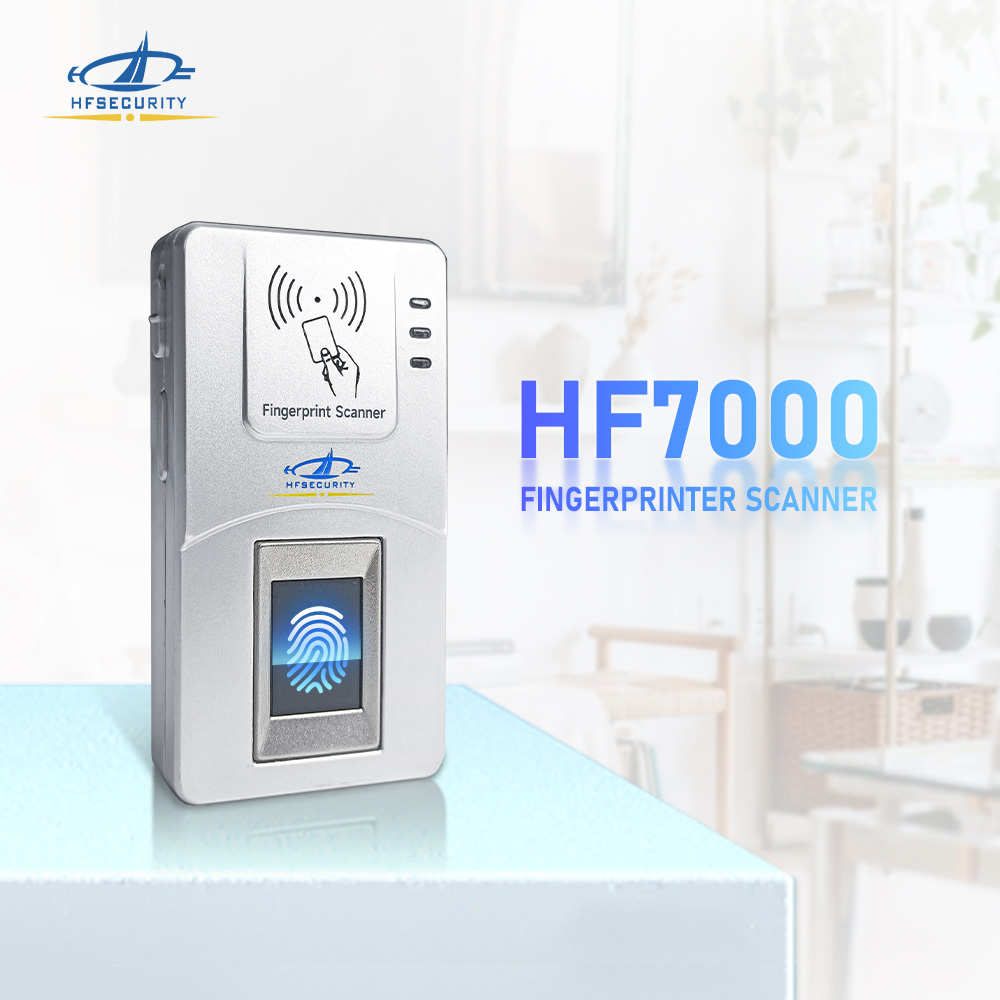

HFSecurity HF7000 Fingerprint Scanner

3 year ago

32 0 

3 year

Product details

Nowadays, people's travel and life are inseparable from fingerprints. It is the most widely used and important one in all biometrics. For example, fingerprint identification is used for employee attendance. For special people whose fingerprints cannot be identified, swipe cards and take photos. The fingerprint attendance machine can accurately record employees' arrival and departure time by identifying their fingerprints. Through attendance software, fingerprint records, attendance records and other data can be managed, and attendance reports can be automatically generated in the background.

Huifan Tech, with HFSecurity as brand, is a biometric manufacturer since 2005, focusing on biometric verification, including time attendance, access control, other flexible identification.

Besides our ready hardware, we have rich experience in OEM and ODM orders.

Product Description

With immense market knowledge, we have been able to provide optimum quality Cheap IOS Biometric Fingerprint Scanner with Free SDK HF7000 HFSecurity. The result of upgrades in technologies proves to be very positive. The finished Cheap IOS Biometric Fingerprint Scanner with Free SDK HF7000 HFSecurity is characterized by stable quality.It can play out its greatest value in the field(s) of Fingerprint Scanner. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, chongqing huifan technology co., ltd believe that we will stay ahead of other competitors in the future.

Place of Origin:	Guangdong, China	Brand Name:	HFSecurity
Model Number:	HF7000 FAP10 Biometric Fingerprint Scanner	Warranty:	1 Year
Resolution:	500 Dpi	Special Features:	Waterproof / Weatherproof, PORTABLE, Biometric, built-in li battery, Time & Attendance
Customized support:	Customized logo, OEM, ODM, Software reengineering	Dimensions:	83 (L) * 42.5 (W) *16 (H) mm
Supporting Cards:	IC Card (13.56MHz card) , NFC 13.56Mhz card	Sensor:	Capacitive
Image Size:	256*360 pixels	Image Resolution:	508DPI
Fingerprint Standard:	ISO19794-2/-4,ANSI378	Image Format:	WSQ, BMP, RAW, etc
OS:	Android, WIN, LIN, IOS	USB:	Support
BT:	Support

Features

FBI Capacitive Fingerprint Scanner

HF7000 is BT fingerprint reader with IC card reader,supports Win,Android,Lin,IOS.

Programming Language including vb, C++,net Java and so on.

This bluetooth fingerrint sensor helped us done projects like Pakistan Telecom, Airtel Telecom, Angola Election in 2017, Bank,Logistic and so on.

So it can be widely used in any identification application.

Specification

1. Support USB, BT interface.

2. Support IC card and IC card.

3. Support ISO standard format and customized format.

4. Provide multiple color, to meet different needs.

5. Provide hardware-based fingerprint matching and storage capabilities.

Hardware

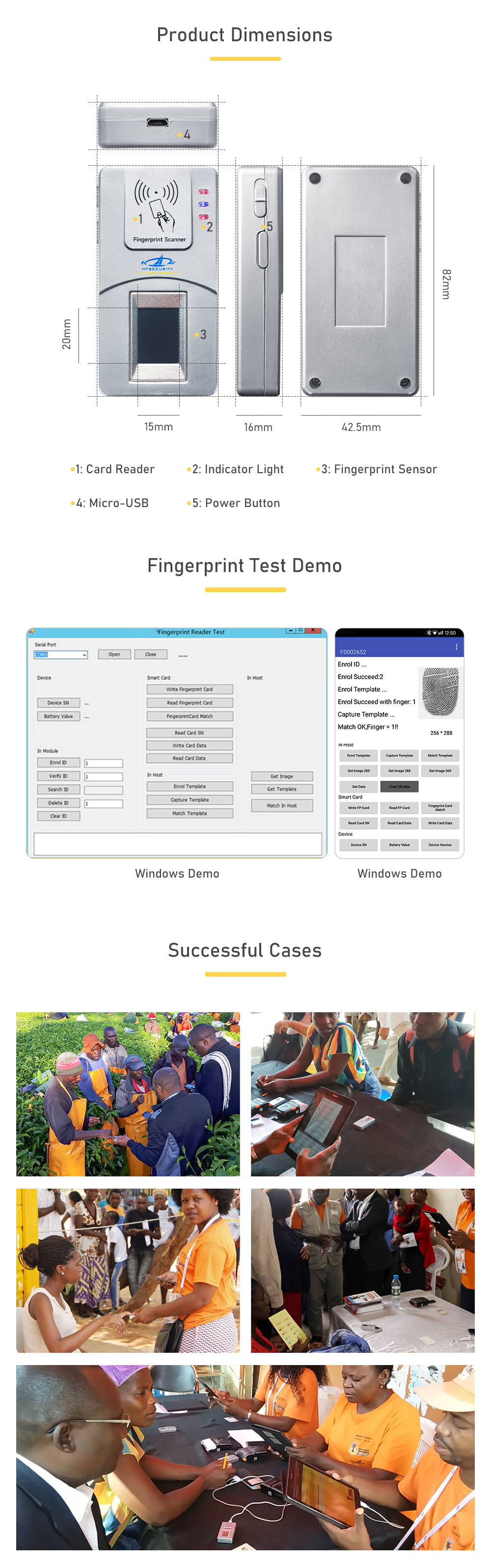

Dimensions	83 (L) * 42.5 (W) *16 (H) mm

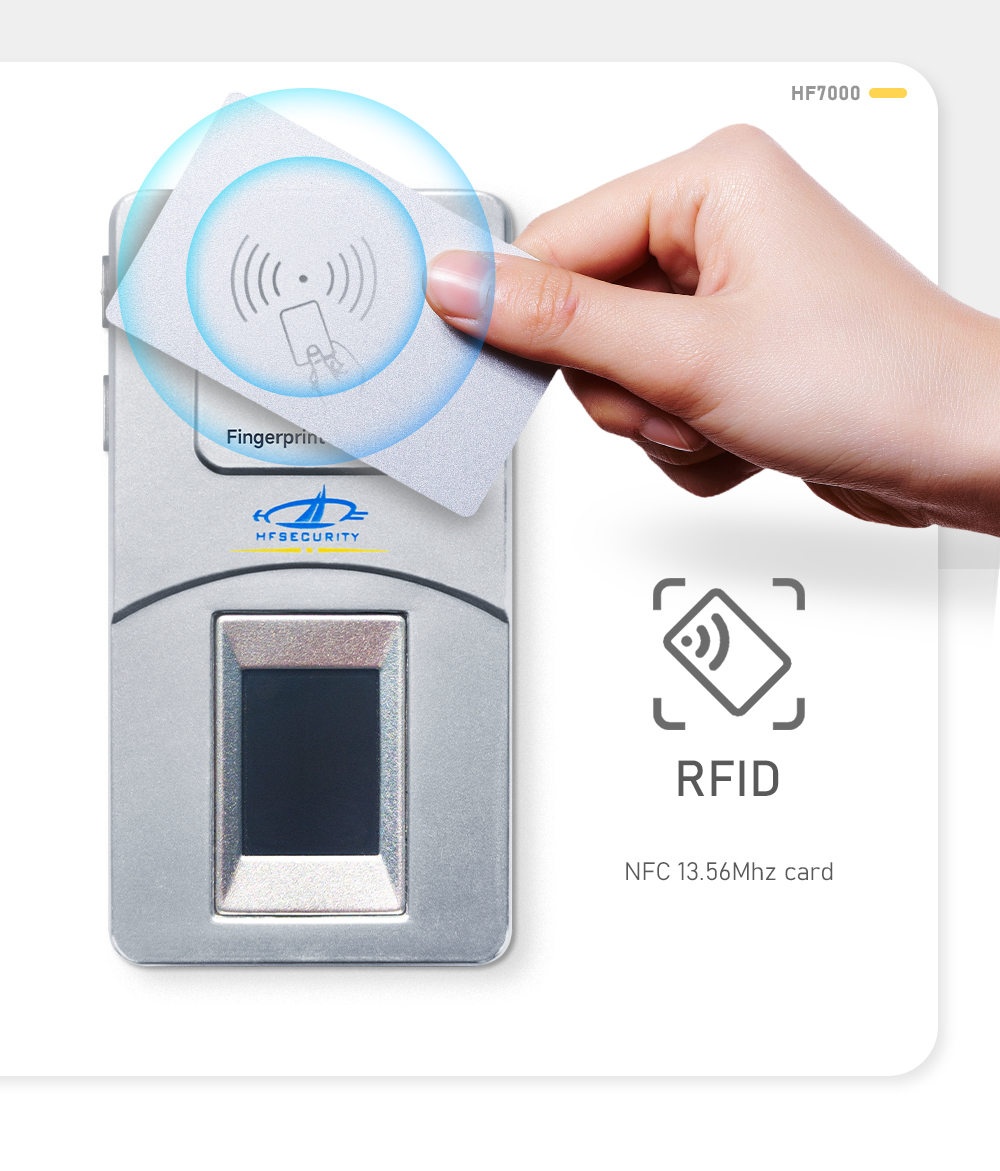

Supporting Cards	IC Card (13.56MHz card) , NFC 13.56Mhz card
Working Currency	Maxim 100mA
Working Voltage	Built-in 3.7V lithium battery (1000mAh)
Working Temperature	-20℃~70℃
Working Hunidity	0-90% (no frosty)

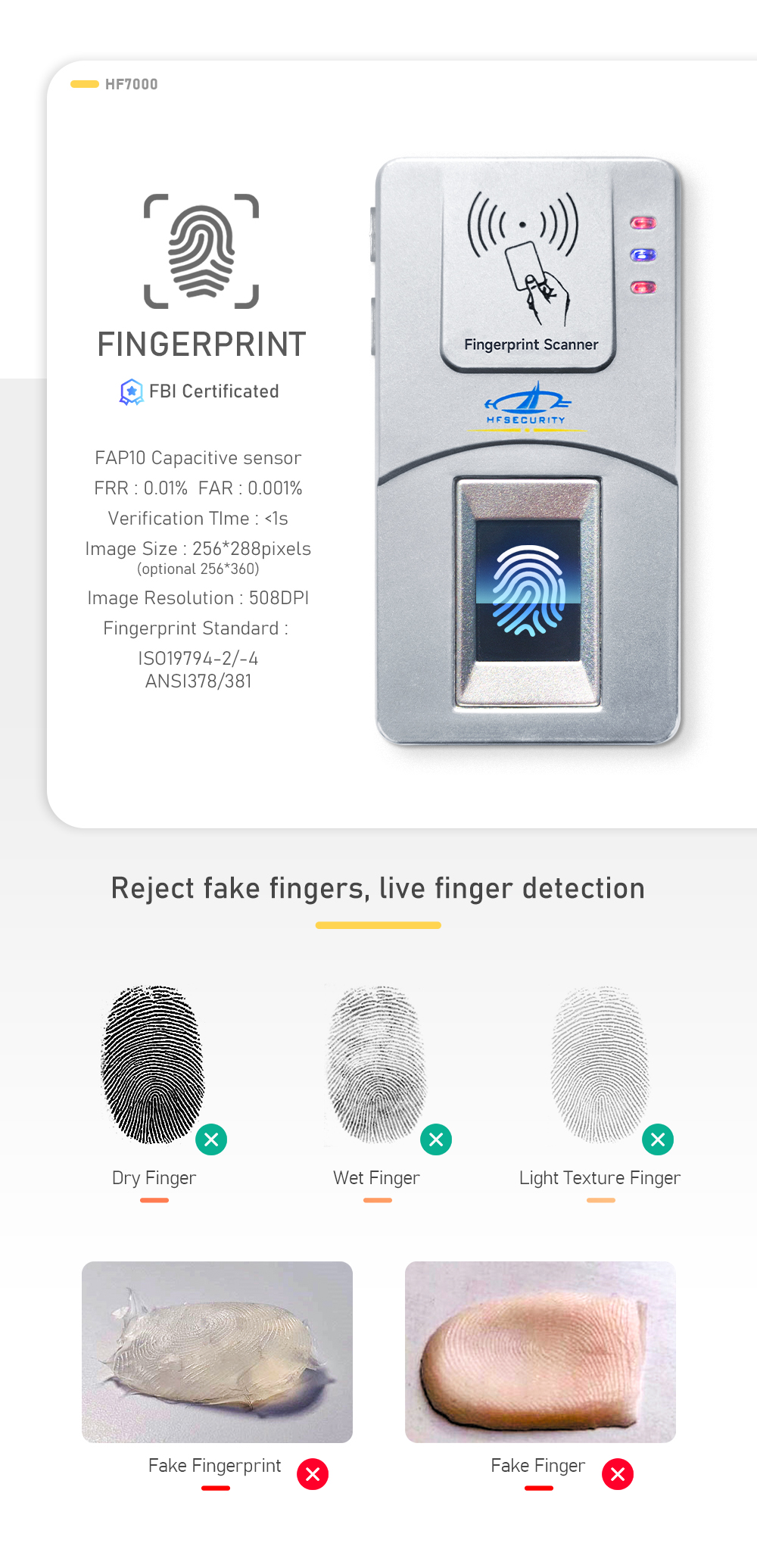

Fingerprint Sensor
Sensor	Capacitive
Fingerprint Collection	Reject fake fingers,live finger detection,LFD
FRR	0.01%
FAR	0.0001%
Fingerprint Verification Time	<1S
Image Size	256*360 pixels
Image Resolution	508DPI
Gray Scale	8-bit (256 levels)
Image Array	18mm*12.8mm
Anti-static Electric Capacity	IEC6100-4-2 standard 15KV
Fingerprint Standard	ISO19794-2/-4,ANSI378
Image Format	WSQ, BMP, RAW, etc
Software
OS	Android, Win, Lin, IOS
Communication
USB	Support
BT	Support

Details

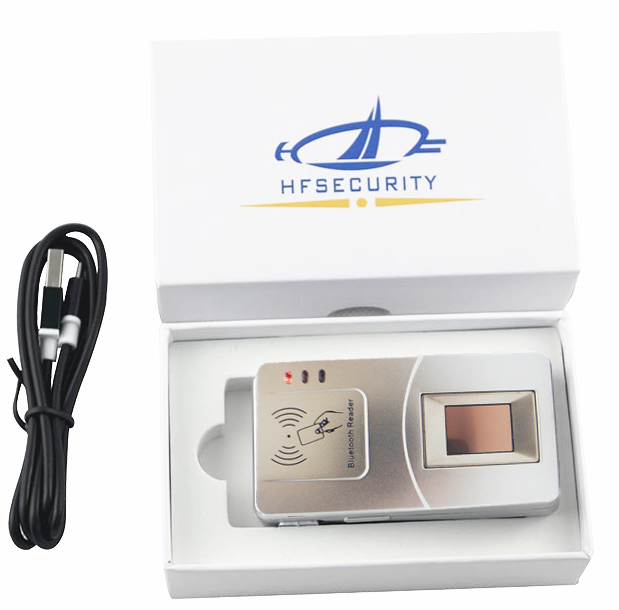

Product Packaging

In the package, it includes device and USB cable. We also provde free SDK for you to integrate with your own system or develop.

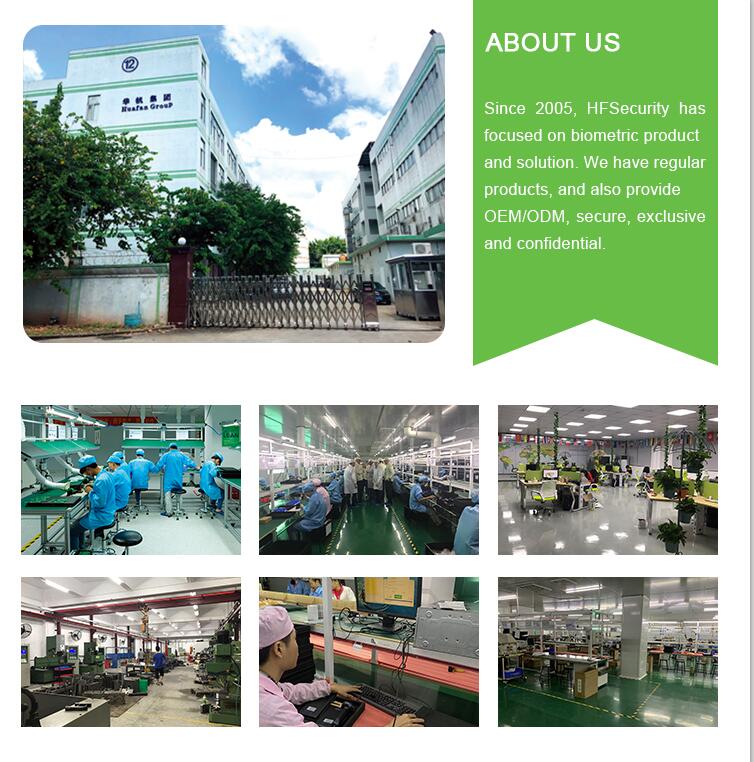

Company Profile

Huafan Group is located in Chongqing city,Southwest of China.Her severalbrands,HFSecurity,BIO,Heystar,are widely in the field of interior decoration,light current,security and protection.

We provide your one-stop solution in security and protection with the most professional and exprienced team in China(Shenzhen and Chongqing city),Pakistan,and United Kingdom.

With professional attitude,we provide secure integration solution and products.

Committed to the success of clients,we have server for more than thousands pf partners with 90% positive feedbacks in the last 10 years.

We will keep going,creat interests of clients,create opportunities for staff,and create value for the society.

Development

HFSecurity Development History

FAQ

Frequently asked questions about Pricing Plan

Do you offer warranty for the device?

Yes,we offer one year warranty and lifelong technical support(18software engineers and 28 senior hardware engineers.
What is your MOQ?

MOQ is 2 normally, 1 for development and 1 for function testing.
How to get software and SDK?

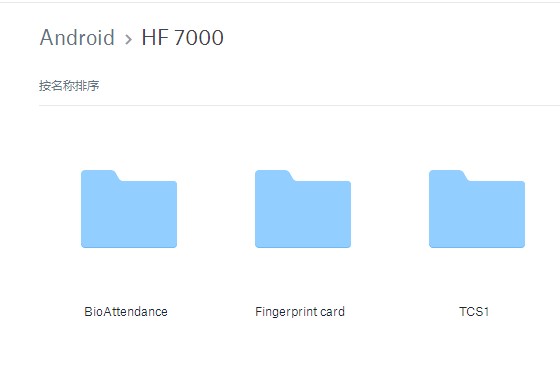

Software and SDK are free.Will send download link after order via dropbox.
Can we visit factory before place order or deliver bulk order?

Surely, our factory is based in Shenzhen Longgang, welcome to visit us anytime, above with pictures FYI.
What is the standard of package?

Export standard package or special package according to customer requirement.
Do you accept OEM/odm business?

Yes, we are OEM /odm supplier.
What kind of certificate you have ?

We have ISO9001, CE, FCC
