We know that semiconductor sensors, whether capacitive or inductive, have similar principles. On a "flat plate" integrated with thousands of semiconductor devices, the finger on it forms the other side of the capacitance (inductance). Because the finger plane is uneven, the actual distance between the bump and the concave point contacting the flat plate is different, and the capacitance/inductance value formed is also different, According to this principle, the device collects different values and completes the fingerprint collection. The semiconductor fingerprint head can penetrate the surface layer of the skin, so the silica gel analog fingerprint widely circulated on the Internet basically does not play a role here. The advantage of identifying living fingerprints is that fingerprints can not be copied or imitated basically.

Huifan Tech, with HFSecurity as brand, is a biometric manufacturer since 2005, focusing on biometric verification, including time attendance, access control, other flexible identification. Besides our ready hardware, we have rich experience in OEM and ODM orders.

chongqing huifan technology co., ltd after long-term market research, we have created a brand-new product that is different from its peers. HFSecurity HF4000 optical fingerprint scanner has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. The launch of a product that perfectly solves the industry's pain points is that chongqing huifan technology co., ltd has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market.

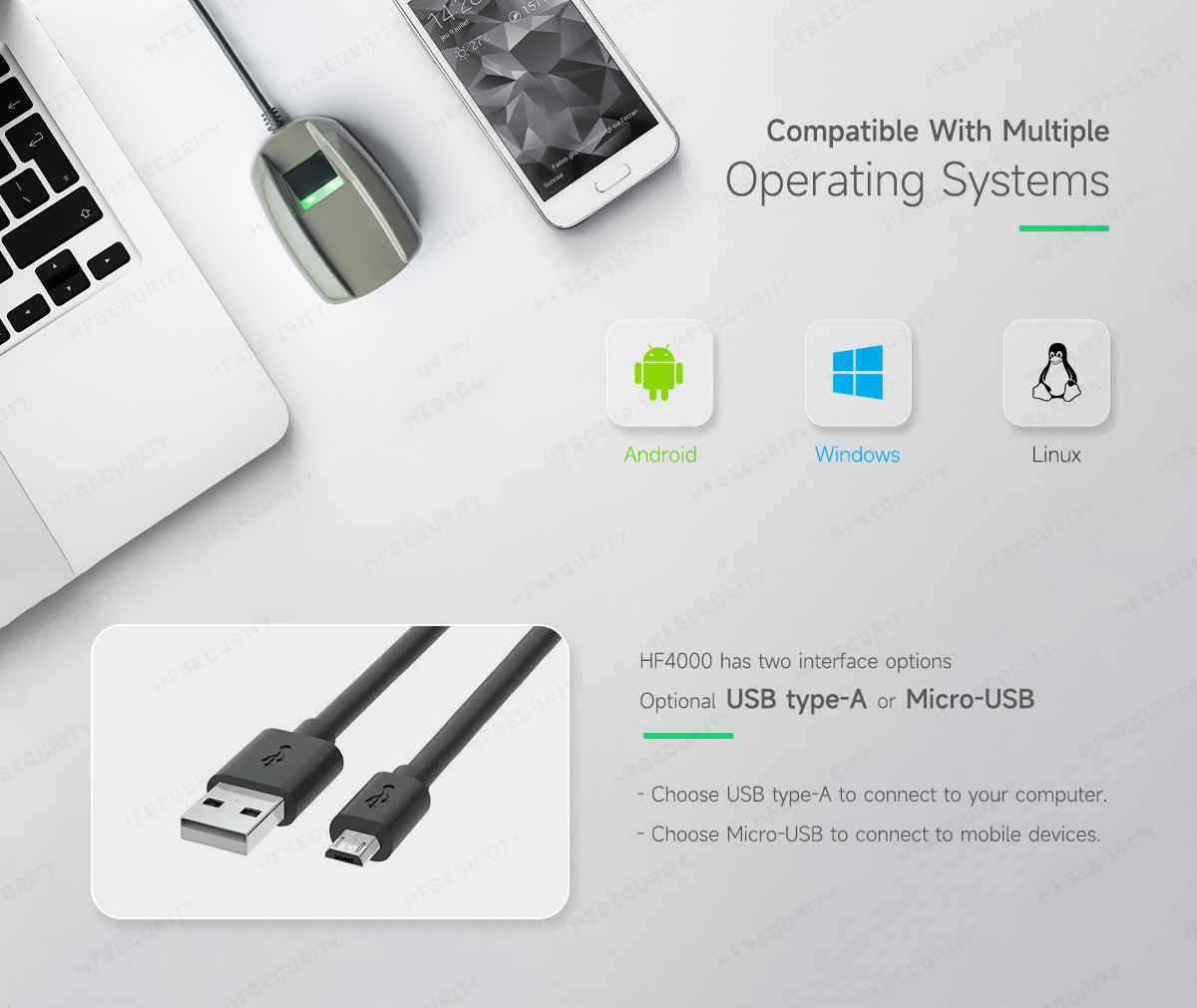

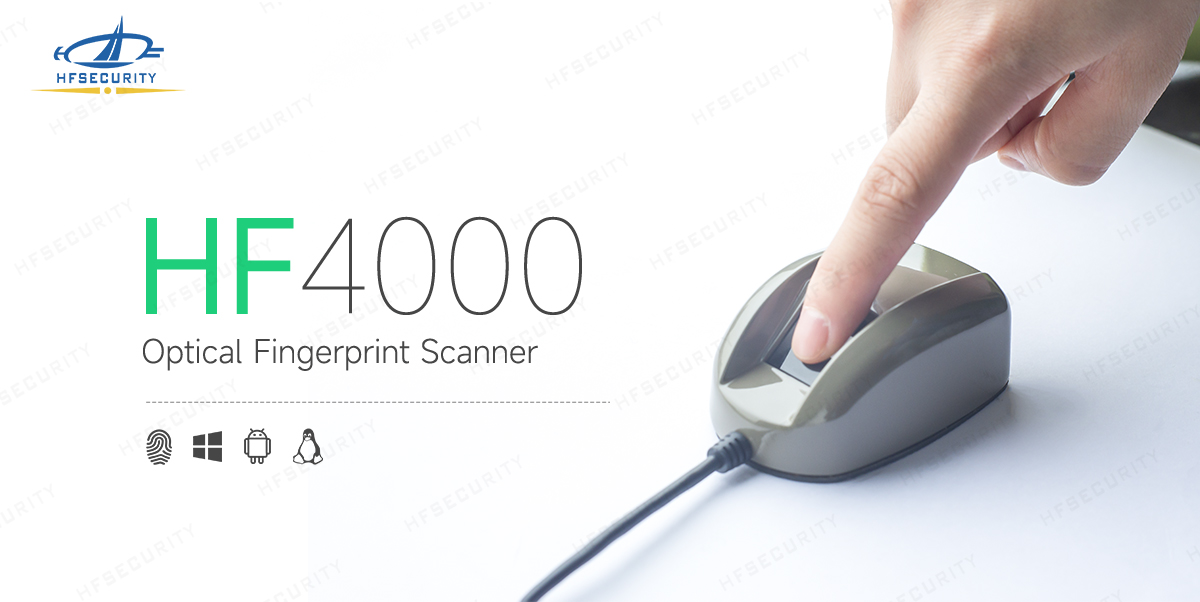

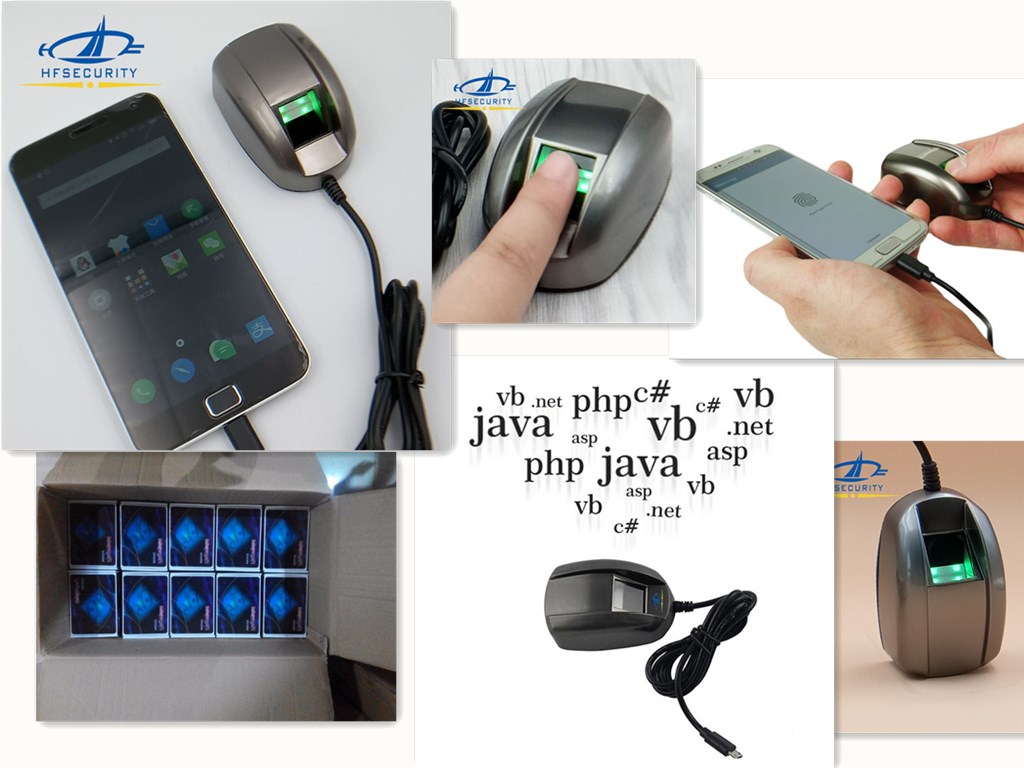

HF4000 is a fingerprint scanner with Micro USB and USB 2.0 connection. HF4000 support Android, Wins, Linux. With Optical fingerprint sensor.

1. Durable: It can be used more than 1,000,000 times

2. Operating System: Andriod, Wins, Linux

3. Compatible With USB1.0&2.0

4. Provide multiple color to meet different needs

5. Provide hardware-based fingerprint matching and storage capabilities

Specification

Hardware

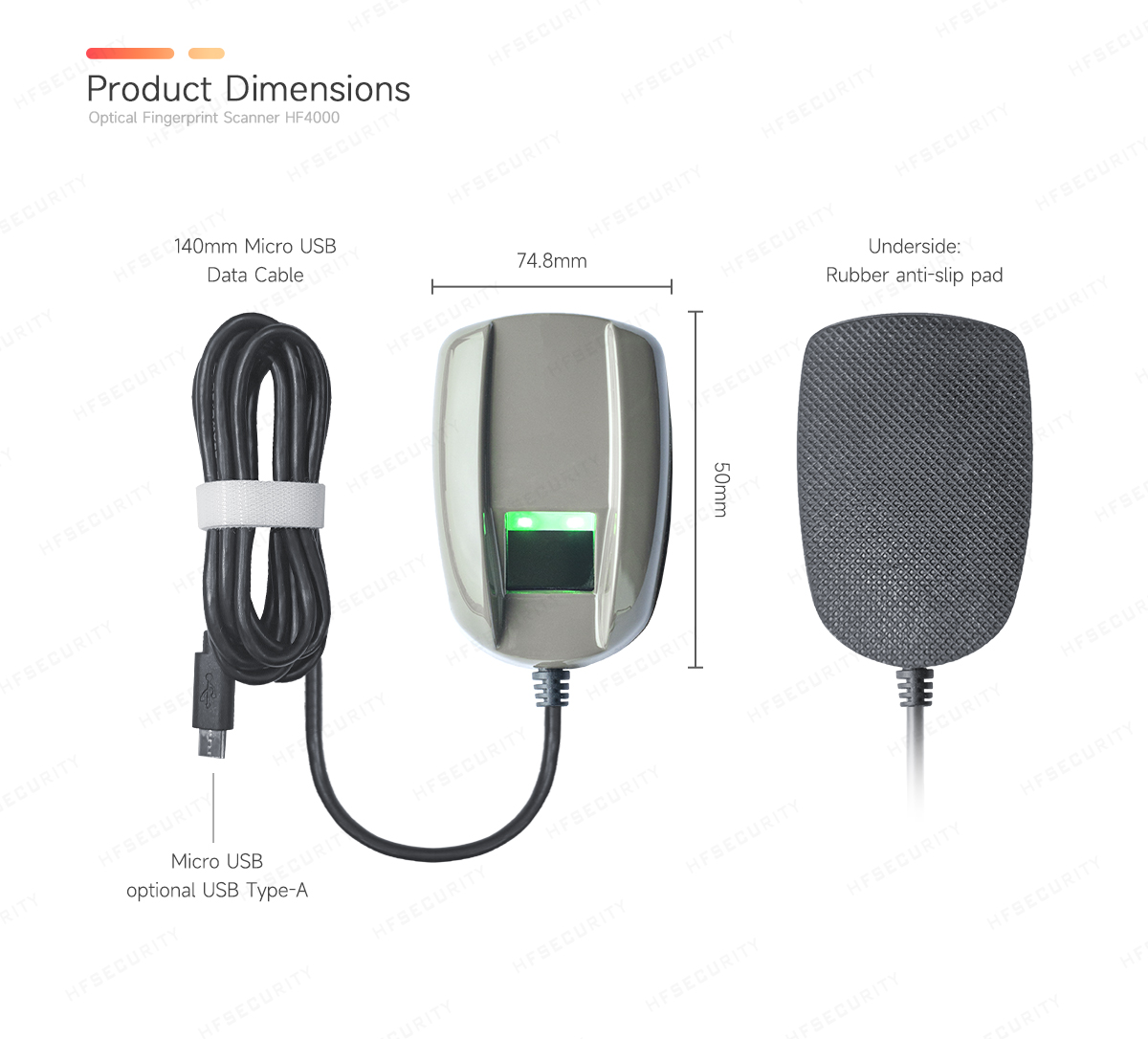

Physical size	74.8 (L) * 50 (W) * 30.8 (H) mm
Operating temperature	-20 ° C to +70 ° C
Working humidity	98%
Operating voltage Working	5V
current	Up to 140mA
Software
OS	Wins, Android, Linux

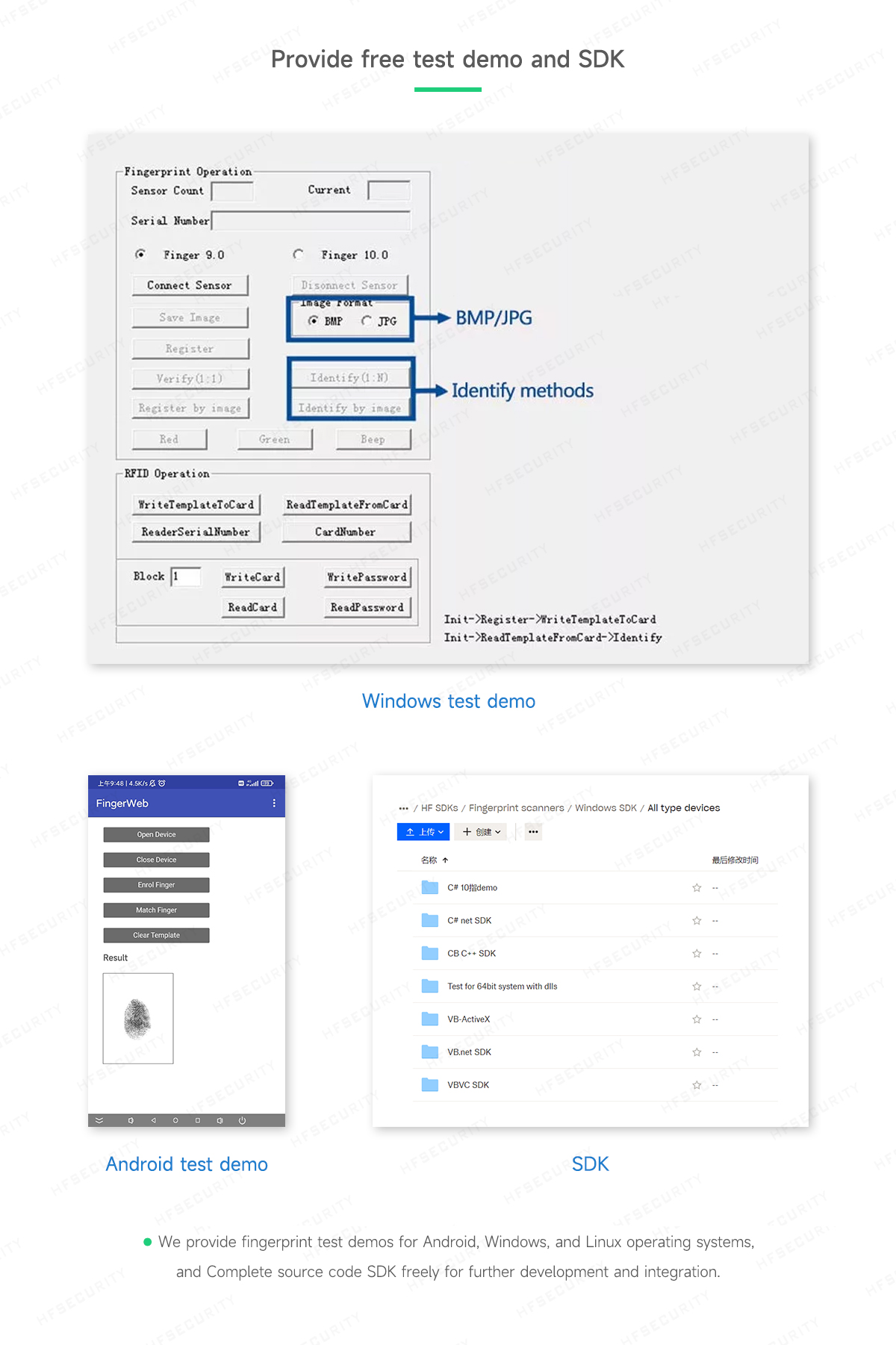

SDK	For Free, support ASP.NET, JAVA, Active X, Web-based development etc
Fingerprint Sensor

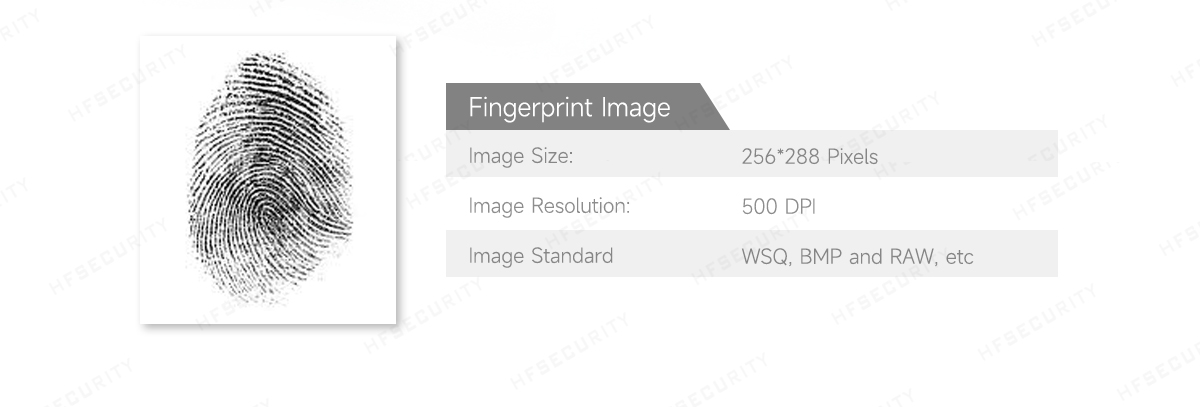

Image Size	256*288
Image Resolution	500DPI
Window Area	17mm * 19mm
Fidelity FRR	0.01%
False rate FAR	0.0001%
Match Speed	<1s
Image Standard	WSQ，BMP and RAW, etc
Fingerprint Standard	ISO19794-2/-4, ANSI378

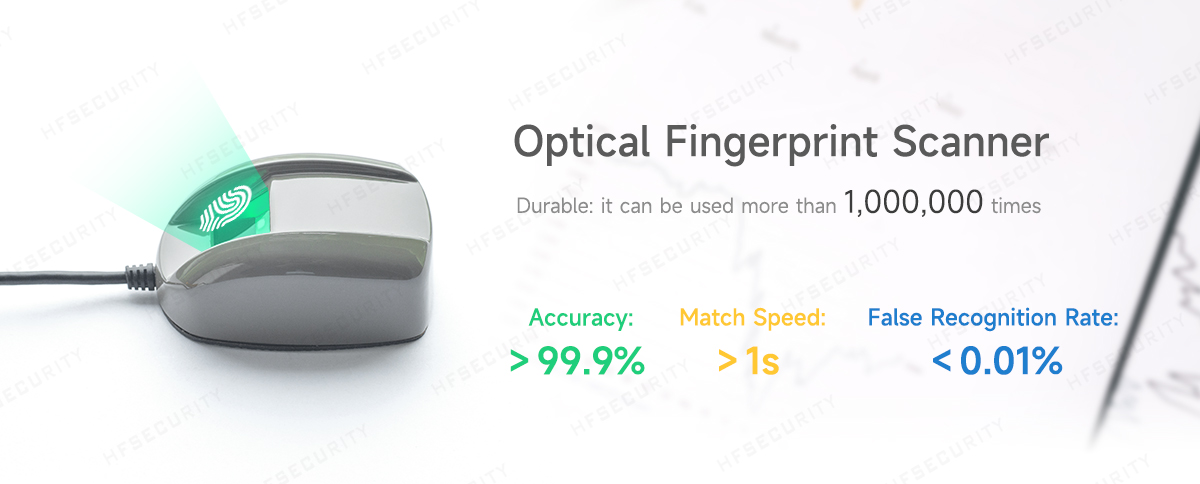

Durable	It can be used more than 1,000,000 times
Good anti-static	> 15KV, for dry weather
Communication
Interface	USB/ Micro-USB (optional RS232/UART)

Details

FAQ

• Do you offer warranty for the device?
  Yes,we offer one year warranty and lifelong technical support(18software engineers and 28 senior hardware engineers.
• What is your MOQ?
  MOQ is 2 normally, 1 for development and 1 for function testing.
• How to get software and SDK?
  Software and SDK are free.Will send download link after order via dropbox.
• Can we visit factory before place order or deliver bulk order?

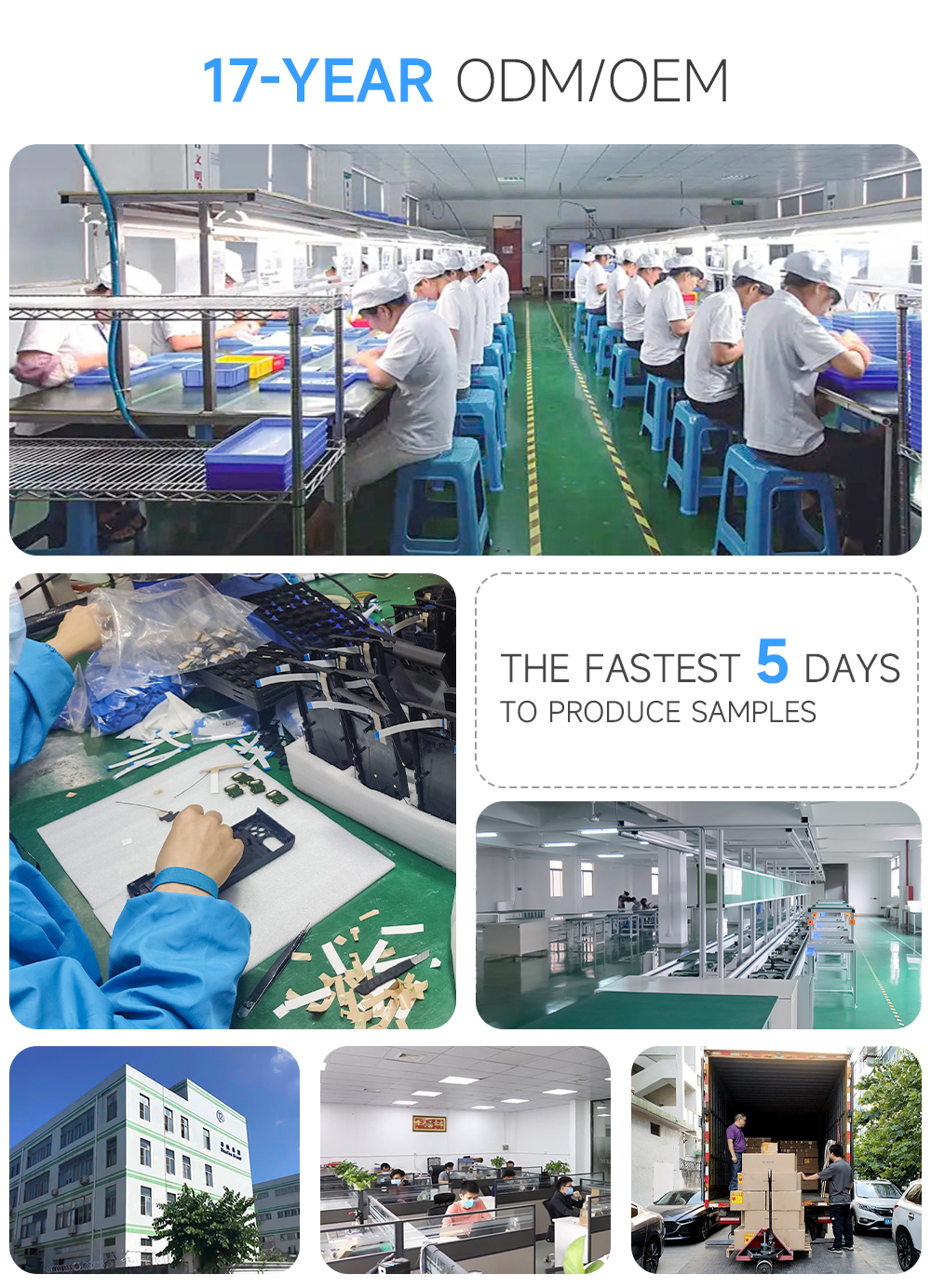

  Surely, our factory is based in Shenzhen Longgang, welcome to visit us anytime, above with pictures FYI.
• What is the standard of package?
  Export standard package or special package according to customer requirement.
• Do you accept OEM/odm business?
  Yes, we are OEM /odm  supplier.
• What kind of certificate you have ?
  We have ISO9001, CE, FCC
