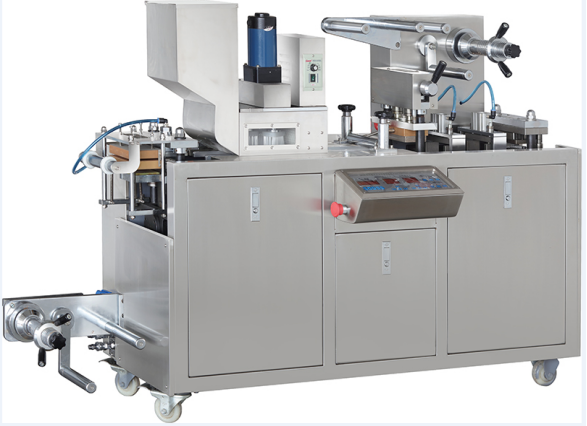

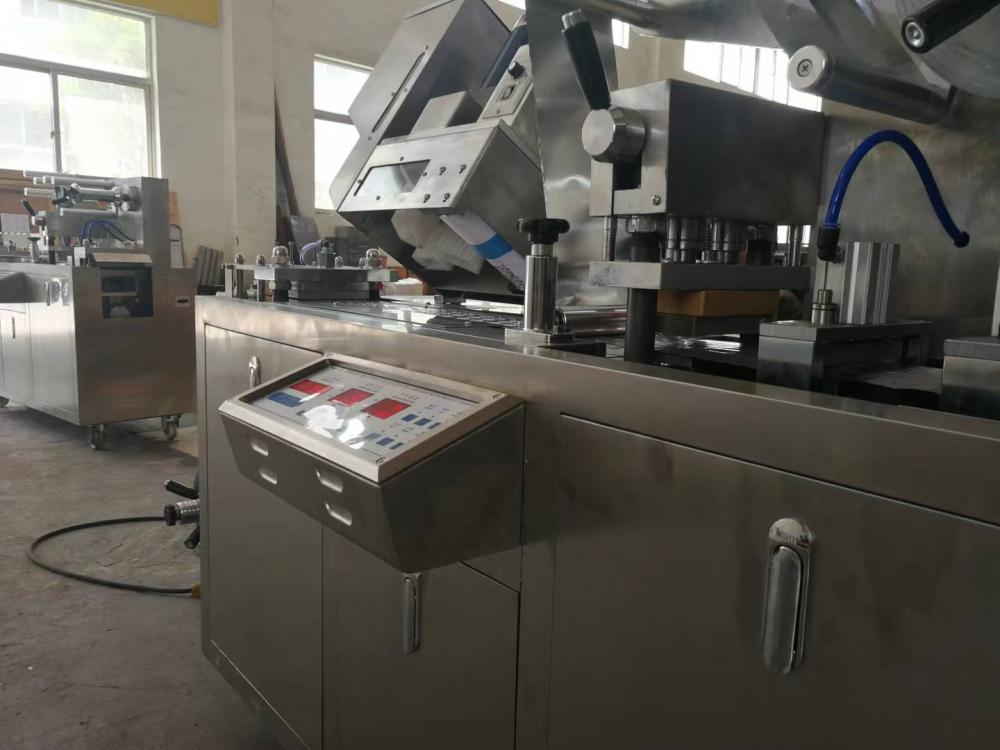

DPP-88 blister packing machine
3 year ago
1.WHY CHOOSE US
1.pulling length can be adjusted,mold is fixed by located groove so that it's easy to change mold.the machine heats the PVC through heated board and forms by compressed air frothing
6.the heating molds will automatically separate when the machine stops,which contributes to protect the packing material from heated mould
2.SUITABLE FOR???
Pharmaceutical industry of capsule,tablet and pilled foodstuff,food industry ,liquid chocolate candies,chewing gum,jam,facial mask,eye of the cosmetics industry,medical device industry,needles,syringes,infusion tube and electronic component products such as aluminum-plastic ,paper-plastic blister packing
3.TECHNICAL PARAMETER
Model
DPP-88
Punching frequency
10-30 cutting/min
Max forming area and depth(mm)(standard size 57x80)
100X90X15
Pulling length(mm)
4
Blister plate size
customized
Packing material PVC
(0.15-0.6)x350x(φ400）mm
Packing material PTP
(0.02-0.15)x350x(φ400）mm
Packing material PAPER
(50-100)g/m2 x 350x(φ400)mm
Power/voltage
380v 50hz 9.5kw
Air compressor(self-prepared)
0.6-0.8Mpa≥0.6m3/min
Mould cooling
60-100L/H
Size(including foundation)
3650x850x1700mm
Weight(kg)
300
Remarks:
1.delivery:30 working days in factory
2.Payment:30% advance,70% before shipping by TT/Paypal
3.If u feel interested in this machine or sifting machine or spices pulverizer or rotary vacuum dryer or powder mixer machine or capsule filling machine or or capsule printing machine or tablet press or capsule polishing machine or capsule counting machine etc someday that we produced u can tell me your specific requirement so that i can better recommend more suitable for your demands machine,what do u think
