Computer Lockstitch Car Skylight Sewing Machine DS-6935
3 year ago

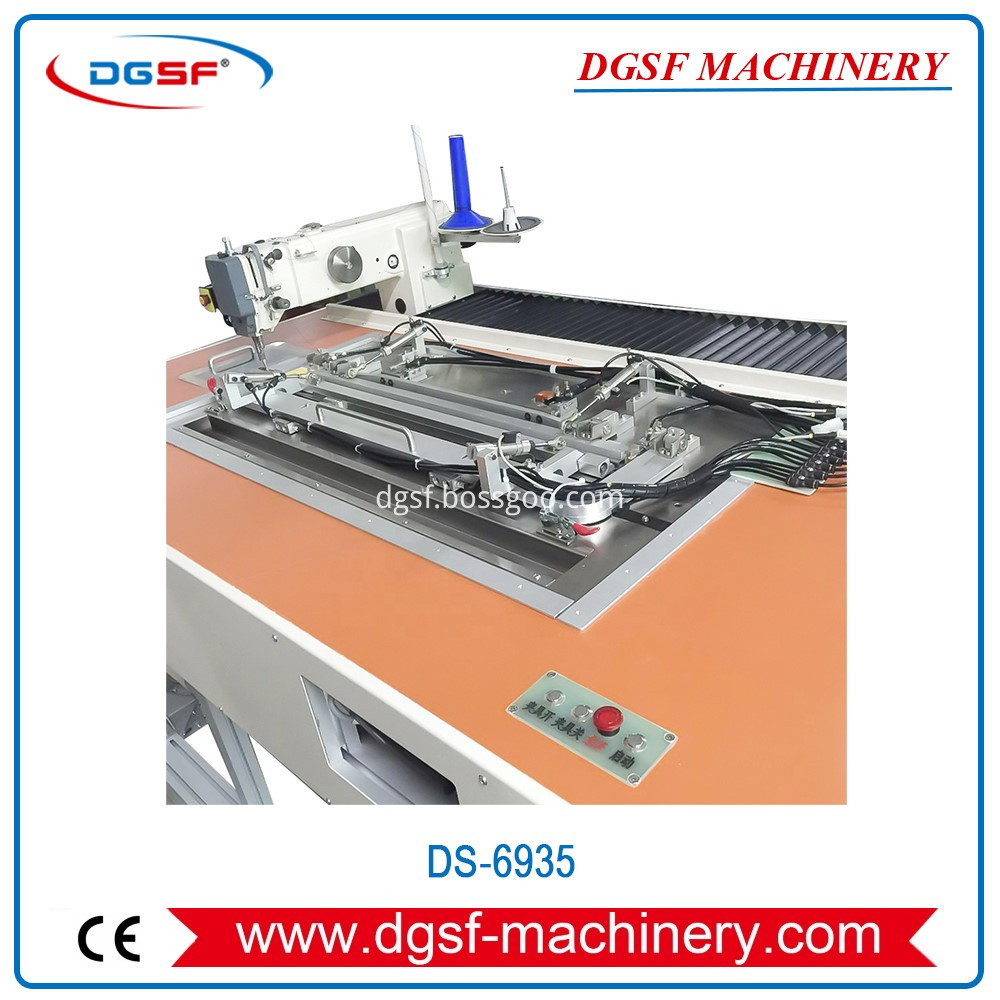

Computer Lockstitch Car Skylight Sewing Machine DS-6935
Product Description
1. This cutomization sewing machine is specially for making the car skylight.
2. X Y direction is servo drive, assure more beautiful sewing stitch, lower noise, lower bibration.
3. Powerful CNC system, with smart, wisdom, experience to compile the new instruction.
4. Screw guide module transmission.
Model: DS-6935
Sewing rang : 690mm x350mm
Sewing speed: 2700rpm/min ( intermittent feed 3mm )
Work holder lift : 25mm (max:30mm)
Presse foot lift : 20mm
Stepping foot stoke : 4mm(0.1mm-10mm Optional)
Hook : Double size rotary hook
Memory figure number : Max: 99999
Memory count : Each pattern 20,000 needles.
Needle : DP*17 (#14 - #24)
Stitch type : single needle lock stitch
Operation screen : 7 inch LCD touch control panel
Sewing thickness : ≤ 80 mm
Motor: 750W direct drive servo motor
Voltage : Single-phase 220-240V
Memory device : USB
Weight : 500kg
