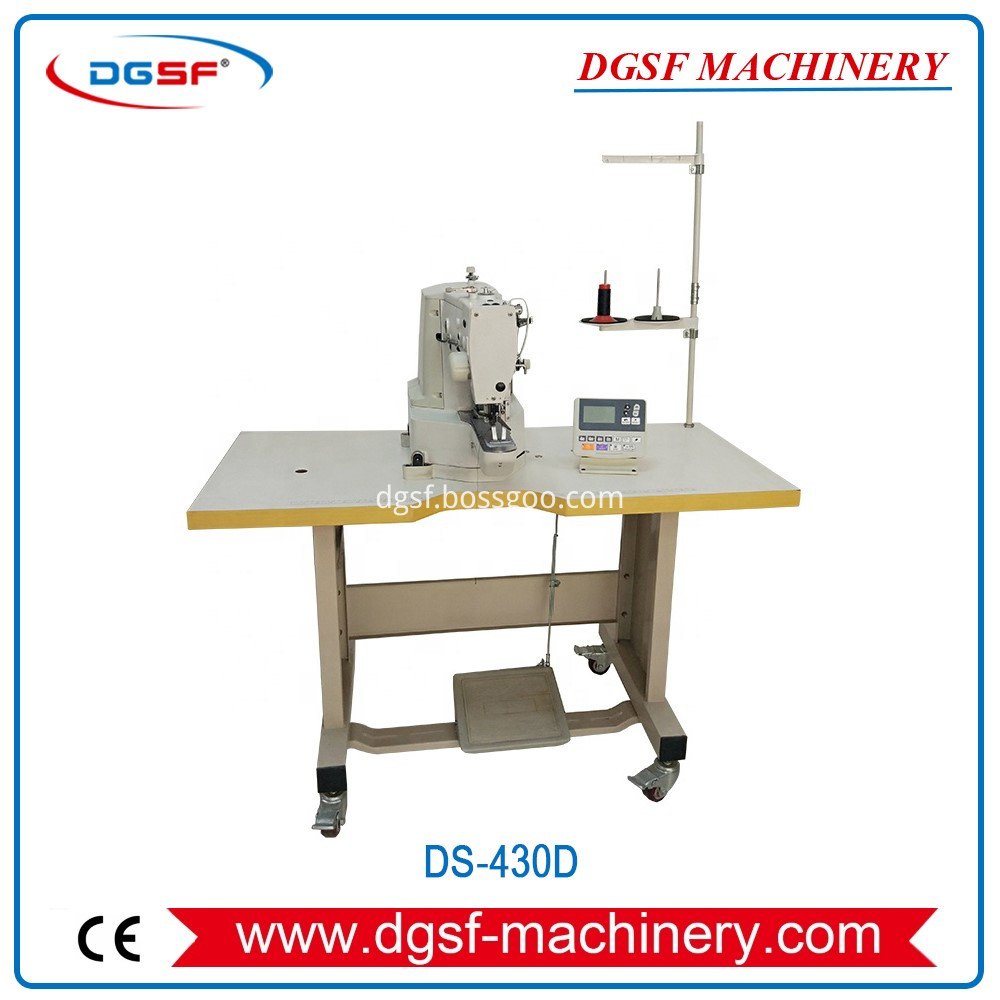

Computer Programmable Bartack Lockstitching Industrial Sewing Machine DS-430D
3 year ago
Computer Programmable Bartack Lockstitching Industrial Sewing Machine DS-430D
Product Description
1. This sewing machine is suitable for sewing all kinds of bags, trademarks and other processes.
2. It is directly driven by servo motor, with stable speed and high efficiency. It can cut, pull and adjust the thread automatically.
3. Different accessories are selected for the same machine to achieve different sewing effects.
4. This machine integrates common reinforcement, semicircle, hat eye and circular binding, and truly realizes multi-purpose of one machine.
Model DS-430D (DAHAO system)
G.W. 95KGS
Power AC 110V/220V
Dimension 83x40x80cm
Stitching area 40x30mm
Speed scope 3200RPM for 10 sections
Stitching length 0.05-12.7mm(min resolution capacity 0.05mm)
Max speed 2500RPM
Needle type DPx17 18#
Shuttle Double rotating shuttle
Presser foot type Pneumatic
Memory USB or internal storage
Max number of stitches 8000 per pattern
Proportional scale function X, Y 10-200%(min 0.1%)
Out presser foot lifting range 32mm
Inside presser foot lifting range 20mm
Inside presser foot working range 0-10mm
Main motor Direct drive servo motor 550W
