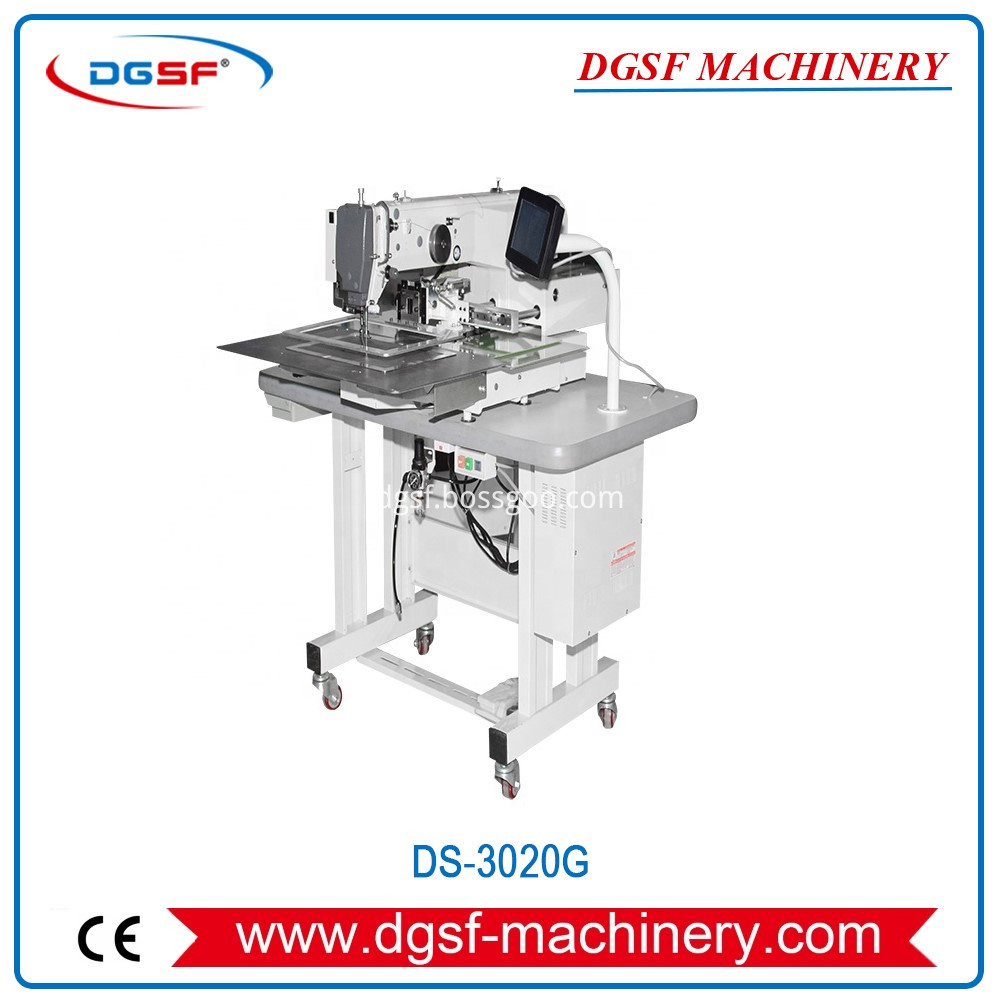

Electronic Pattern Sewing Machine For Sewing Shoes/Bags/Shirts DS-3020G
3 year ago
Electronic Pattern Sewing Machine For Sewing Shoes/Bags/Shirts DS-3020G
Product Description
1. Using big power motor presser foot to climb sewing the higher thickness material !
2. High speed, low noise and beautiful sewing lines, can be flexibly applied to wide range of sewing. Adopting energy saving technology, it saves more energy and is more environmental-friendly.
3. Through force, powerful machine needle. Low power consumption, economical and practical.
4. Even in high speed or sewing thick fabric, it can be totally achieve high quality and stable sewing.
5. Suitable for sewing shoes, bags, shirts, cuffs, etc. It is a medium sized sewing range with a wider range of models, more productive and economical produts, more productive than the traditional sewing methods. Increased by about 100% to 300%.
6. Save cost, save time and power, high efficiency.
Model: DS-3020G
Sewing range: 300mm*200mm
Sewing speed: 2700rpm/min
Work holder lift : 25mm (max:30mm)
Stepping foot lift : 20mm
Stepping foot stoke : 4-10mm (Optional)
Hook: Double size rotary hook
Memory figure number : Max: 99999
Memory count: Each pattern 20,000 needles.
Needle : DP *17 ( #18 )
Operation screen : 7 inch LCD touch control panel
Pressure system : Pneumatic action system
Scale up/down function : X aixs, Y aixs 10-200%
Motor: 750W direct drive servo motor
Voltage : Single-phase 220-240V,with earth wire protection.
Memory device : USB
Weight : 176kg
