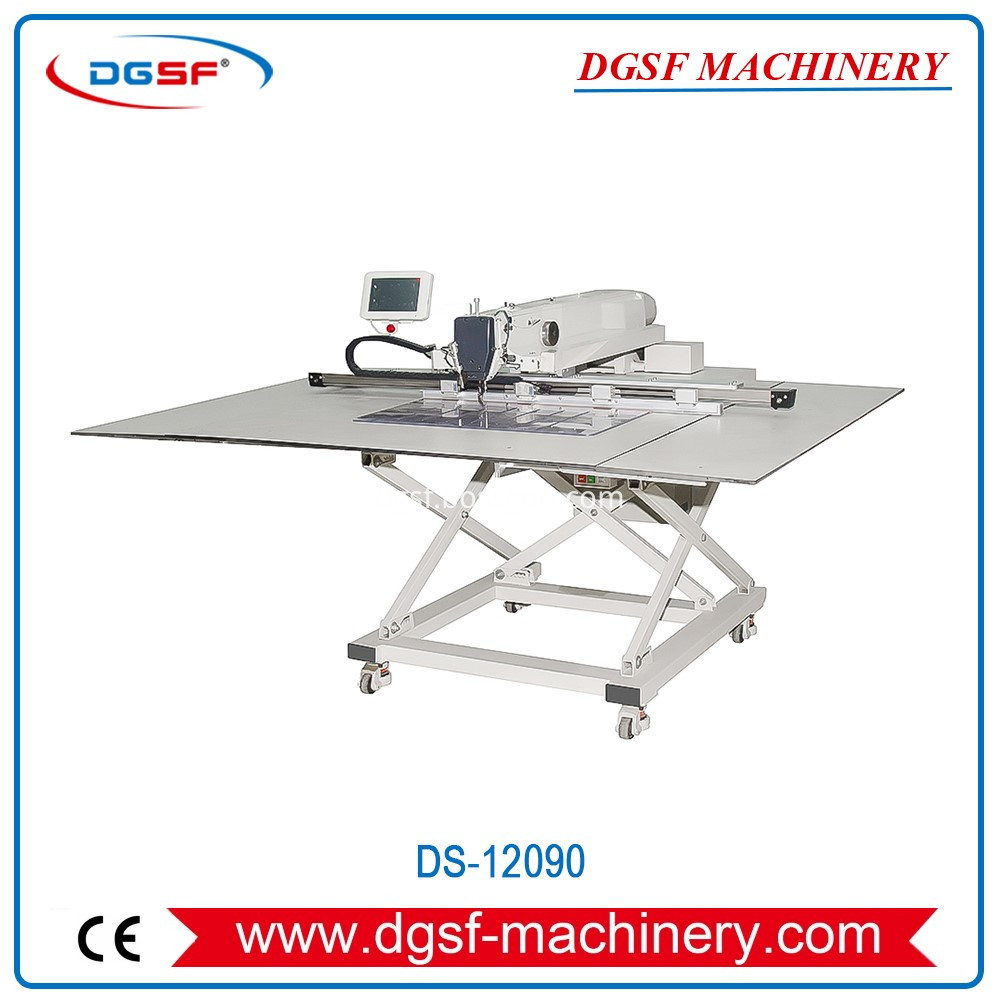

Fully Automatic Long-arm Template Sewing Machine DS-12090
Product Description
1.Three shaft rigidity, precise and quick, high speed operation, low noise.
2. Powerful CNC system, with smart, wisdom, experience to compile the new instruction.
3. Super large working space.
4. Double screw guide module transmission.
5. The main parts are imported parts.
6，Latest LCD Electronic Display System!
7，7 inch LED touch screen. Sensitive response, easy touch, support Chinese/English/Korean/Vietnamese, four languages!
8，Smooth feeding, low noise, reduce the wear of track and related components, thereby prolonging service life, greatly improving work efficiency !
9，XY feeding guide adopts high quality imported material with low noise, smooth operation, high quality imported CPC guide, low noise cloth belt, durable!
10，The whole machine adopts imported well-known brand installed spare parts to strive for excellence! Bring the performance of intelligent computer pattern sewing machine into full play!
Model: DS-12090
Sewing rang : 1200mm x900mm
Sewing speed: 2700rpm/min ( intermittent feed 3mm )
Work holder lift : 25mm (max:30mm)
Presse foot lift : 20mm
Stepping foot stoke : 4mm(0.1mm-10mm Optional)
Hook : Double size rotary hook
Memory figure number : Max: 99999
Memory count : Each pattern 20,000 needles.
Needle : DP*17 (#14 - #24)
Stitch type : single needle lock stitch
Operation screen : 7 inch LCD touch control panel
Sewing thickness : ≤ 80 mm
Motor: 750W direct drive servo motor
Voltage : Single-phase 220-240V
Memory device : USB
Weight : 600kg
