RA08T Face Temperature Access Control
3 year ago
Product details
With the development of face recognition technology, the application of face recognition system is more and more extensive. The number of personnel in the school is large, the mobility is large, the personnel are miscellaneous, and the openness is high. Although it is convenient for personnel to enter and exit the school, it brings certain difficulties to the safety management of the school. The security personnel do not necessarily know all the people in and out, so intelligent equipment is needed to assist the security personnel in improving their management. The face recognition intelligent gate can not only recognize the identity of people entering and leaving, but also improve the prevention and control management.

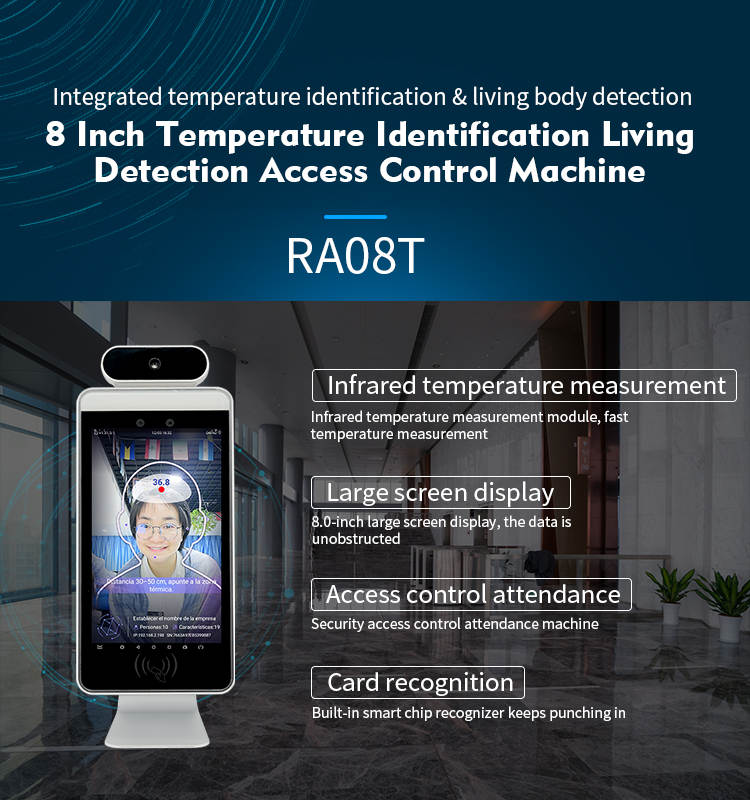

RA08T facial temperature measurement open source door access control device
Features
1. Dynamic Face mask recognition with card function.
2. Wiegand input / output, TCP/IP WIFI.Optional 4G.
3. Enrollment on the device or software, realtime record time attendance check.
4. Body temperature measurement, mask enforcement and high temperature alarm.
5. Multiple languages are supported up to 13 kinds,
6. Ready PC software and API & cloud SDK free with order.
7. Stranger open the door function, user-friendly for visitors.
2. Wiegand input / output, TCP/IP WIFI.Optional 4G.
3. Enrollment on the device or software, realtime record time attendance check.
4. Body temperature measurement, mask enforcement and high temperature alarm.
5. Multiple languages are supported up to 13 kinds,
6. Ready PC software and API & cloud SDK free with order.
7. Stranger open the door function, user-friendly for visitors.
Special notes: RA08T with Android 7.1.2 OS, much user-friendly for further development; Also we have fully open source original hardware version for your option.
Specification
|
RA08T 8 inch Dynamic Facial Recognition Time Attendance Device
|
|
|
Screen
|
|
|
Dimension
|
8 inches screen, full view angle, IPS LCD screen
|
|
Resolution
|
1280×800
|
|
Camera
|
|
|
Dual Camera
|
200W (RGB Camera) ; 130W (Infrared Camera)
|
|
Type
|
Wide dynamic camera
|
|
Aperture
|
4mm
|
|
Focal Length
|
0-2m
|
|
White Balance
|
Automatic
|
|
Wide Dynamic
|
Support
|
|
Core Parameter
|
|
|
CPU
|
4 cores, 1.8GHz
|
|
Memory
|
2GB RAM, 8GB ROM
|
|
Accessories
|
|
|
Filling Light
|
LED filling light
|
|
Card Reader (Optional)
|
IC card reader
|
|
Network Module
|
Support wired, wireless (2.4G Wi-Fi),optional 4G
|
|
Interface
|
|
|
Serial Communication Interface
|
RS232
|
|
Relay Output
|
Only COM and NO
|
|
Wiegand Interface
|
support Wiegand 26/34 input /output
|
|
Reset Interface
|
Yes
|
|
Interface
|
USB2.0 RJ45, External OR code
|
|
Function
|
|
|

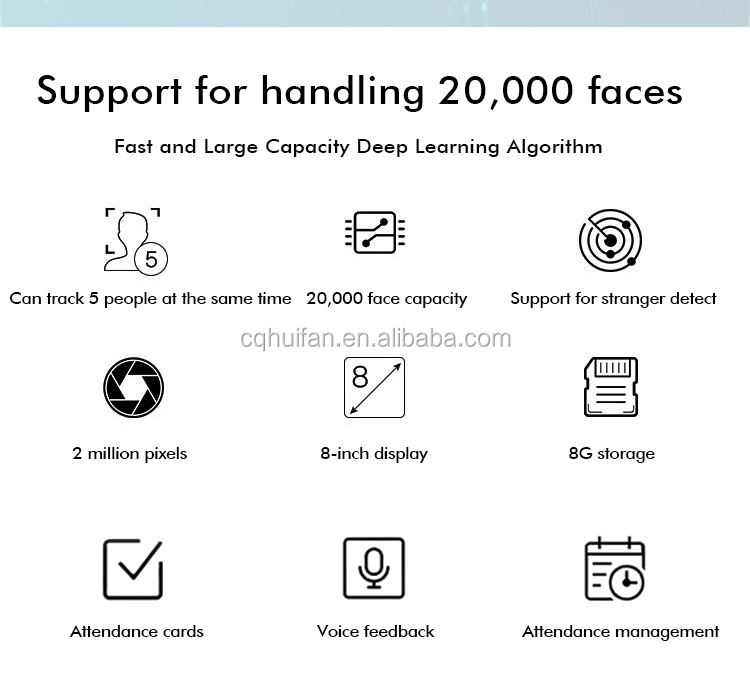

Face Detection
|
Support detecting and tracking 5 people at the same time
|
|
1:N Face Recognition
|
99.99%
|
|
Face Capacity
|
20,000, optional 50,000
|
|
1:1 Person Certificate Comparison
|
More than 99%
|
|
Temperature detection
|
Support
|
|
Stranger Detection
|
Support
|
|
Remote Upgrade of Equipment
|
Support
|
|
Recognize Distance
|
Support
|
|
Protection Level
|
IP64, certain dustproof and waterproof function
|
|
General Parameters
|
|
|
Power Supply
|
DC12V (±10%)
|
|
Operating Temperature
|
16℃~30℃
|
|
Working Humidity
|
10% to 90%
|
|
Power Consumption
|
10W MAX
|
|
Installation Method
|
Turnstile, Wall mounted, Desktop, Floor Type
|
|
Device Size
|
234(L)*125(W)*24.5(H)mm
|
|
Weight
|
3KG (Device Only)
|

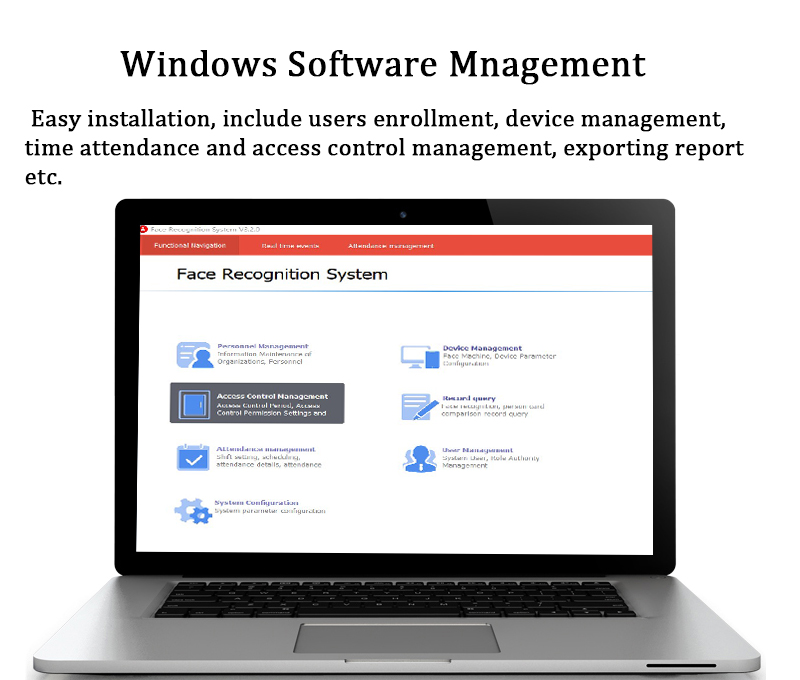

Software

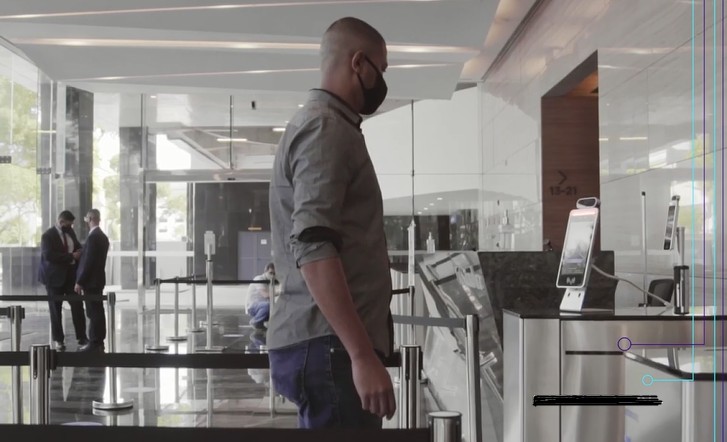

Applications

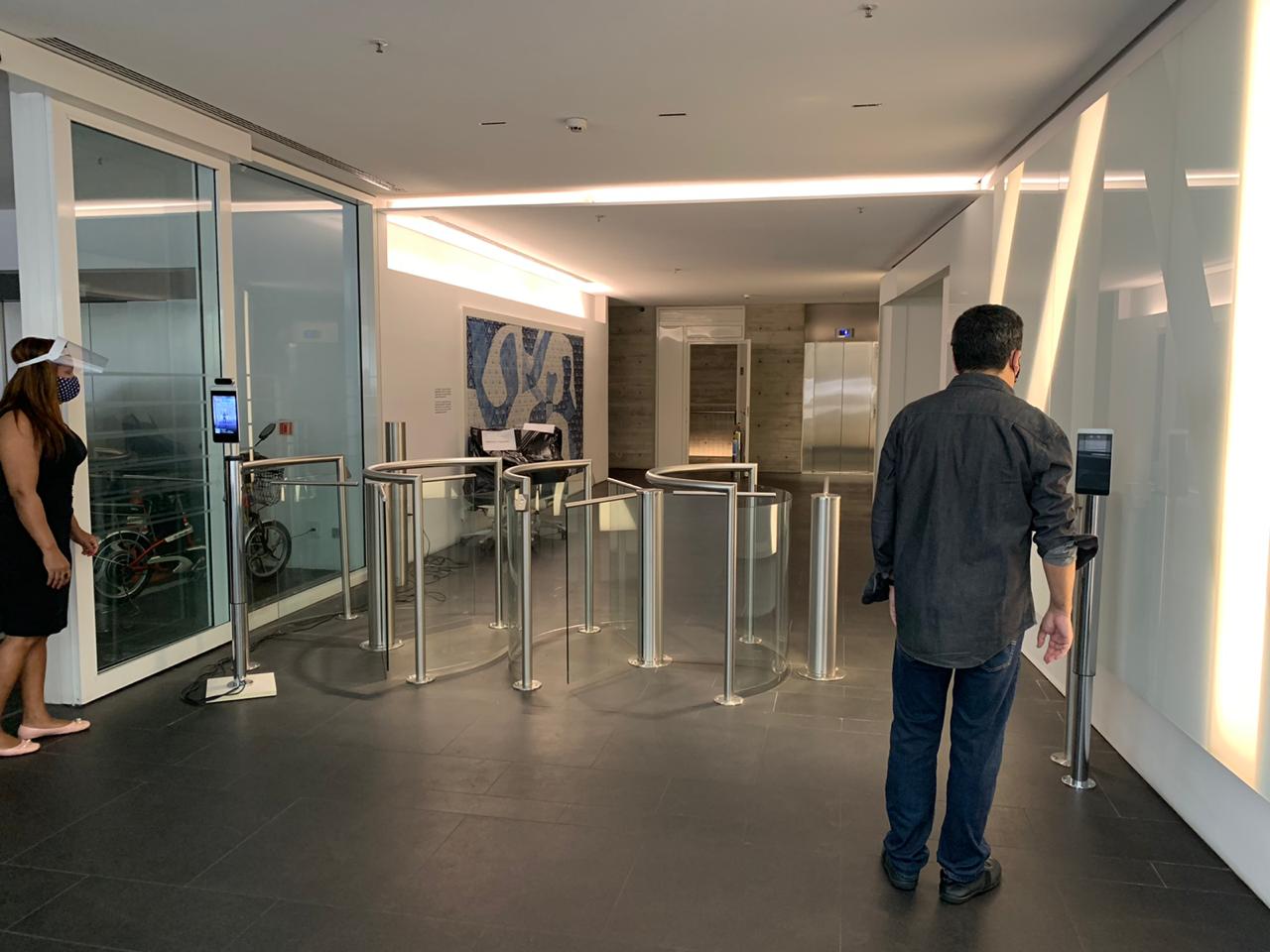

Building entrance in Brazil
Office building entrance in Portugal

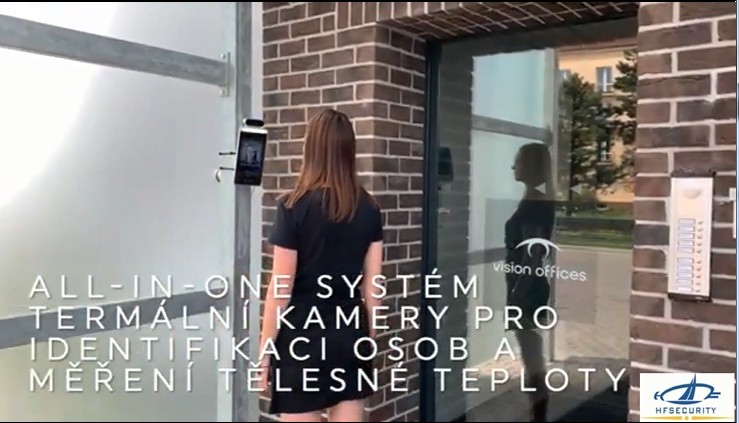

Company entrance slide door in Czech Republic

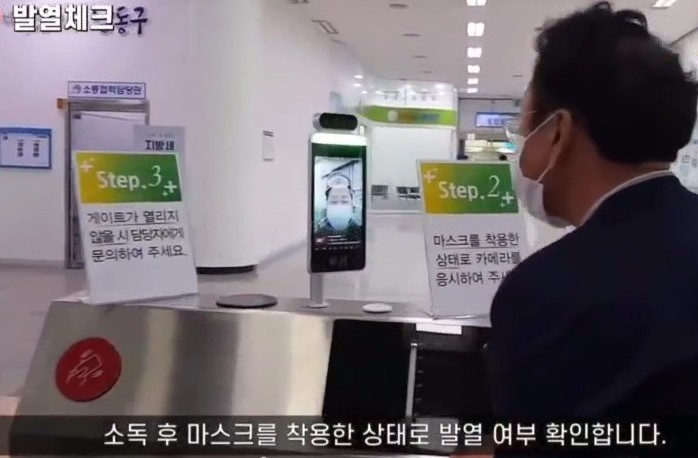

Korea Exhibition Entrance
Why Choose Us
Huafan Group is located in Chongqing city,Southwest of China.
Her severalbrands,HFSecurity,BIO,Heystar,are widely in the field of interior decoration,light current,security and protection.We provide your one-stop solution in security and protection with the most professional and exprienced team in China(Shenzhen and Chongqing city),Pakistan,and United Kingdom.With professional attitude,we provide secure integration solution and products.Committed to the success of clients,we have server for more than thousands pf partners with 90% positive feedbacks in the last 10 years.We will keep going,creat interests of clients,create opportunities for staff,and create value for the society.
Certificate
FAQ
Q1: How many kinds of interface does your device have ?
A: RA08T has RS232, Relay, Wiegand input and output, supports different external device connection.

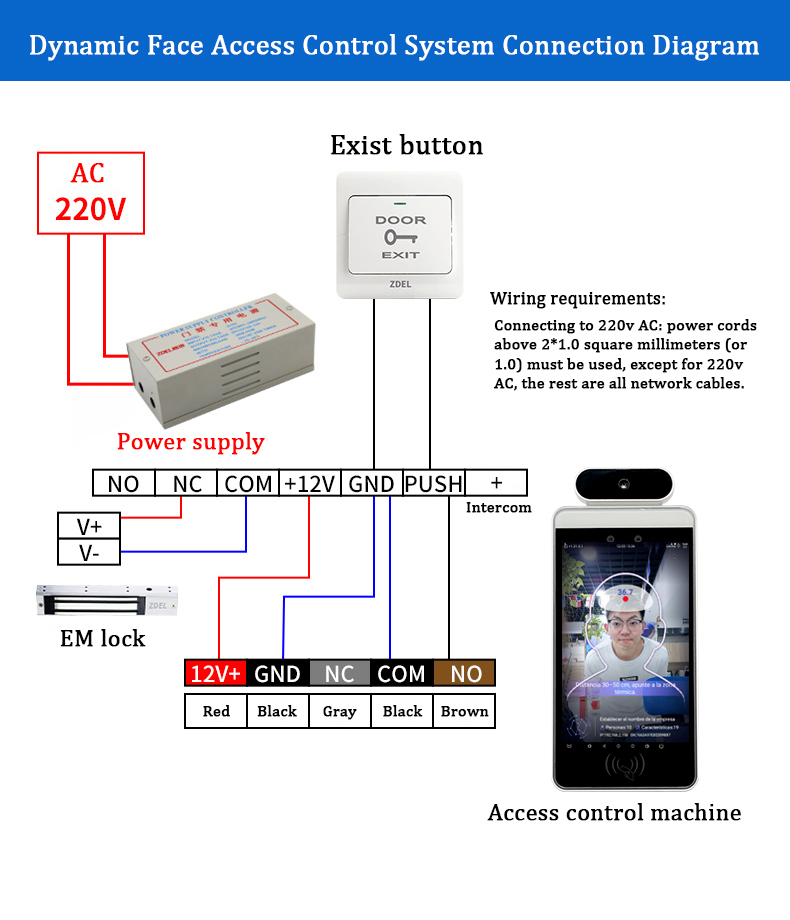

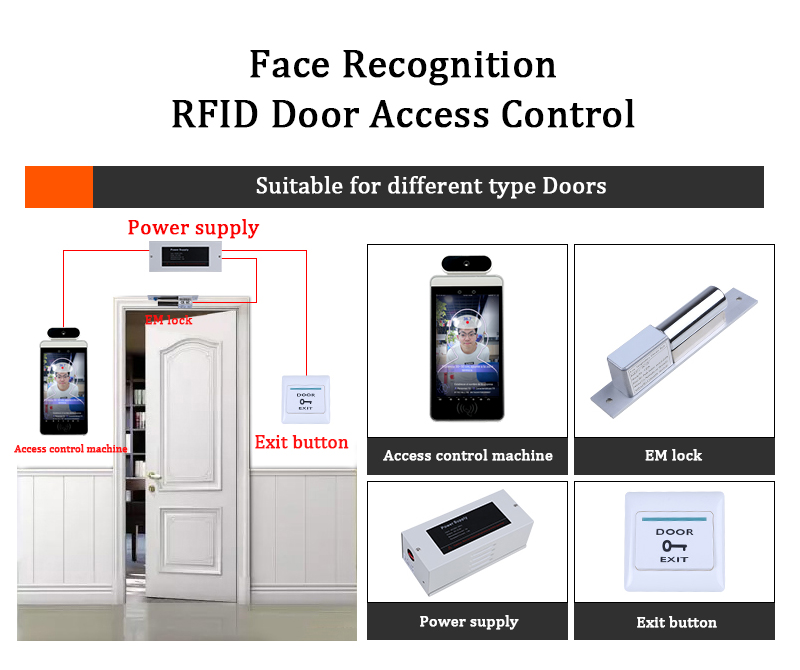

Q2: Can it be connected with electric lock ?
A:YES RA08T can be connected with different kinds of doors ,such as turnstile, slide door, revolving door, electric magnetic lock and so on.
Q3: Do you provide any warranty?
A: YES, 1 year warranty, and lifetime technical support regarding to the hardware.
Q4: What is your MOQ?
A:Normally 2pcs, special case 1 pc also okay at your convenience.
Q5: What is the leading time?
A: Sample needs 3 working days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable with order.
A: Sample needs 3 working days, mass production time needs 10-25 days for order less than 5000 pcs. Time is negotiable with order.
Q6: How do you ship the goods and how long does it take arrive?
A: Sample order is usually shipped out by DHL or FedEx door to door delivery. For bulk order air or sea shipping is suggested. Further discussion is always available.
A: Sample order is usually shipped out by DHL or FedEx door to door delivery. For bulk order air or sea shipping is suggested. Further discussion is always available.
