RX precise vacuum filter, a kind of technical porous ceramic filter, combines mechanical and electric machine, ceramic tube with micro-hole and ultrasound, depending on vacuum suction and capillary function, under pressure difference, the filter cake will be formed on the surface of ceramic filter plate when the slurry go through the ceramic filter, at the same time, the water will run out through the filter medium to achieve the purpose of the solid-liquid separation. Ceramic filter has the advantage of high efficiency, lower production cost, energy-saving and environmental protection and so on, the ceramic filter is widely used for mine, metallurgy, chemical industry and environmental protection industry.
Specifications of machine for acid leaching residue:
|
Rongxin filter |
|
RX30-10 |
RX60-15 |
RX80-16 |
RX144-12 |
RX240-20 |
|
Disc dimensions |
mm |
1900 |
2180 |
2210 |
3812 |
3812 |
|

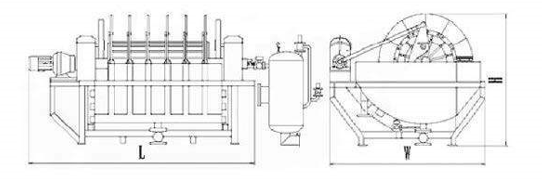

Main dimensions, length |
mm |
5800 |
7100 |
7680 |
9060 |
12260 |
|
Main dimensions, width |
mm |
3170 |
3400 |
3595 |
5200 |
5200 |
|
Main dimensions, height |
mm |
2526 |
2880 |
3205 |
4800 |
4800 |
|
Weight |
kg |
9000 |
14000 |
17500 |
47000 |
69000 |
|
Installed power |
kw |
26.63 |
46.28 |
57.26 |
100 |
145 |
|
Power consumption |
kw |
20 |
37 |
46 |
70 |
100 |
1.High vacuum degree (0.09-0.098MPa), filter cake has low water content.
2.Solid content of liquid the maximum is 25ppm, repeated application is available, drainage is lessened.
3.It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.
4.Filter cake cleaning process is added to clean proper materials.
5.It combines PLC, computer and automatic valve control with high automatization and labor force has been lowered.
6.Compact structure, covering less floor area, easy installation and maintenance.
7.Advanced drainage system fits for any working conditions.
|
Type/ Parameter |
Filter Discs (Ring) |
Quantity of Ceramic Plates |
Cubage of Groove (M3) |
Installation Power (KW) |
Weight of Equipment (T) |
Motion Power (KW) |
Length of Main Enginer (M) |
Width of Main Engineer (M) |
Height of Main Engineer (M) |
|
RX-1 |
1 |
12 |
0.21 |
3.5 |
1 |
2 |
1.6 |
1.4 |
1.5 |
|
RX-4 |
2 |
24 |
1 |
7 |
2.0 |
3 |
2.4 |
2.5 |
2.1 |
|
RX-6 |
2 |
24 |
1.2 |
7 |
3.0 |
6 |
2.4 |
2.9 |
2.5 |
|
RX-9 |
3 |
36 |
1.7 |
9 |
3.4 |
7 |
2.7 |
2.9 |
2.5 |
|
RX-12 |
4 |
48 |
2.2 |
11 |
4.0 |
7.5 |
3 |
2.9 |
2.5 |
|
RX-15 |
5 |
60 |
2.7 |
11.5 |
4.5 |
8 |
3.3 |
3 |
2.5 |
|
RX-21 |
7 |
84 |
4.0 |
13.5 |
9 |
9 |
4.6 |
3 |
2.6 |
|
RX-24 |
8 |
96 |
4.5 |
16.5 |
9.5 |
10.5 |
4.9 |
3 |
2.6 |
|
RX-27 |
9 |
108 |
5 |
17 |
10 |
11 |
5.2 |
3 |
2.6 |
|
RX-30 |
10 |
120 |
5.5 |
17.5 |
10.5 |
11.5 |
5.5 |
3 |
2.6 |
|
RX-36 |
12 |
144 |
7 |
23 |
11.5 |
16 |
6.6 |
3 |
2.6 |
|
RX-45 |
15 |
180 |
8.5 |
25 |
13 |
19 |
7.5 |
3 |
2.6 |
|
RX-60 |
15 |
180 |
12.5 |
33 |
17 |
22 |
7.5 |
3.3 |
3.0 |
|
RX-80 |
20 |
240 |
16.2 |
40 |
19 |
24 |
9 |
3.3 |
3.0 |
|
RX-100 |
20 |
240 |
18.5 |
53 |
25 |
35 |
11 |
3.6 |
3.3 |
|
RX-120 |
24 |
288 |
22 |
60 |
30 |
40 |
12.2 |
3.6 |
3.3 |
|
RX-204 |
17 |
255 |
50 |
132 |
58 |
96 |
11.06 |
5.2 |
4.8 |
|
RX-240 |
20 |
300 |
65 |
145 |
62 |
100 |
12.26 |
5.2 |
4.9 |
