6014 C 6014 D Burkert Type Solenoid Valve
6014 is a direct-acting plunger solenoid valve. Various seal material combinations are available depending on the application. A specific flange design (SFB) enables space-saving arrangement of valves on a manifold. The coils are moulded with polyamide or with chemically resistant epoxy.
Technical Data of 6014 Solenoid Valve:
|
Model
|
Port Size
(inch)
|
Orifice Size
(mm)
|
Kv
(m³ /h)
|
Pressure Range (bar)
|
Medium Temperature (℃)
|
Body Material
|
Voltage
|
|
3 Way Normally Closed (6014 C), 3 Way Normally Open (6014 D)
|
|||||||
|
6014
|
1/8''
|
1.5
|
0.07
|
0 to 16
|
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
|
Brass
Stainless Steel
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
|
2
|
0.11
|
0 to 10
|
|||||
|
2.5
|
0.16
|
0 to 6
|
|||||
|
1/4''
|
1.5
|
0.07
|
0 to 16
|
||||
|
2
|
0.11
|
0 to 10
|
|||||
|
2.5
|
0.16
|
0 to 6
|
|||||
|
Sub-base
(SFB)
|
1.5
|
0.07
|
0 to 16
|
||||
|
2
|
0.11
|
0 to 10
|
|||||
BRANDO Solenoid Valve Factory Production Video:

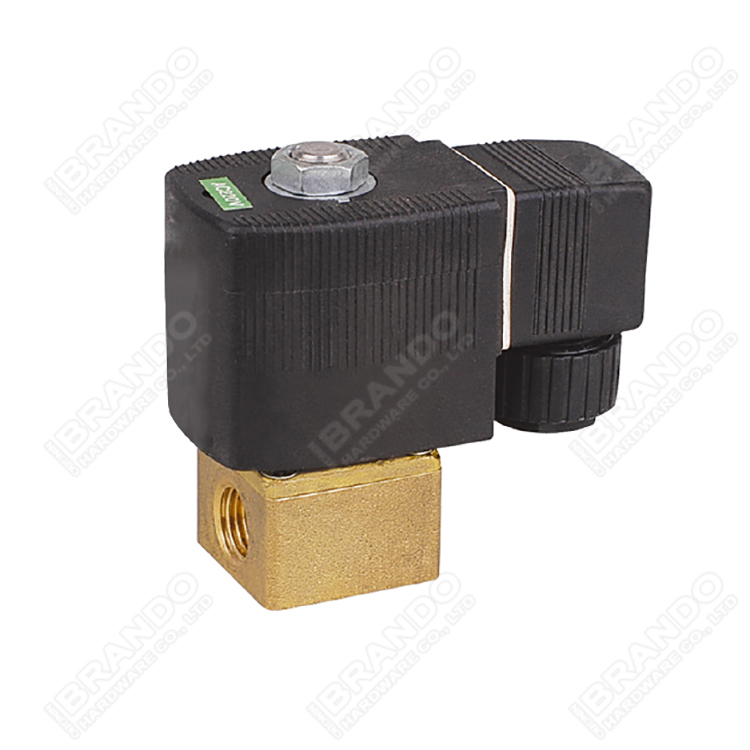

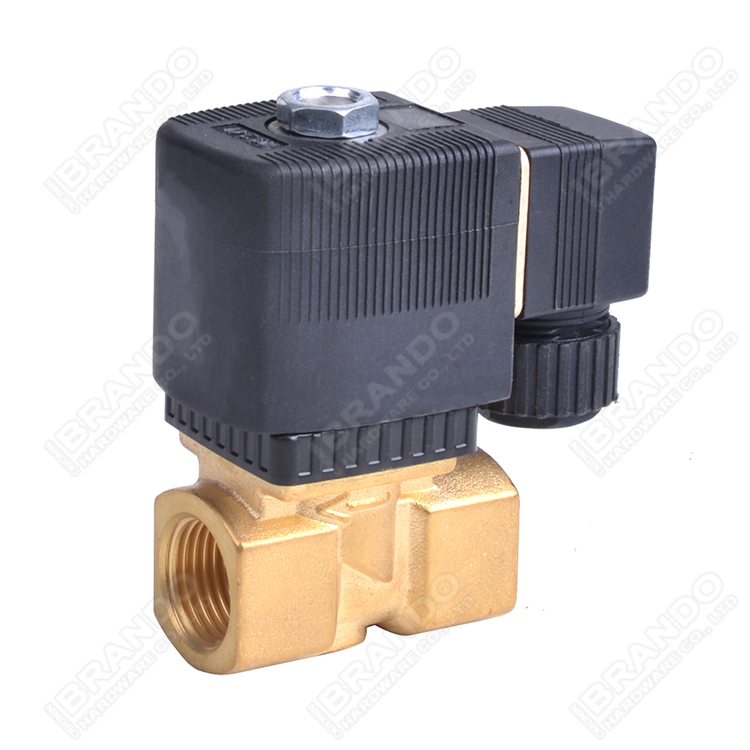

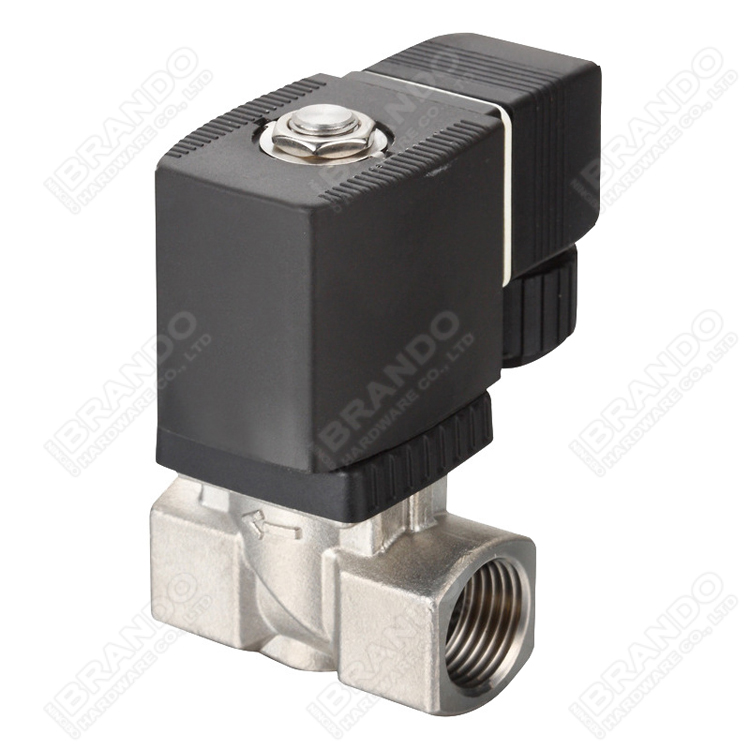

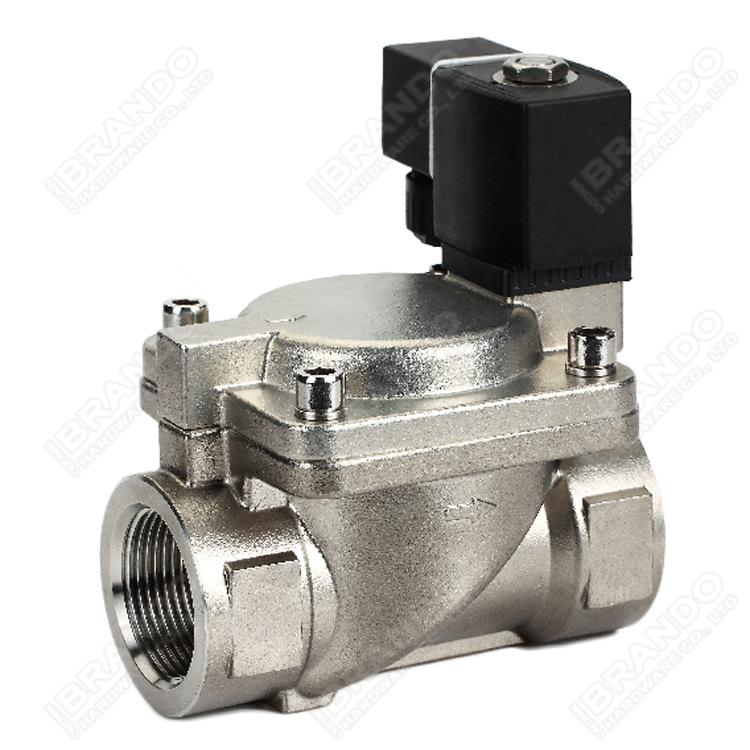

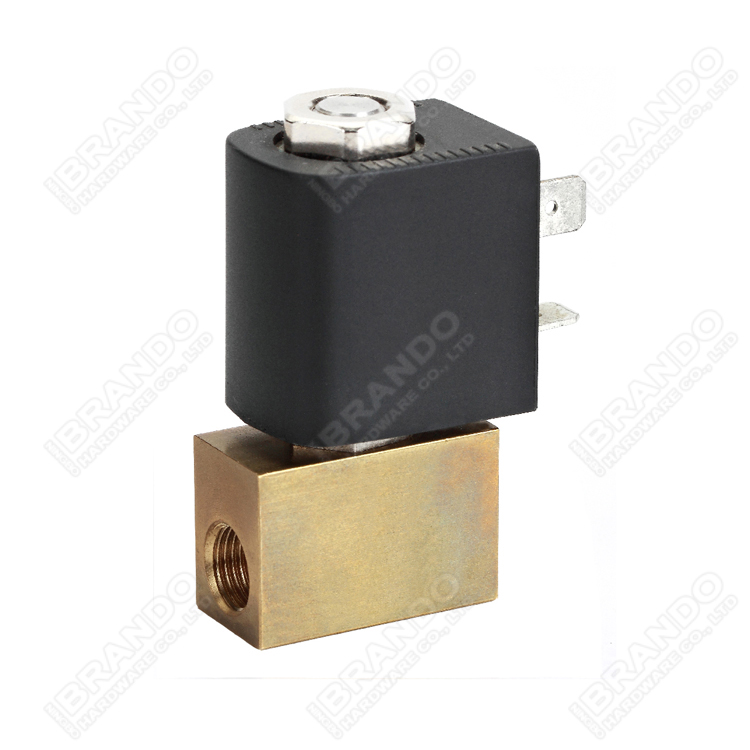

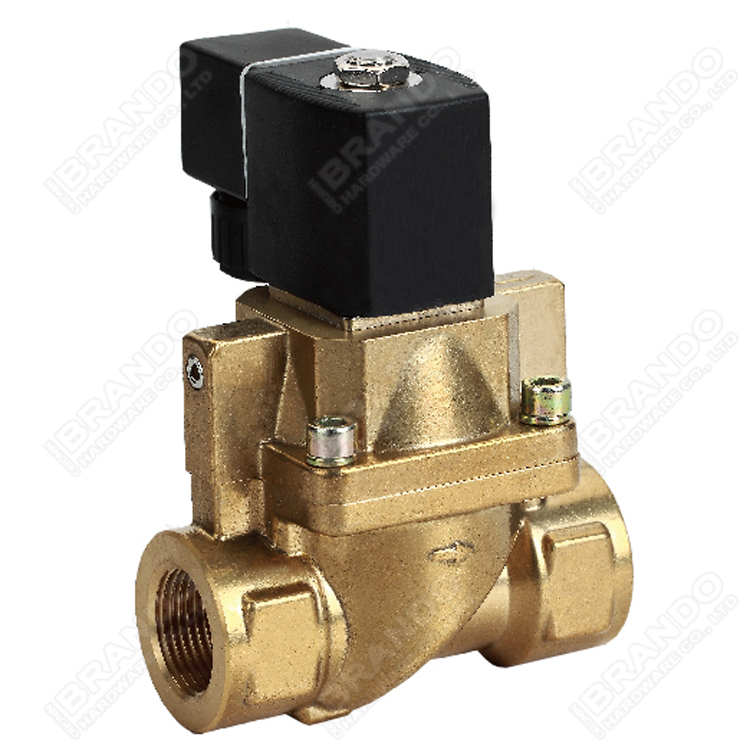

More Burkert Type Solenoid Valves for you to choose:
