Air Cooled Red Chilli Powder Pulverizer
3 year ago

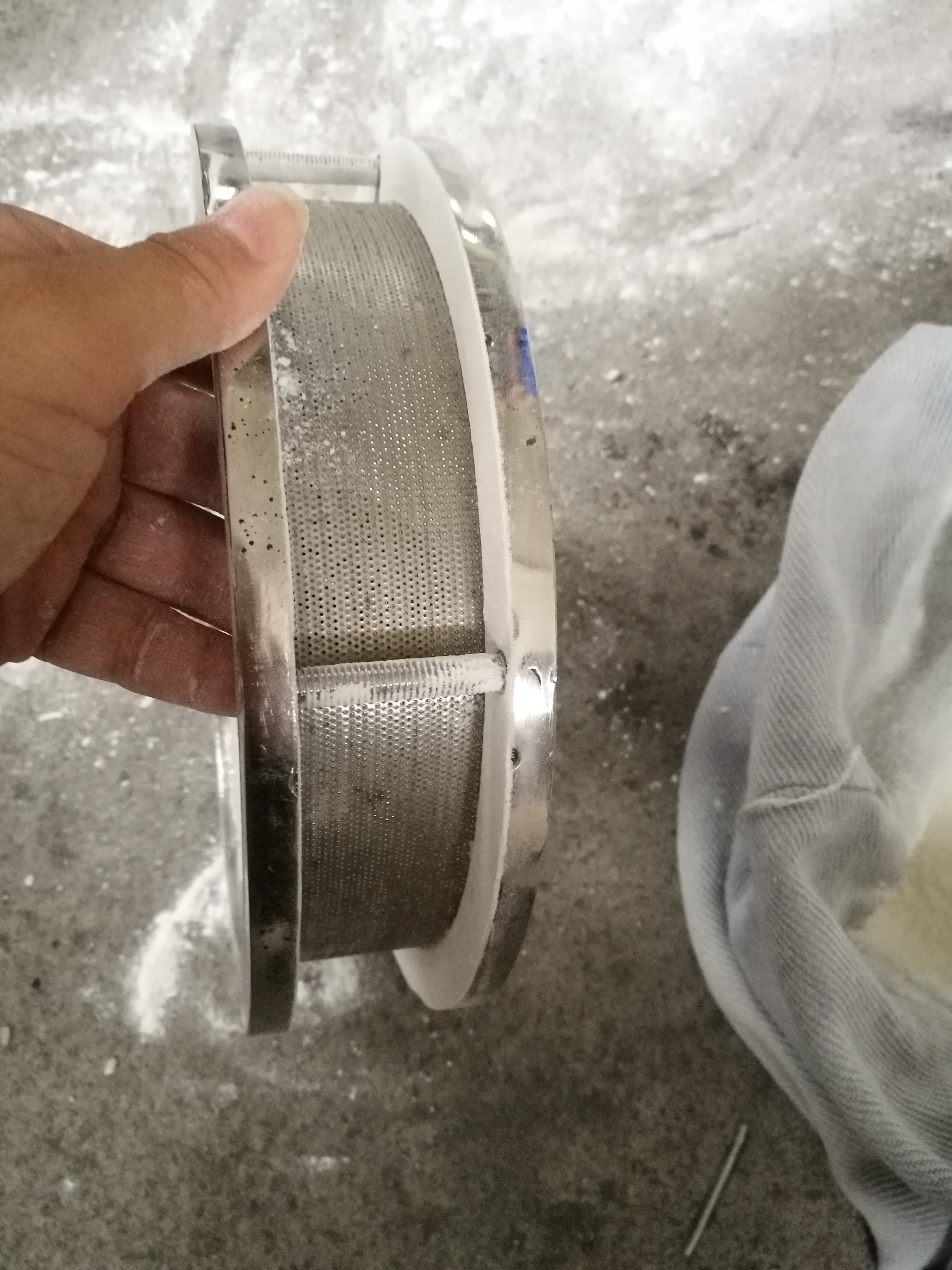

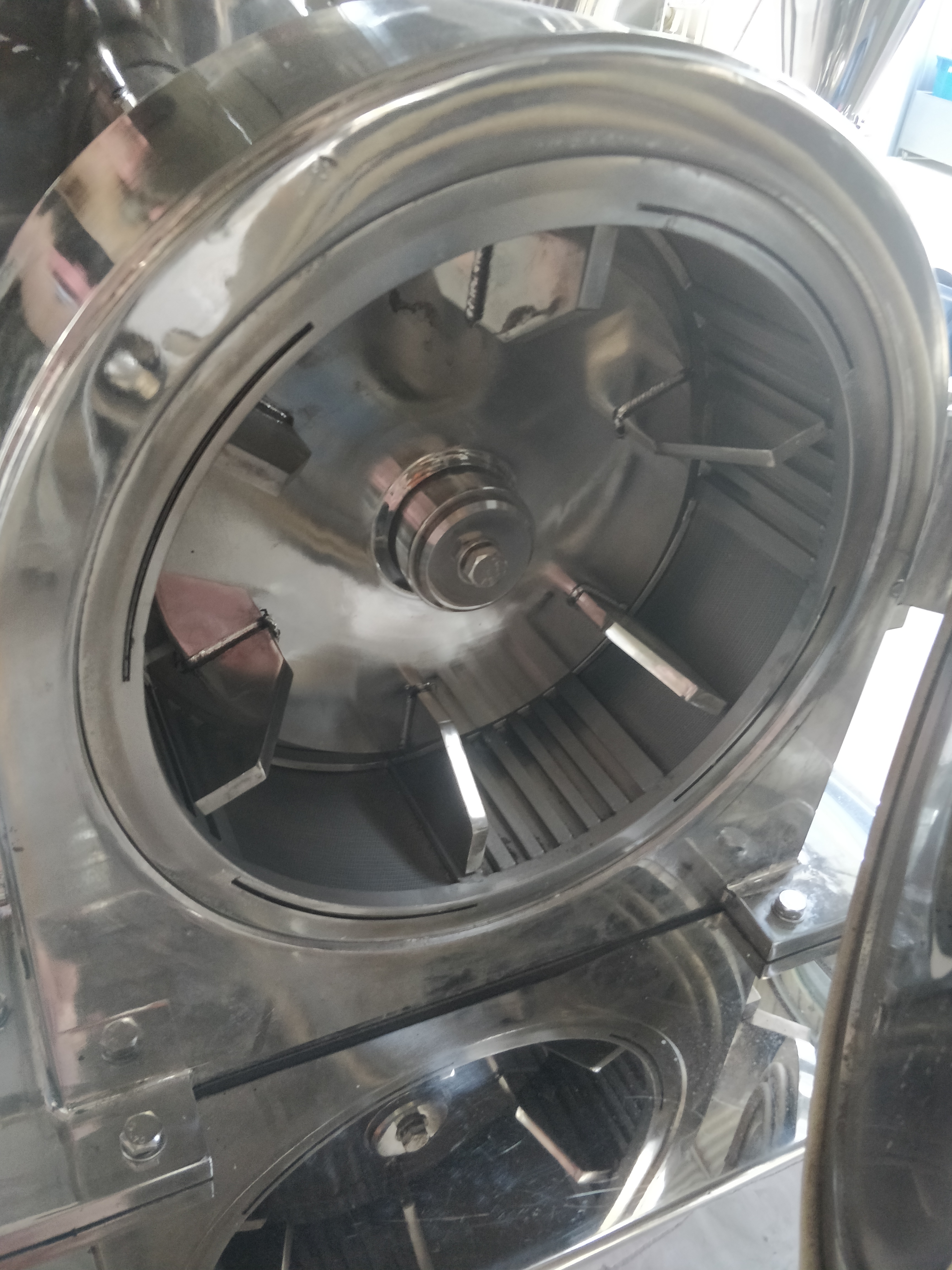

The air cooled grinding machine uses the wind wheel type high speed rotary cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen.
TECHNICAL DATA
|
Model
|
150
|
250
|
350
|
500
|
|
Capacity（kg/h）
|
20-80
|
30-200
|
50-300
|
80-500
|
|
Size of input granules（mm）
|
< 10
|
< 10
|
< 12
|
< 15
|
|
Size of output granules
|
12-120
|
12-120
|
12-120
|
12-120
|
|
Motor power（kw）
|
2.2
|
5.5
|
7.5
|
11
|
|
Speed of principal axis ( r/mim）
|
3000
|
2900
|
2900
|
2800
|
|
Weight（kg）
|
185
|
195
|
200
|
320
|
|
Overall size（L×W×H）（mm）
|
550×420×1400
|
770×750×1500
|
870×750×1608
|
960×750×1750
|
