Vegetable protein powder mixing machine
3 year ago
Product details
VI type double helix conical mixer, it is composed of transmission part, barrel cover, screw, barrel body, discharge valve and so on.
1. Transmission part: the movement of the rotation motor and the revolution motor is adjusted to a reasonable speed through the worm gear and gear, and then transmitted to the spiral to realize the two kinds of movement.
2. Barrel cover part: the barrel cover supports the whole transmission part, and the transmission part is fixed on the barrel cover with a screw. The barrel cover is provided with a feeding port, an observation port, a cleaning port and a maintenance hole.
3. Spiral part: When the two asymmetrically arranged helices in the cylinder are self-moving and rotating the planets, they turn the materials in a large range to make the materials evenly mixed quickly.
4. Cylinder part: The cylinder is a conical structure, used for feeding materials, fast, clean, no accumulation, no dead Angle of discharge.
5. Discharge valve: The discharge valve is installed at the bottom of the barrel, used to control the material and discharge, the discharge valve can be split, pneumatic, electric three structural forms.
1. Transmission part: the movement of the rotation motor and the revolution motor is adjusted to a reasonable speed through the worm gear and gear, and then transmitted to the spiral to realize the two kinds of movement.
2. Barrel cover part: the barrel cover supports the whole transmission part, and the transmission part is fixed on the barrel cover with a screw. The barrel cover is provided with a feeding port, an observation port, a cleaning port and a maintenance hole.
3. Spiral part: When the two asymmetrically arranged helices in the cylinder are self-moving and rotating the planets, they turn the materials in a large range to make the materials evenly mixed quickly.
4. Cylinder part: The cylinder is a conical structure, used for feeding materials, fast, clean, no accumulation, no dead Angle of discharge.
5. Discharge valve: The discharge valve is installed at the bottom of the barrel, used to control the material and discharge, the discharge valve can be split, pneumatic, electric three structural forms.
Technical data
|
MODEL
|
MODEL 180
|
MODEL 300
|
MODEL 500
|
MODEL 1000
|
|||||
|
Capacity（kg/time)
|
60
|
80
|
130
|
240
|
|||||
|
Total volume （m3）
|
0.18
|
0.3
|
0.5
|
1
|
|||||
|
Blending time （min)
|
4-8
|
6-10
|
6-10
|
6-10
|
|||||
|
Motor power（kw）
|
1.1× 1.1
|
1.1× 1.5
|
2.2× 2.2
|
3× 4
|
|||||
|
Cylinder speed（r/min）
|
15
|
15
|
12
|
12
|
|||||
|
Agitating speed（r/min）
|
500
|
500
|
500
|
500
|
|||||
|
Overall size （L×W×H）（mm）
|
1730×650×1700
|
1845×960×1850
|
2500×1350×2450
|
2800×1350×2700
|
|||||
|
Weight （kg）
|
320
|
480
|
620
|
1100
|
Product display
Related products

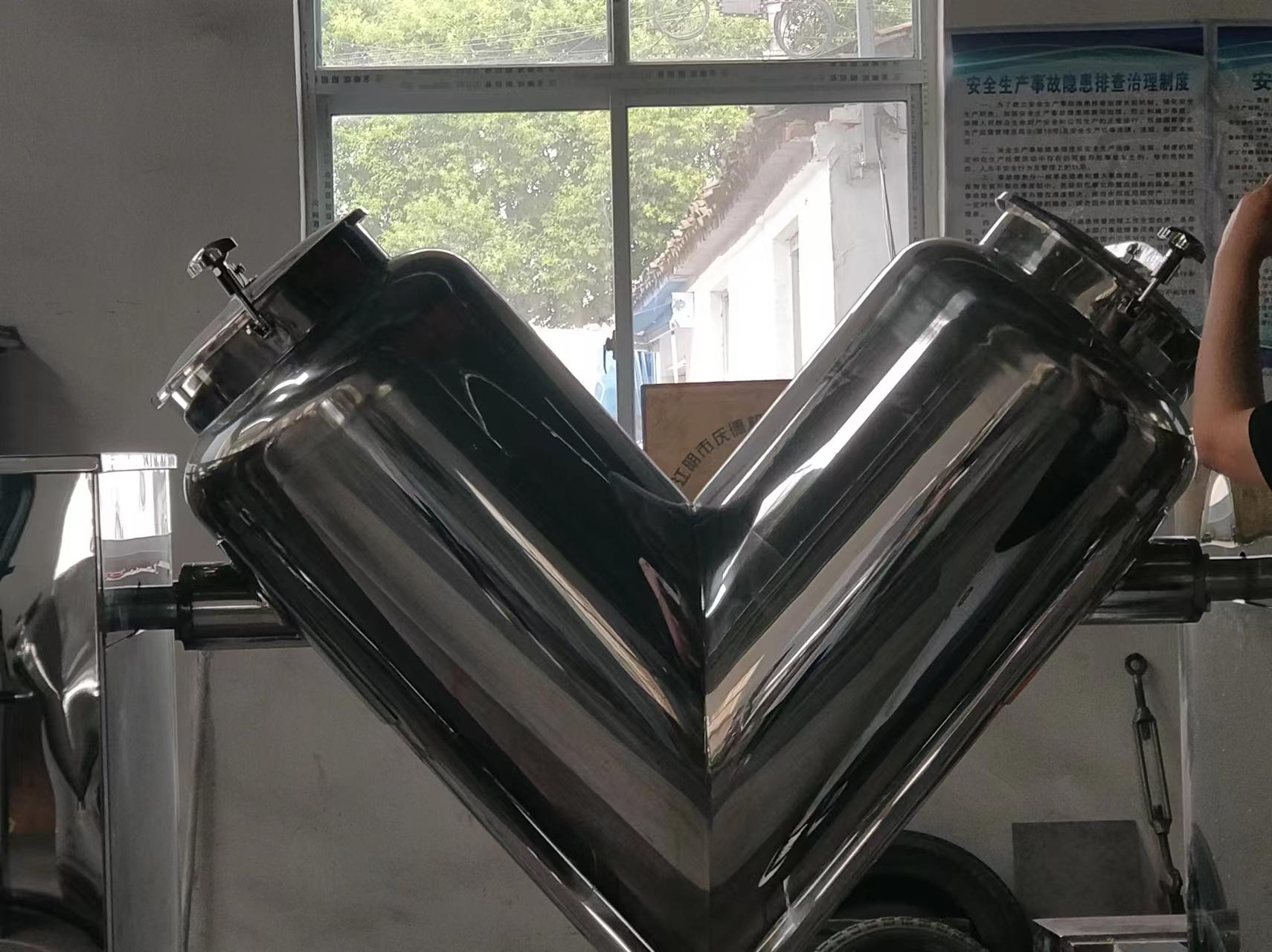

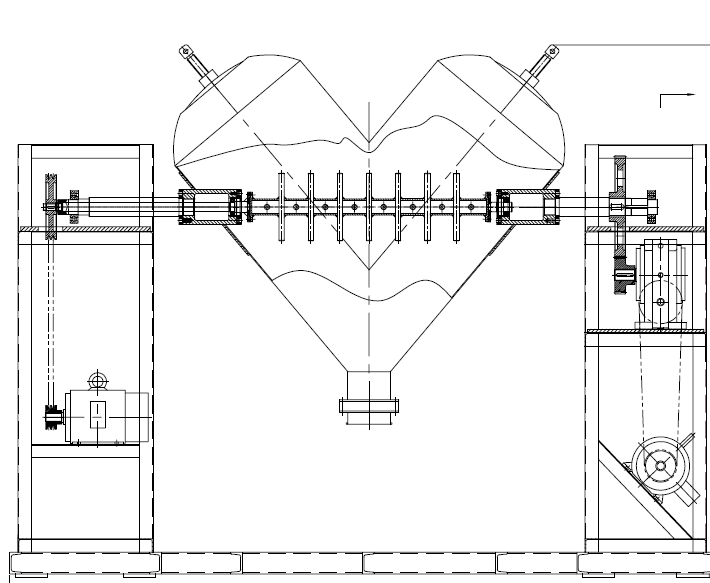

V SHAPE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.

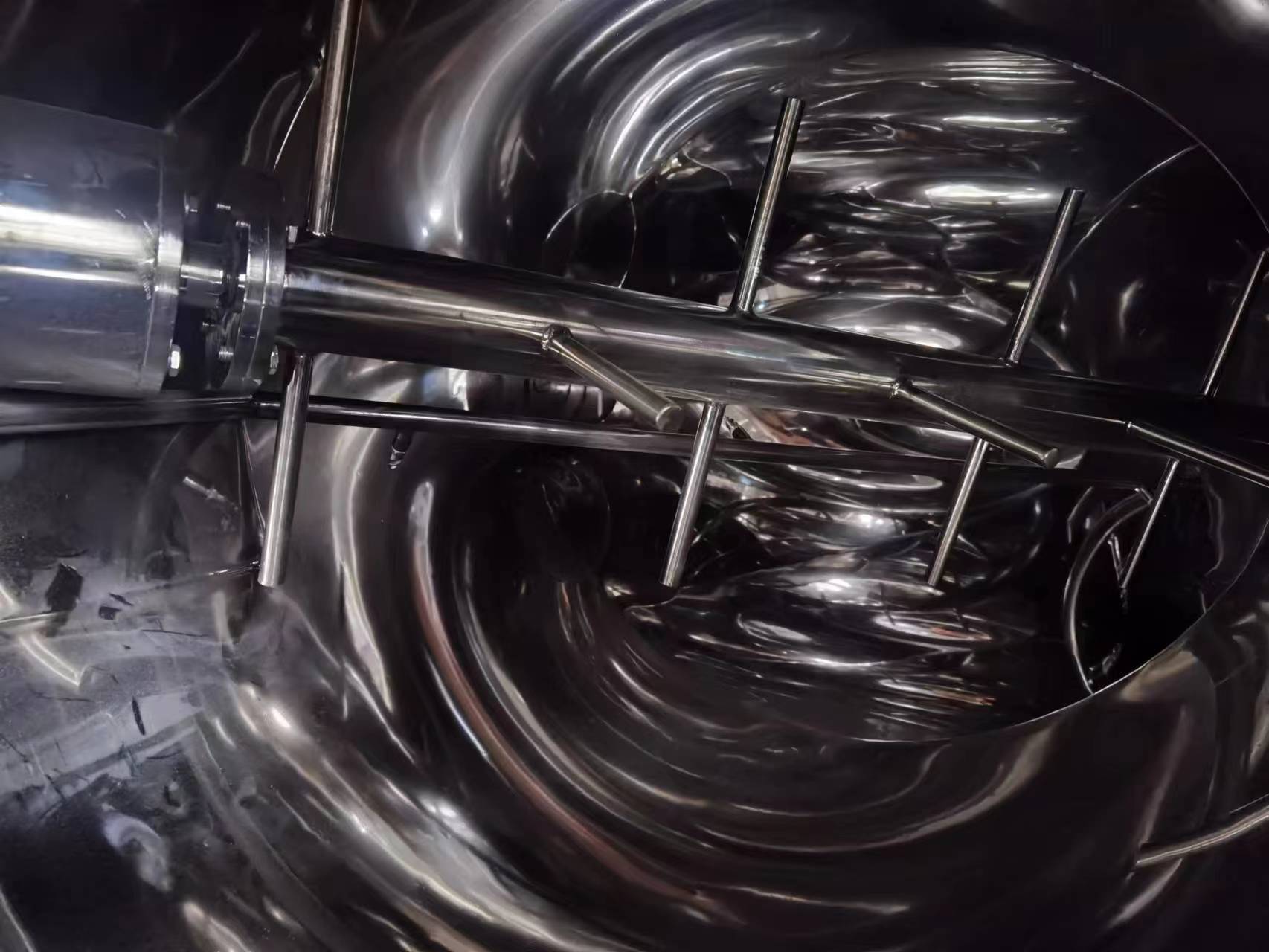

2.V-shaped mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
3D SWING MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.Three-dimensional swing mixing, the best mixing effect and the highest uniformity.
CH TROUGH SHAPE MIXER
1.Horizontal trough mixer, suitable for mixing powdery or pasty materials.
2.By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly.

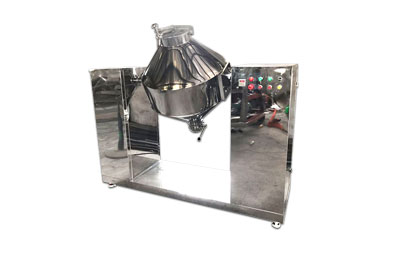

DOUBLE CONE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.Double cone mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
WLDH HORIZONTAL RIBBON MIXER
1.Suitable for high-volume mixing of materials in the pharmaceutical, food, chemical industries.
2.The spiral ribbon is made of two layers. The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good circulation of material.
