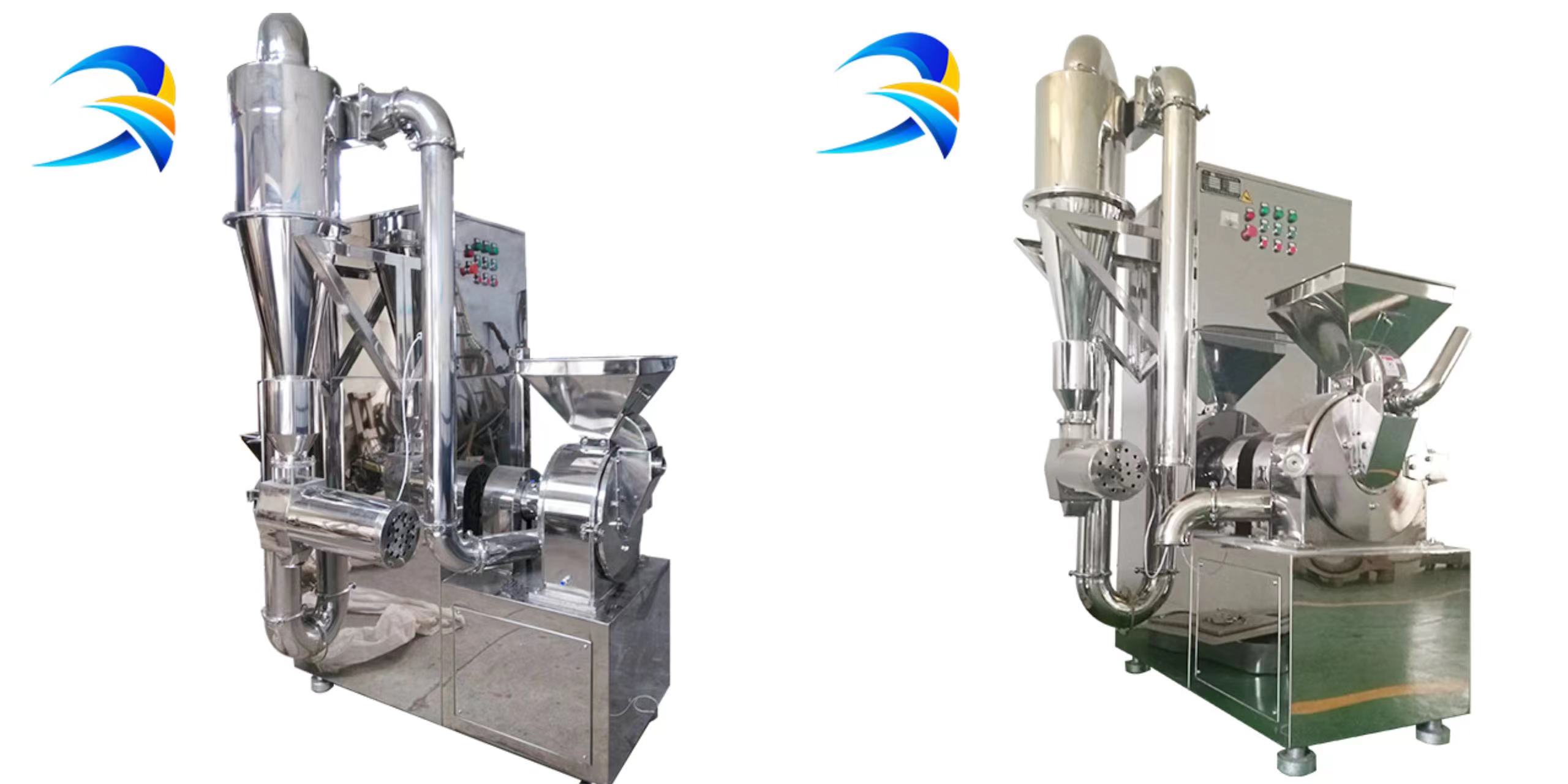

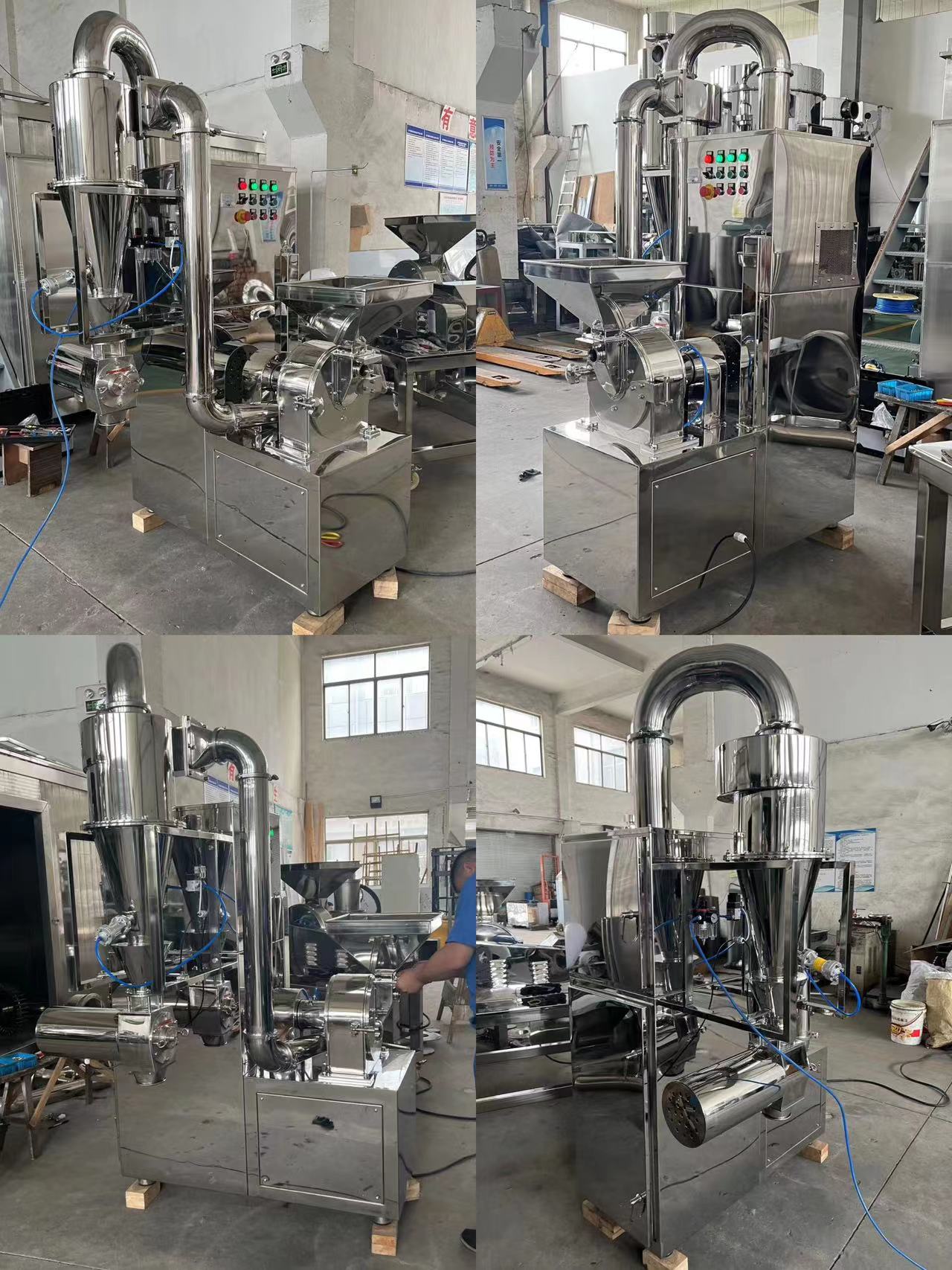

ZFJ Herbal Medicine Pulverizer Equipment

Main applications:
This grinding machine is mainly used for crushing and processing medium and low hardness materials such as pharmaceutical, chemical and food (e.g. Ginger, pepper, pepper, oilwheat, soybean, sugar, star anise, cinnamon). Its fineness is adjusted between 60 and 250 mesh. It has the advantages of high output, fine particle size, low noise, simple maintenance, convenient installation and so on. This pulverizer machine is especially suitable for oil, viscous, heat sensitive, fiber and other low hardness materials crushing processing.
Working principle:

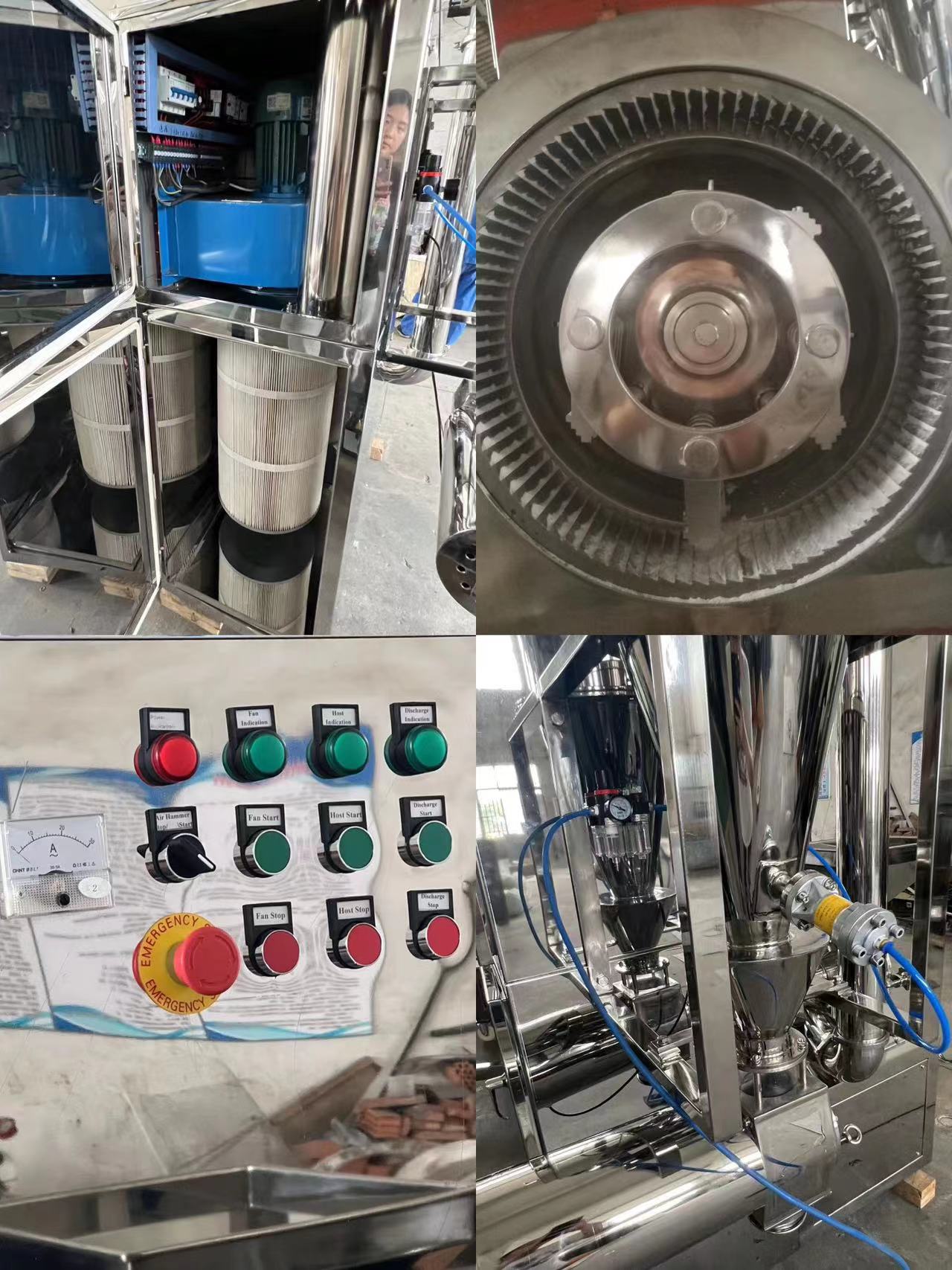

The milling machine through the movable tooth plate and fixed tooth plate relative movement; So that the material through the tooth plate impact, friction and material impact on each other to obtain crushing. The pulverized material is transported to the cyclone separator by the method of negative pressure air transport, and the dust is filtered and recovered by the cloth bag from the vacuum box. The machine is designed according to "GMP" standard. All made of stainless steel material, no dust in the production process. The machine has continuous discharge effect, effectively use the assembly line operation, and can improve the utilization rate of materials, reduce the cost of enterprises. At present, it has reached the prescribed level. The machine is a water-cooled cyclone dust removal shredder, which can produce cooling effect in the high-speed transportation of the crushing knife in the equipment transportation time chamber.
