Dance floor led screen
3 year ago
What is the dance floor led display screen:
With the further expansion of the LED display large screen application market, the demand for dance floor led display and LED human body induction interactive floor tile screen is also expanding.
Megagem LED dance floor led display is an LED display specially designed for ground display. It has been specially designed in terms of load-bearing, protection performance and heat dissipation performance, so that it can adapt to high-intensity stepping and operate normally for a long time.Application of dance floor led display:
In addition to stage performances, Megagem LED interactive dance floor led display are used on dance floors and entertainment venues such as bars and nightclubs.Stairs also have many applications, which can well set off the entertainment atmosphere of these places.

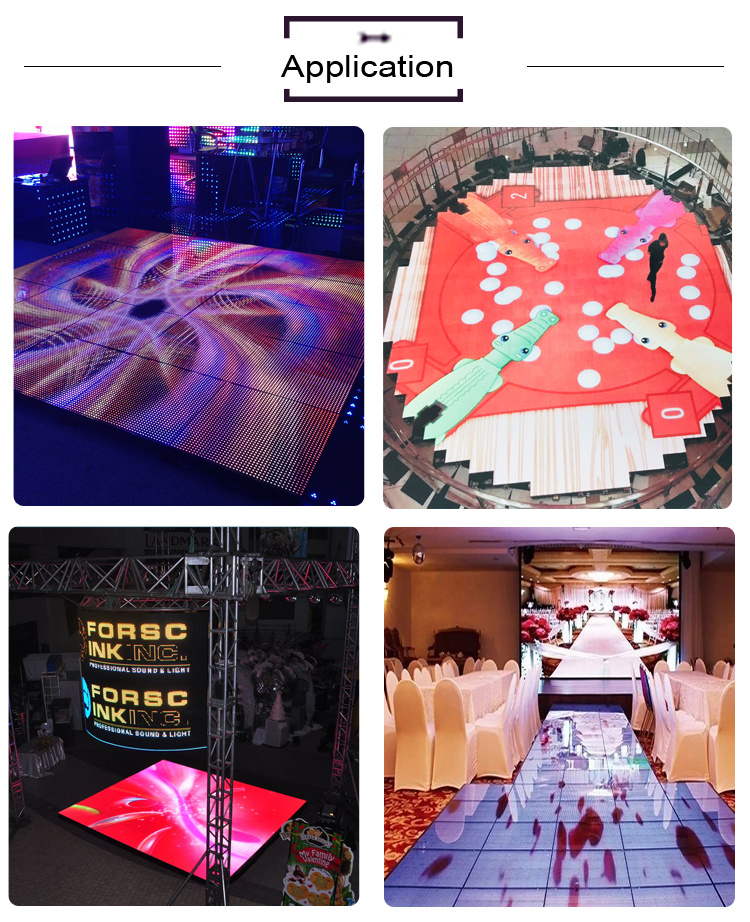

APPLICATION CASES
Features of dance floor led display:
1. Fast and flexible installation: it can be installed directly without tools or with guide rails.2. High load-bearing performance: aluminum alloy material structure, the load-bearing capacity per square meter is up to 2 tons.
3. Excellent maintenance performance: it can be directly exchanged without removing the adjacent box.
4. High Contrast Design: Specially designed mask, excellent playback effect.
5. Outstanding low-brightness and high-gray effect, showing uniform grayscale and good consistency.
No need worry about the dance floor led display bearing capacity. megagem's design, each small panel can bear about 2000kg.
Spec
| Pixel Pitch | 5.2mm |
| LED Package | SMD1921 |
| Module Size | 250*250mm |
| Module Resolution | 48*48dot |
| Cabinet Size | 500*1000mm |
| Cabinet Resolution | 96*192dot |
| Cabinet Materials | Steel |
| Cabinet Wegiht | 23KG/PC |
| Brightness | >2000nits |
| Refresh Rate | >2000hz |
| Max Power Consumption | 720W/sqm |
| Ave. Power Consumptio | 350W/sqm |
| Operating Humidity | 10% - 95% |
| Working Voltage | 110-240v |
| Life Span | >100,000 Hours |
| Input Source(with video processor) | HDMI, DVI, AVI, SDI,VGA |
Panel image
Interactive function? Yes, as the picture, each module have 8pcs interactive function IC.
Instalatiaon way
Installation way is easy? Yes, dance floor led display ued for some event, that need simply ,easy installation way.
System Diagram
1. 3 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
