Solar inverter charger connecting
3 year ago

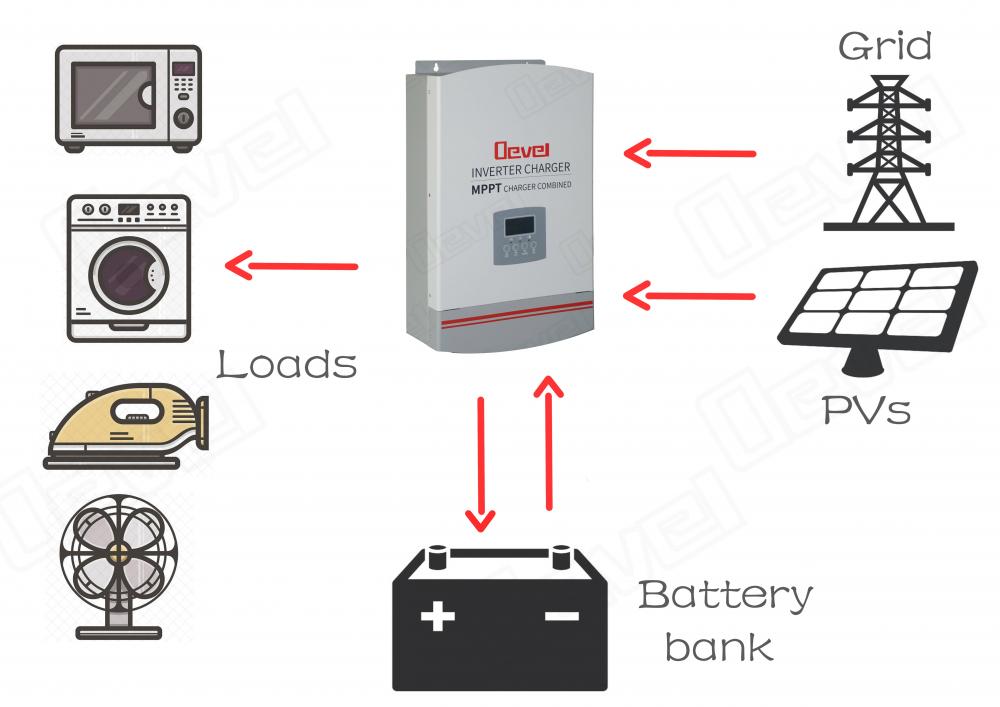

HPE series high-frequency charging inverter all-in-one machine, which is an intelligent combination of inverter, backup UPS, PV charger and AC charger. This professional MPPT inverter charger, with high anti-interference pure sine wave output, can provide reliable electricity consistent with or even better than grid.
HPE series can switch in inverter and grid mode automatically. Equipped with an intelligent control screen, users can set the battery low voltage, charging current, or working mode according to the use manual.
Even without a battery, the HPE can still power the load through photovoltaic input. Built-in high-power MPPT photovoltaic controller to provide charging guarantee for the battery bank with maximum efficiency.
Features
·High power factor, high inverter efficiency.
·Pure sine wave output for all home or office loads.
·Built-in MPPT PV controller, Maximum charging current up to 110A, Maximum PV input power is 6000W.
·Intelligent LCD screen, you can set the working mode, charging voltage by yourself.
·You can choose which mode the first according to your demand. grid mode, PV mode or inverter mode optional.
·You can network for monitoring through the RS485 and RS232 interfaces.
·The LCD remote control panel and WIFI are optional.
| Model | HPE3000-224H | HPE5500-248H |
| Battery System Voltage | 24VDC | 48VDC |
| INPUT | ||
| Voltage | 230 VAC±5% | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
| 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| RATED POWER | 3500VA/3500W | 5500VA/5500W |
| Surge Power | 7000VA/7000W | 11000VA/11000W |
| Efficiency (Peak) PV to INV. | 97% | |
| Efficiency (Peak) Battery to INV. | 94% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| Maximum AC Charge Current | 80 A | 80 A |
| MPPT SOLAR CHARGER | ||
| Maximum PV Array Power | 5000 W | 6000W |
| MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 300*132*495 | |
| Net Weight (kgs) | / | / |
| Communication interface | RS485/RS232 | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0°C - 55°C | |
| Storage Temperature | -15°C - 60°C | |
