Product details

2.5 Layer Polyester Forming Fabric For Paper Making


About 2.5 Layer Forming Fabric

8-shed, 16-shed double and a half layer Polyester forming fabric is suitable for making quality printing paper, tissue paper and surface pulp, inner pulp and base pulp of the board paper etc.


Polyester 2.5 layer forming fabrics are also known as support shute double layer forming fabrics or double layer extra designs. It's a standard double layer design with an extra shute yarn added on the forming side between the 2 regular cross direction yarns. This yarn increase the pulp fibre support and meanwhile create a more open structure as the amount of wear side yarns is reduced, compared with the forming side.


2.5 layer forming fabric's weaving effect greatly increases the fiber support index due to the addition of a fine weave at the top. The ratio of the top and bottom wefts is 2:1. It suitable for paperboard,newsprint,writing paper,tissue paper,printing paper,kraft paper.


Formingfabric benefits

High Open Areas for Fast Dewatering Performance,

Cleaner Headbox Operation,

reduce wear on dewatering element and Improved Sheet Formation,

Better Mechanical Retention Leading to Higher FSI,

High Wear Volumes Ensuring Excellent Fabric Life,

Outstanding Fabric Stability, Good Guiding Stability on Demanding Applications.


2.5 Layer Forming Fabric Technical Parameters (The forming fabric can be customized)

FABRIC CODE
WARP DENSITY
WEFT DENSITY
WARP DIAMETER
WEFT DIAMETER
AIR PERMEABILITY
FSI
DI
HT6408
71.5~72.5
67.5~68.5
0.15
0.18 0.12, 0.22 0.22
275~500CFM
119~155
25~37
HT5608
62.5~63.5
51.0~52.0
0.17
0.18 0.13, 0.25 0.25
380CFM
121
26.9
HT5616-1
62.5~63.5
60.5~61.5
0.17
0.20 0.13, 0.30 0.30
285CFM
139
23.9
HT5616-2
62.5~63.5
60.5~61.5
0.17
0.20 0.13, 0.30 0.30
350CFM
126
26
HT4216
47.0~48.0
47.0~48.0
0.22
0.22 0.13, 0.35 0.35
380CFM
107
24.8

Related Products: Press Felt, Dryer Screen
Apart from the Paper Machine Clothing (Forming Fabric, Press Felt , Dryer Screen), Huatao provides a host of specialty and performance Paper Machine Spare Parts : Headbox, Dewatering Element, Paper Machine Rolls, Cylinder Mould, Doctor Blade and its holder, etc. More details please kindly view our webiste.

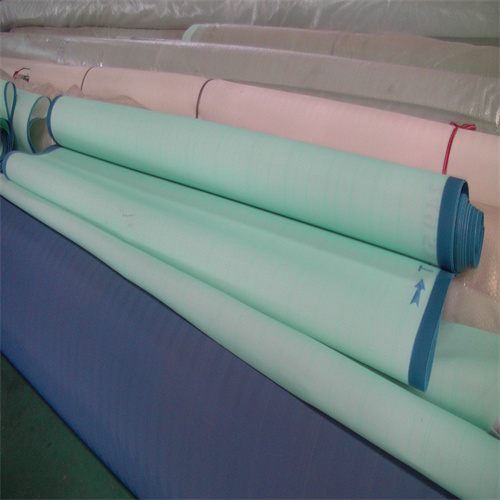

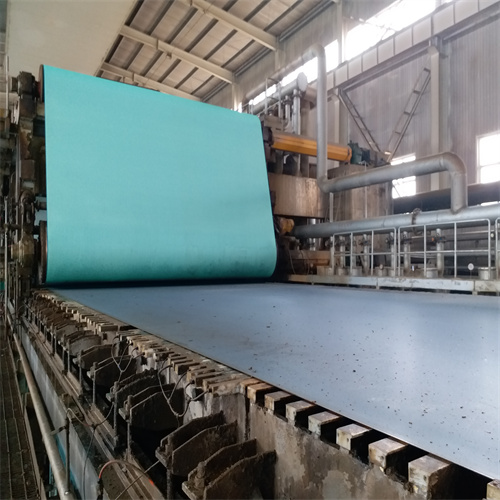

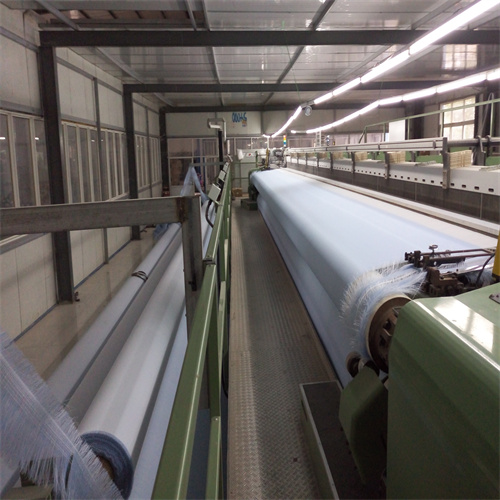

Product Photos

Forming Fabric 24  Forming Fabric 12Forming Fabric 16  Forming Fabric 7

FAQ
Q:  How to confirm the type?
A:  There are many methods for us to confirm the type:
      1). tell us the specifications data.
      2). our engineers will give you the best suggestion and design the most suitable forming fabric according to your paper machine details.
      3). send us the photos with size
      4). send us a small piece sample.

Q: Waht is the payment terms?
A:  We prefer T/T, but for some countries, we will also accept L/C.

Q: When will delivery the goods?
A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.

Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.

Q: Is the package strong enough for the long transportation?
A: Of course it is.

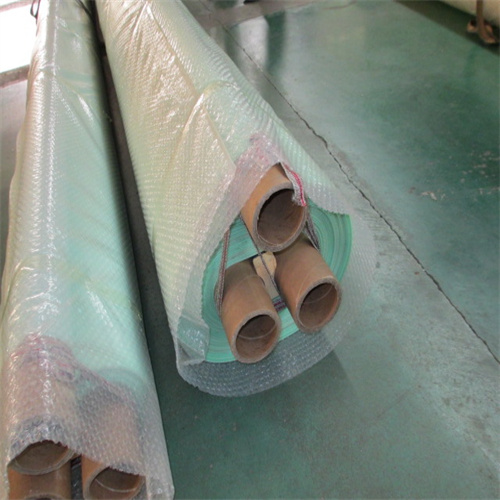

    By sea, we will pack every piece into wooden/ polywood box.
    By air, we will pack it by strong water-proof bag.
