Product details

Polyester Flat Yarn Woven Dryer Screen For Paper Machine


Huatao has launched new woven dryer screen, which is a unique two-tier flat warp weave screen with controlled permeability, recommended for Unirun positions and high speed machines. The higher surface contact area helps to increase the heat transfer with better sheet support thus lowering the energy consumption and has a potential for, higher life.

The woven dryer screen/fabric/canvas presses the paper web against the surface of steam-heated drying cylinders. Therefore the temperature of the paper web increases and water is evaporated into and through a porous dryer screen. Moreover dryer screen/fabric/canvas assist to support the paper sheet to shift from one cylinder to another cylinder. Dryer screen/fabric/canvas controlled paper web shrinkage.


The selection of dryer screen/fabric/canvas is depending on the various paper machine parameters such as paper grades, dryer cylinders configuration, dryer cylinder temperatures, air balance in the hood etc. Dryer screen/fabric/canvas design and materials are also very important. Dryer screen/fabric/canvas can be classified depending on weaving struction can be devided into woven dryer screen and spiral dryer screen



For a particular paper machine, the permeability, design and materials of the dryer screen/fabric/canvas should be adapted to make sure optimum drying from a drying section. The air permeability of the dryer screen/fabric/canvas has a great impact on the rate of evaporation of water. If the permeability is decreased, then it is reduction in drying capacity of the dryer screen.



The dryer screen, whose air permeability range between 700-1000cfm is used on paper machine for producing higher gsm Kraft and board varieties.

On the other hand 200-400cfm dryer screen widely used in medium and high speed paper machine and below these rage used in lower speed paper machine.

Proper chosen of dryer clothing improve paper machine runnability, increased drying rate, improved paper quality and savings energy.

Moreover the dryer screen/fabric/canvas should have the following parameters or characteristics: Aerodynamic Properties, Heat Transfer, Fabric Tension, Sheet Support, caliper, heat resistant, wet-resistant, should be less elongation at heat, durability, silent drive, easy to operation etc.


Quality control for products

1. Fabric surface checking
2. Flatness testing
3. Wire tensile strength testing
4. Heat-setting by computer controlling


Related Products: Forming Fabric, Press Felt

Apart from the Paper Machine Clothing (Forming Fabric, Press Felt, Dryer Screen), Huatao provides a host of specialty and performance paper machine spare parts: headbox, dewatering element, paper machine rolls, cylinder mould, doctor blade and its holder, etc. More details please kindly view our webiste.

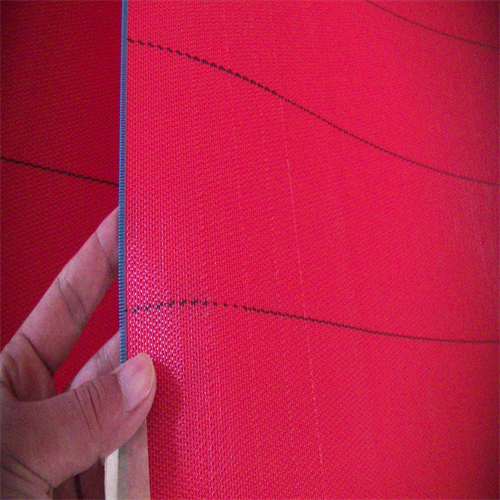

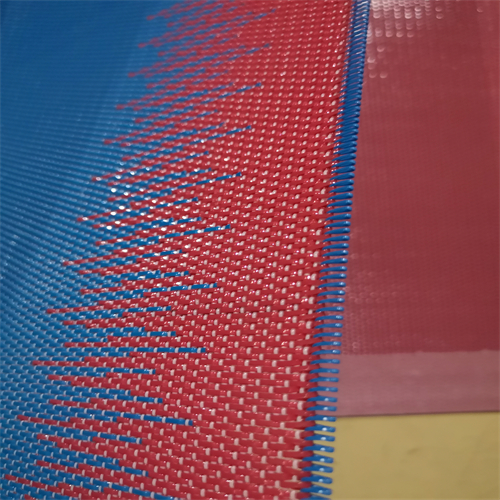

Product Photos of Flat yarn woven dryer screen

Dryer Screen 30Dryer Screen 37
