DIN 41612 / IEC 60603-2 Connector Product introduction
The variety of different types and termination technologies (press-fit, dip soldering, manual soldering, wrapping, crimping, THR) for DIN connectors cover a wide range of applications.
Eurocard Connectors per DIN 41612 and IEC 60603-2 Features
Various termination technologies possible
Leading and lagging contacts
Pre-centering
Variety of termination lengths
A range of accessories, such as shrouds, board locks, coding keys
Quick lock switch fastener for daisy chaining
Board locks and codes provide developers and users with additional safety and a wide range of possible applications.
DIN 41612 (EN 60603-2) PCB & Backplane Connectors Applications
Backplane daughter card, 19-inch technology (VME)
Board-to-board, parallel, or stacked
High-power
Connector Category: Din 41612 Eurocard Connector丨Solder Din 41612 Connector丨IDC Din Connectors丨High Power Din Connector丨

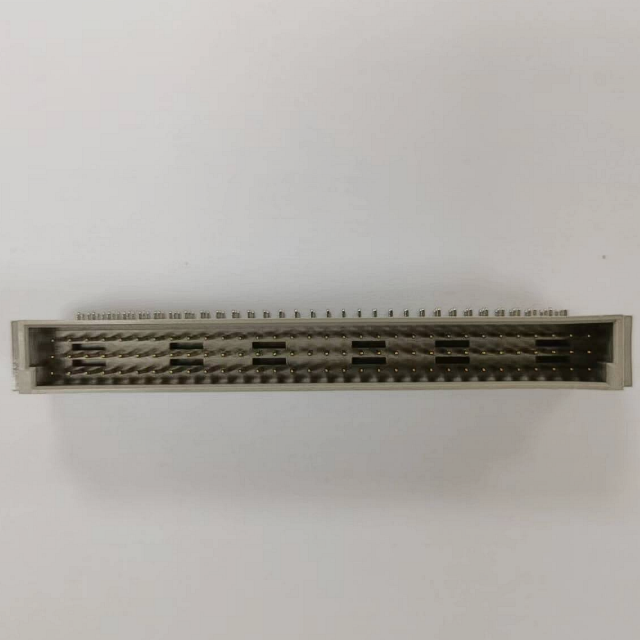

96 Positions Right Angle Plug Type C Eurocard DIN 41612 Connectors SPECIFICATION
Current Rating: 2.0AmpInsulation Resistance: 1000MΩ min.at DC 500V
Contact Resistance: 20mΩ max
Withstand Voltage: AC 1000V For 1 Minute
Operating Temperature: -55°C to +105°C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PBT+30%GF UL 94V-0
Insertion Force: 96 pin max.90N
Withdrawal Force: 0.15N min.per individual contact
Positions
32, 48, 64 and 96 positions available.
Terminations
Right tail length3.0mm, 4.4mm and 13.0mm available.
Rows loaded with contacts
full pins or any empty pins.
Contact plating
gold or gold and tin plate available.
