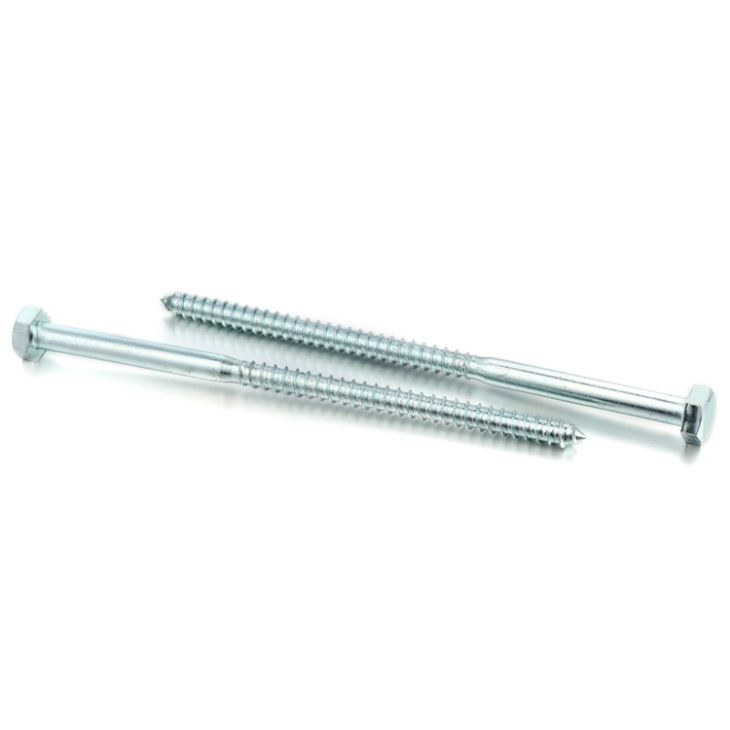

Product Description
This is a nail specifically designed for wood, which will be embedded very firmly in the wood. If the wood is not decayed, it is impossible to pull it out, and even if it is forcibly pulled out, it will bring out nearby wood. One more thing to note is that the wood screws must be screwed in with a screwdriver. Do not knock in with a hammer, it will damage the surrounding wood.
The advantage of wood screws is that the consolidation ability is stronger than nailing, and it can be removed and replaced, which does not hurt the wood surface and is more convenient to use.
Size
DIN Standard: M6, M8, M10, M12, M16, M18, M20
ANSI Standard: 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1"
Surface Treatment
2)Hot-Dip Galvanized(HDG)
Material: carbon steel
Applied in: natural stone, metal structures, metal profiles, bottom plate, support plate, bracket,railings, window, curtain wall, machine, beam,beam support etc.
Full threaded, half threaded, or custom made.
|
DIN571 Standard Specification
|
|
|
|
|||
|
M6
|
M8
|
M10
|
M12
|
|||
|
M6 x 30
|
M8 x 40
|
M10 x 40
|
M12 x 80
|
|||
|
M6 x 40
|
M8 x 50
|
M10 x 50
|
M12 x 100
|
|||
|
M6 x 50
|
M8 x 60
|
M10 x 60
|
M12 x 120
|
|||
|
M6 x 60
|
M8 x 70
|
M10 x 70
|
M12 x 140
|
|||
|
M6 x 70
|
M8 x 80
|
M10 x 80
|
M12 x 150
|
|||
|
M6 x 80
|
M8 x 90
|
M10 x 90
|
M12 x 160
|
|||
|
M6 x 90
|
M8 x 100
|
M10 x 100
|
M12 x 180
|
|||
|
M6 x 100
|
M8 x 110
|
M10 x 120
|
M12 x 200
|
|||
|
M6 x 110
|
M8 x 120
|
M10 x 130
|
M12 x 220
|
|||
|
M6 x 120
|
M8 x 130
|
M10 x 140
|
M12 x 240
|
|||
|
M6 x 130
|
M8 x 140
|
M10 x 150
|
M12 x 260
|
|||
|
M6 x 140
|
M8 x 150
|
M10 x 160
|
M12 x 280
|
|||
|
M6 x 150
|
M8 x 160
|
M10 x 180
|
M12 x 300
|
|||
|
|
M8 x 170
|
M10 x 200
|
M12 x 350
|
|||
|
|
M8 x 180
|
M10 x 220
|
M12 x 400
|
|||
|
|
M8 x 190
|
M10 x 240
|
|
|||
|
|
M8 x 200
|
M10 x 260
|
|
|||
|
|
|
M10 x 280
|
|
|||
|
ANSI Standard Specification
|
|
|
|
|||
|
1/4
|
5/16
|
3/8
|
1/2
|
|||
|
1/4 x 1
|
5/16 x 1
|
3/8 x 1
|
1/2 x 2
|
|||
|
1/4 x 1-1/4
|
5/16 x 1-1/4
|
3/8 x 1-1/2
|
1/2 x 2-1/2
|
|||
|
1/4 x 1-1/2
|
5/16 x 1-1/2
|
3/8 x 2
|
1/2 x 3
|
|||
|
1/4 x 2
|
5/16 x 2
|
3/8 x 2-1/2
|
1/2 x 4
|
|||
|
1/4 x 2-1/2
|
5/16 x 2-1/2
|
3/8 x 3
|
1/2 x 5
|
|||
|
1/4 x 3
|
5/16 x 3
|
3/8 x 4
|
1/2 x 6
|
|||
|
1/4 x 4
|
5/16 x 4
|
3/8 x 5
|
1/2 x 7
|
|||
|
1/4 x 5
|
5/16 x 5
|
3/8 x 6
|
1/2 x 8
|
|||
|
1/4 x 6
|
5/16 x 6
|
3/8 x 8
|
1/2 x 10
|
|||
|
|
5/16 x 8
|
3/8 x 10
|
|
|||
|
|
5/16 x 10
|
|
|
|||
|
Installation Parameters
|
|
|
|
|
||||
|
Thread
|
Nut thickness
|
Edge of a nut
|
Drill hole
|
Wrench Size
|
||||
|
M6
|
4
|
10
|
6mm
|
10
|
||||
|
M8
|
5.0-5.2
|
13
|
8mm
|
13
|
||||
|
M10
|
6.0-6.2
|
17
|
10mm
|
17
|
||||
|
M12
|
8.0-8.2
|
19
|
12mm
|
19
|
||||
A: Our MOQ is 10000 pieces.
A: Yes.
A: 100% inspection during production. Our products are certified to ISO9001, international quality standards.
Q: What material of the product can you supply?
A: Carbon Steel, can change according to your requirement.
Q: What's the delivery time?
A: For stock products, we can ship it within 7 days after receiving your payment. For custom order, within 24 tons, production time is 20-35 days after confirmed every details.
