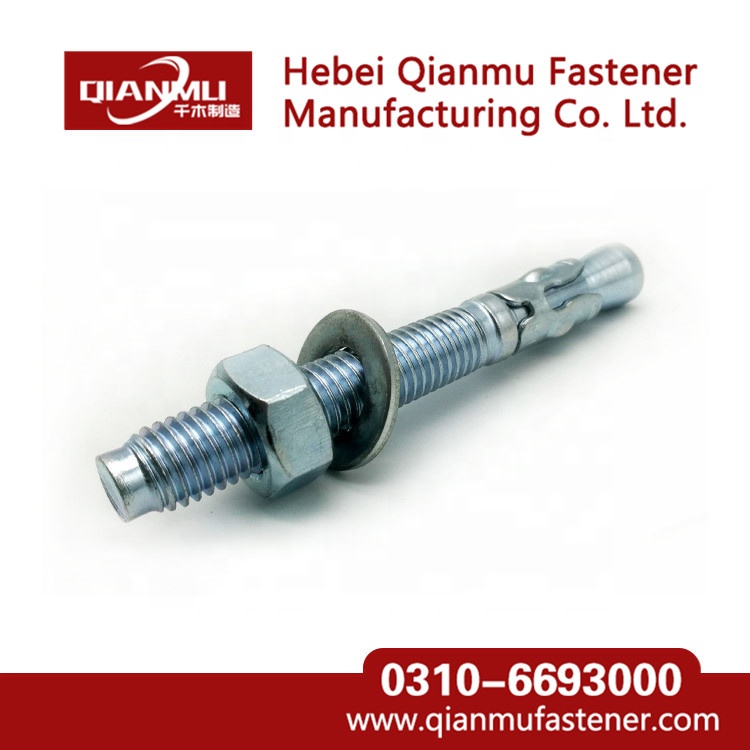

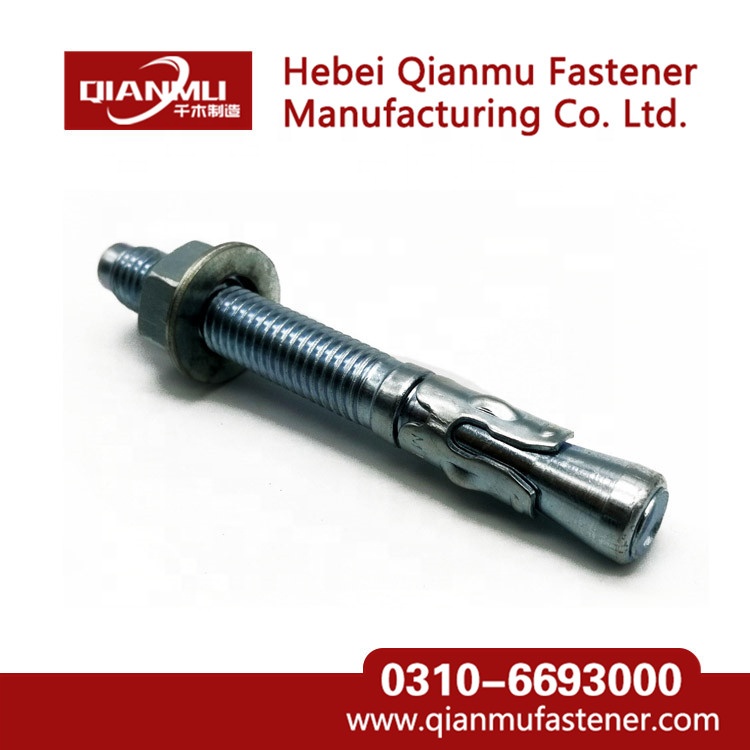

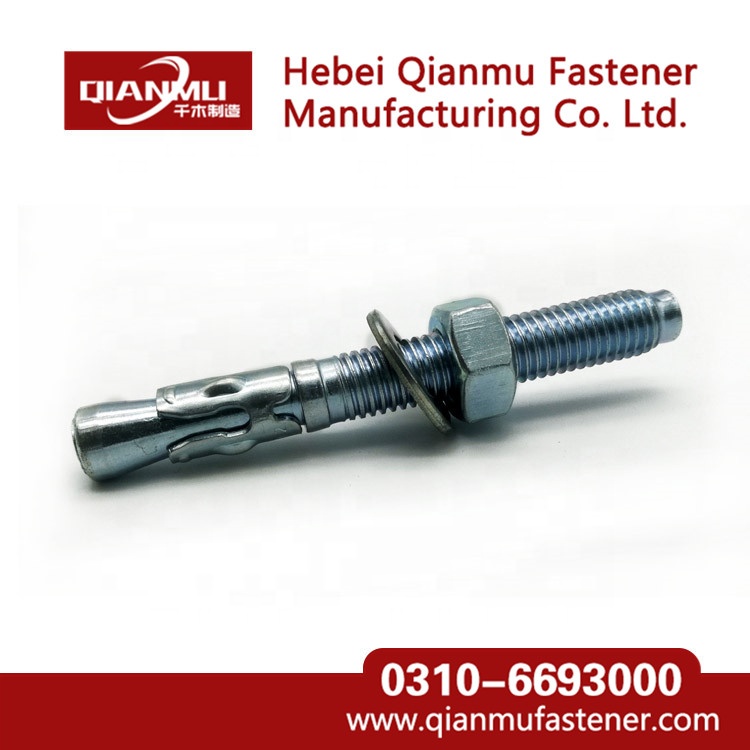

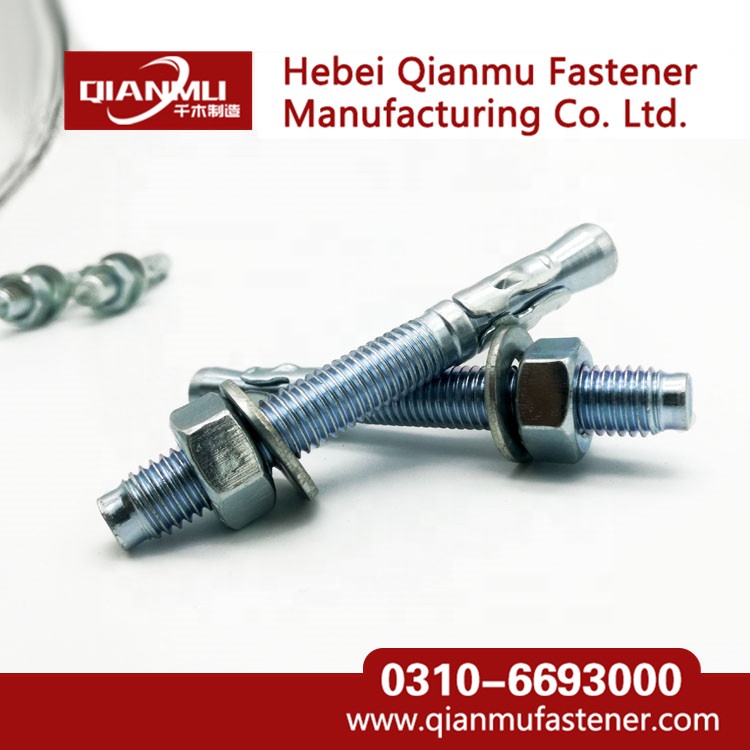

Zinc Plated Wedge Anchor Fasteners carbon steel DIN ANSI standard1
3 year ago
Product details
Company Profile
Hebei Qianmu Fastener Manufacturing Co., Ltd. was established in 2017 with a registered capital of 3 million yuan. Our factory is located in Handan, Hebei Province, the hometown of fasteners in China. It is a comprehensive manufacturing enterprise integrating fastener production, R & D and sales.
Since the beginning of this century, the company has been engaged in the fastener manufacturing industry and has won wide favor and recognition. In 2017, Hebei Qianmu Fastener Manufacturing Co., Ltd. was registered. It has many years of production and manufacturing experience, has its own galvanizing factory and bolt factory, and uses ERP to strictly control the production process in multiple links to ensure that high-quality products are produced. The company covers a total area of 25000 square meters and the annual output can reach more than 10000 tons.
At present, the main products are wedge anchor, drop in anchor, hex bolt, wood screen, confirmation screen, chemical anchor bolt, 3pc / 4pc fix bolt, l anchor bolt, etc. In the development of several years, our company has a production and sales team full of passion and high quality. We will provide you with the most satisfactory service with high enthusiasm and many years of production and sales experience.
The company always adheres to the 12 character concept of "innovation, quality, service, conservation, environmental protection and gratitude", and absorbs new ideas, strictly controls products, provides all-round service tracking, and insists on creating high-quality products. After years of thorough training, our company has reached a high level of modern enterprise.
The company's current products sell well; North America, southern Europe, the Middle East, Southeast Asia, South Africa, South America and other regions
Sales Hotline: 86-0310-6693000
Address of Yongnian branch: No. Liu Han Zhen Liu Han Cun Xi, Yongnian District, Handan City, Hebei Province
Address of Cheng'an branch: No. 111, Jingwu street, Cheng'an County, Handan City, Hebei Province
Product Description
Product Features
This product has longer threads and is easier to install. It is often used in heavy-duty installations.
To obtain a reliable and huge tightening force, it is necessary to ensure that the clamp ring fixed on the gecko is fully
expanded. And the expansion clamp must not fall off the rod or twist or deform in the hole.
The calibrated tensile force values are all tested under the conditions of cement strength of 260 ~ 300 kgs/cm2, and the maximum value of the safety load must not exceed 25% of the calibrated value.
Application Area
Suitable for concrete and dense natural stone, metal structures, metal profiles, floor plates, support plates, brackets, railings,windows, curtain walls, machines, beams, beams, brackets, etc.
Size
DIN Standard: M6 M8 M10 M12 M14 M16 M18 M20 M24
ANSI Standard: 1/2 1/4 3/4 3/8 5/8 5/16 1”
Surface treatment:
Material: Carbon steel
This product has longer threads and is easier to install. It is often used in heavy-duty installations.
To obtain a reliable and huge tightening force, it is necessary to ensure that the clamp ring fixed on the gecko is fully
expanded. And the expansion clamp must not fall off the rod or twist or deform in the hole.
The calibrated tensile force values are all tested under the conditions of cement strength of 260 ~ 300 kgs/cm2, and the maximum value of the safety load must not exceed 25% of the calibrated value.
Application Area
Suitable for concrete and dense natural stone, metal structures, metal profiles, floor plates, support plates, brackets, railings,windows, curtain walls, machines, beams, beams, brackets, etc.
Size
DIN Standard: M6 M8 M10 M12 M14 M16 M18 M20 M24
ANSI Standard: 1/2 1/4 3/4 3/8 5/8 5/16 1”
Surface treatment:
1)Electric Galvanized: WZP(White Zinc Plated) YZP（Yellow Zinc Plated)
2)Hot-Dip Galvanized(HDG)
3)Mechanical Galvanized
Material: Carbon steel
Q235, Q195, 1008, 35#, 45#, Q345, 35CrMo, 40CrMo
Accessories introduction
Nut: DIN934
Flat Washer: DIN125A (Plus Size:DIN9021)
ISO9001 2022 Certificate
Specification
|
DIN571 Standard Specification
|
|
|
|
|
|
|
||||||
|
Thread
|
Drill Hole
(mm)
|
Length Range
(mm)
|
Design Drawing
Force(KN)
|
Ultimate Drawing
Force(KN)
|
Design Shear
Force(KN)
|
Ultimate Shear
Force(KN)
|
||||||
|
|
(mm)
|
(mm)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
||||||
|
M6
|
6
|
40-120
|
5
|
9.7
|
--
|
--
|
||||||
|
M8
|
8
|
50-220
|
8
|
16
|
6
|
9
|
||||||
|
M10
|
10
|
60-250
|
12
|
24
|
8
|
14
|
||||||
|
M12
|
12
|
70-400
|
18
|
33
|
18
|
29
|
||||||
|
M14
|
14
|
80-200
|
20
|
44
|
22
|
37
|
||||||
|
M16
|
16
|
80-300
|
22
|
51.8
|
26
|
45
|
||||||
|
M18
|
18
|
100-300
|
28
|
58
|
28
|
57
|
||||||
|
M20
|
20
|
100-400
|
35
|
70
|
31
|
62
|
||||||
|
M24
|
24
|
120-400
|
50
|
113
|
45
|
88
|
||||||
|
ANSI Standard Specification
|
|
|
|
|
|
|
||||||
|
Thread
|
Drill Hole
(mm)
|
Length Range
(mm)
|
Design Drawing
Force(KN)
|
Ultimate Drawing
Force(KN)
|
Design Shear
Force(KN)
|
Ultimate Shear
Force(KN)
|
||||||
|
|
(mm)
|
(mm)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
Force(KN)
|
||||||
|
1/4
|
1/4(6.35mm)
|
≈45-120
|
5
|
9.7
|
--
|
--
|
||||||
|
5/16
|
5/16(8mm)
|
≈50-145
|
8
|
16
|
6
|
9
|
||||||
|
3/8
|
3/8(10mm)
|
≈60-200
|
12
|
24
|
8
|
14
|
||||||
|
1/2
|
1/2(12.7mm)
|
≈70-305
|
18
|
33
|
18
|
29
|
||||||
|
5/8
|
5/8(16mm)
|
≈80-305
|
22
|
51.8
|
26
|
45
|
||||||
|
3/4
|
3/4(19.5mm)
|
≈95-305
|
35
|
70
|
31
|
62
|
||||||
|
1
|
1(25.4mm)
|
≈125-405
|
50
|
113
|
45
|
88
|
||||||
Packing & Delivery
By default, our company uses the ordinary packaging, that is corrugated carton and white box. there are no any other words except the specifications and quantities on the packaging. if you have special need, we can customize the packaging mark for you. and we can provide fumigated pallets.
FAQ
Q: What material of the product can you supply?
A: Carbon Steel
Wedge Anchor, Drop In Anchor, Wood Screw, Chemical Anchor.
Q: What about the warranty?
A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.
To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
Q: Why should I choose you?
(1) Contact us with your detailed inquiry, you will be replied within 24 hours.
(2) You are promised to obtain the best quality, price and service.
(3) We'd like to provide samples for your confirm.
(4) Wide excellent experiences with after-sale service.
(5) Every process will be checked by responsible QC which insures every product's quality.
Hot Tags: carbon steel zinc wedge anchor bolt, China, manufacturers, suppliers, factory, wholesale, bulk, buy discount, in stock, free sample, made in China
Previous: No Information
Next: Carbon Steel Wedge Anchor
A: Carbon Steel
Wedge Anchor, Drop In Anchor, Wood Screw, Chemical Anchor.
Q: What about the warranty?
A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.
To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
Q: Why should I choose you?
(1) Contact us with your detailed inquiry, you will be replied within 24 hours.
(2) You are promised to obtain the best quality, price and service.
(3) We'd like to provide samples for your confirm.
(4) Wide excellent experiences with after-sale service.
(5) Every process will be checked by responsible QC which insures every product's quality.
Hot Tags: carbon steel zinc wedge anchor bolt, China, manufacturers, suppliers, factory, wholesale, bulk, buy discount, in stock, free sample, made in China
Previous: No Information
Next: Carbon Steel Wedge Anchor
