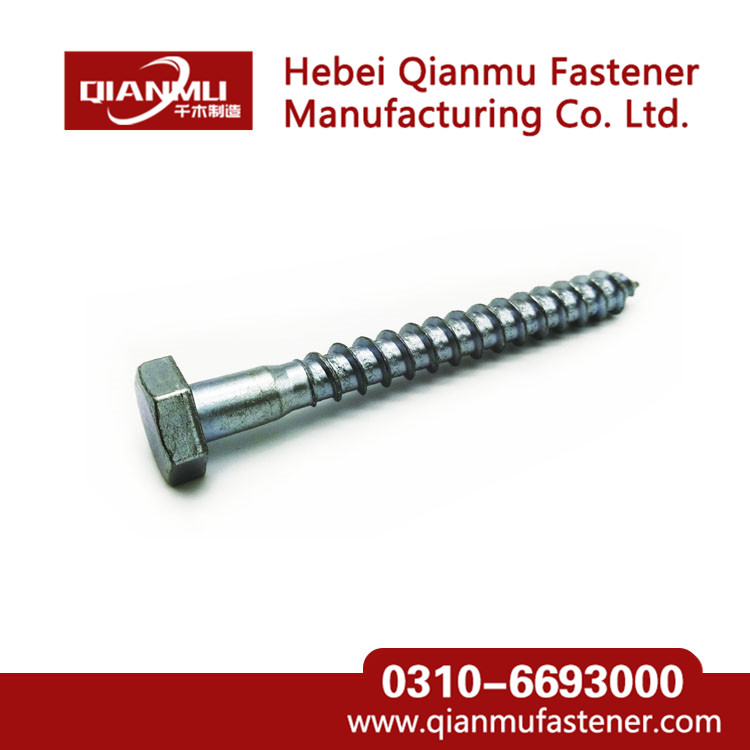

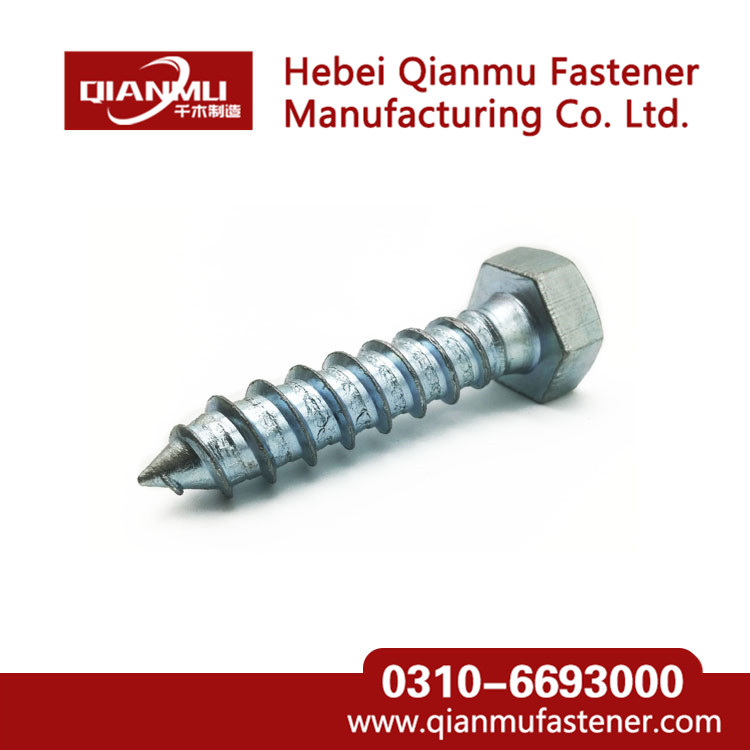

Hex Head Wood Screw Carbon Steel Lag Screws Fastener1
3 year ago
Product details
Product Description
This is a nail specifically designed for wood, which will be embedded very firmly in the wood. If the wood is not decayed, it is impossible to pull it out, and even if it is forcibly pulled out, it will bring out nearby wood. One more thing to note is that
the wood screws must be screwed in with a screwdriver. Do not knock in with a hammer, it will damage the surrounding wood.
The advantage of wood screws is that the consolidation ability is stronger than nailing, and it can be removed and replaced, which does not hurt the wood surface and is more convenient to use.
Size
DIN Standard: M6 M8 M10 M12
ANSI Standard: 1/2 1/4 3/8 5/16
Surface treatment
the wood screws must be screwed in with a screwdriver. Do not knock in with a hammer, it will damage the surrounding wood.
The advantage of wood screws is that the consolidation ability is stronger than nailing, and it can be removed and replaced, which does not hurt the wood surface and is more convenient to use.
Size
DIN Standard: M6 M8 M10 M12
ANSI Standard: 1/2 1/4 3/8 5/16
Surface treatment
1)Electric Galvanized: White Zinc Plated(WZP), Yellow Zinc Plated(YZP)
2)Hot-Dip Galvanized(HDG)
2)Hot-Dip Galvanized(HDG)
Parameter: Electroplate> 5MM / Hot dip> 50MM
Standard: DIN ANSI BS
Material: carbon steel
Applied in: natural stone, metal structures, metal profiles, bottom plate, support plate, bracket,railings, window, curtain wall, machine, beam,beam support etc.
Material: carbon steel
Applied in: natural stone, metal structures, metal profiles, bottom plate, support plate, bracket,railings, window, curtain wall, machine, beam,beam support etc.
Specification
|
DIN571 Standard Specification
|
|
|
|
|||
|
M6
|
M8
|
M10
|
M12
|
|||
|
M6 x 30
|
M8 x 40
|
M10 x 40
|
M12 x 80
|
|||
|
M6 x 40
|
M8 x 50
|
M10 x 50
|
M12 x 100
|
|||
|
M6 x 50
|
M8 x 60
|
M10 x 60
|
M12 x 120
|
|||
|
M6 x 60
|
M8 x 70
|
M10 x 70
|
M12 x 140
|
|||
|
M6 x 70
|
M8 x 80
|
M10 x 80
|
M12 x 150
|
|||
|
M6 x 80
|
M8 x 90
|
M10 x 90
|
M12 x 160
|
|||
|
M6 x 90
|
M8 x 100
|
M10 x 100
|
M12 x 180
|
|||
|
M6 x 100
|
M8 x 110
|
M10 x 120
|
M12 x 200
|
|||
|
M6 x 110
|
M8 x 120
|
M10 x 130
|
M12 x 220
|
|||
|
M6 x 120
|
M8 x 130
|
M10 x 140
|
M12 x 240
|
|||
|
M6 x 130
|
M8 x 140
|
M10 x 150
|
M12 x 260
|
|||
|
M6 x 140
|
M8 x 150
|
M10 x 160
|
M12 x 280
|
|||
|
M6 x 150
|
M8 x 160
|
M10 x 180
|
M12 x 300
|
|||
|
|
M8 x 170
|
M10 x 200
|
M12 x 350
|
|||
|
|
M8 x 180
|
M10 x 220
|
M12 x 400
|
|||
|
|
M8 x 190
|
M10 x 240
|
|
|||
|
|
M8 x 200
|
M10 x 260
|
|
|||
|
|
|
M10 x 280
|
|
|||
|
ANSI Standard Specification
|
|
|
|
|||
|
1/4
|
5/16
|
3/8
|
1/2
|
|||
|
1/4 x 1
|
5/16 x 1
|
3/8 x 1
|
1/2 x 2
|
|||
|
1/4 x 1-1/4
|
5/16 x 1-1/4
|
3/8 x 1-1/2
|
1/2 x 2-1/2
|
|||
|
1/4 x 1-1/2
|
5/16 x 1-1/2
|
3/8 x 2
|
1/2 x 3
|
|||
|
1/4 x 2
|
5/16 x 2
|
3/8 x 2-1/2
|
1/2 x 4
|
|||
|
1/4 x 2-1/2
|
5/16 x 2-1/2
|
3/8 x 3
|
1/2 x 5
|
|||
|
1/4 x 3
|
5/16 x 3
|
3/8 x 4
|
1/2 x 6
|
|||
|
1/4 x 4
|
5/16 x 4
|
3/8 x 5
|
1/2 x 7
|
|||
|
1/4 x 5
|
5/16 x 5
|
3/8 x 6
|
1/2 x 8
|
|||
|
1/4 x 6
|
5/16 x 6
|
3/8 x 8
|
1/2 x 10
|
|||
|
|
5/16 x 8
|
3/8 x 10
|
|
|||
|
|
5/16 x 10
|
|
|
|||
|
Installation Parameters
|
|
|
|
|
||||
|
Thread
|
Nut thickness
|
Edge of a nut
|
Drill hole
|
Wrench Size
|
||||
|
M6
|
4
|
10
|
6mm
|
10
|
||||
|
M8
|
5.0-5.2
|
13
|
8mm
|
13
|
||||
|
M10
|
6.0-6.2
|
17
|
10mm
|
17
|
||||
|
M12
|
8.0-8.2
|
19
|
12mm
|
19
|
||||
Packing & Delivery
By default, our company uses the ordinary packaging, that is corrugated carton and white box. there are no any other words except the specifications and quantities on the packaging. if you have special need, we can customize the packaging mark for you. and we can provide fumigated pallets.
Company Profie
Hebei Qianmu Fastener Manufacturing Limited Company was founded in 2017, the registered capital is 3 million. Our factory locates in YongNian China, research and development, sales in one integrated manufacturing comprehensive enterprise.
Since the beginning of this century, the company has been engaged in fastener manufacturing industry, and has won widespread favor and approval registered "Hebei Qianmu Fastener Manufacturing Co., Ltd." in 2017, With many years of production and manufacturing experience, with its own galvanized factory and production factory, The implementation of multi-links strictly control, ensure the excellent quality, The annual output can be 10000 tons, ensure timely delivery. Now our main products include Wedge Anchor, Sleeve Anchor, Chemical anchor, Wood Screw, Drop in Anchor, 3/4 Fix Bolt, thread rod, nut, washer, bolt, etc.
FAQ
Q: What is the your minimum quantity of products?
A: Our MOQ is 10000 pieces.
A: Our MOQ is 10000 pieces.
Q: Do you provide samples?
A: Yes.
A: Yes.
Q: How about the quality of your product?
A: 100% inspection during production. Our products are certified to ISO9001, international quality standards.
Q: What material of the product can you supply?
A: Carbon Steel, can change according to your requirement.
Q: What's the delivery time?
A: For stock products, we can ship it within 7 days after receiving your payment. For custom order, within 24 tons, production time is 20-35 days after confirmed every details.
A: 100% inspection during production. Our products are certified to ISO9001, international quality standards.
Q: What material of the product can you supply?
A: Carbon Steel, can change according to your requirement.
Q: What's the delivery time?
A: For stock products, we can ship it within 7 days after receiving your payment. For custom order, within 24 tons, production time is 20-35 days after confirmed every details.
